Skwad LT

Skwad LT

$2,399.99
$2,399.99 $2,399.99
Sale Sold out

SKU: 34777

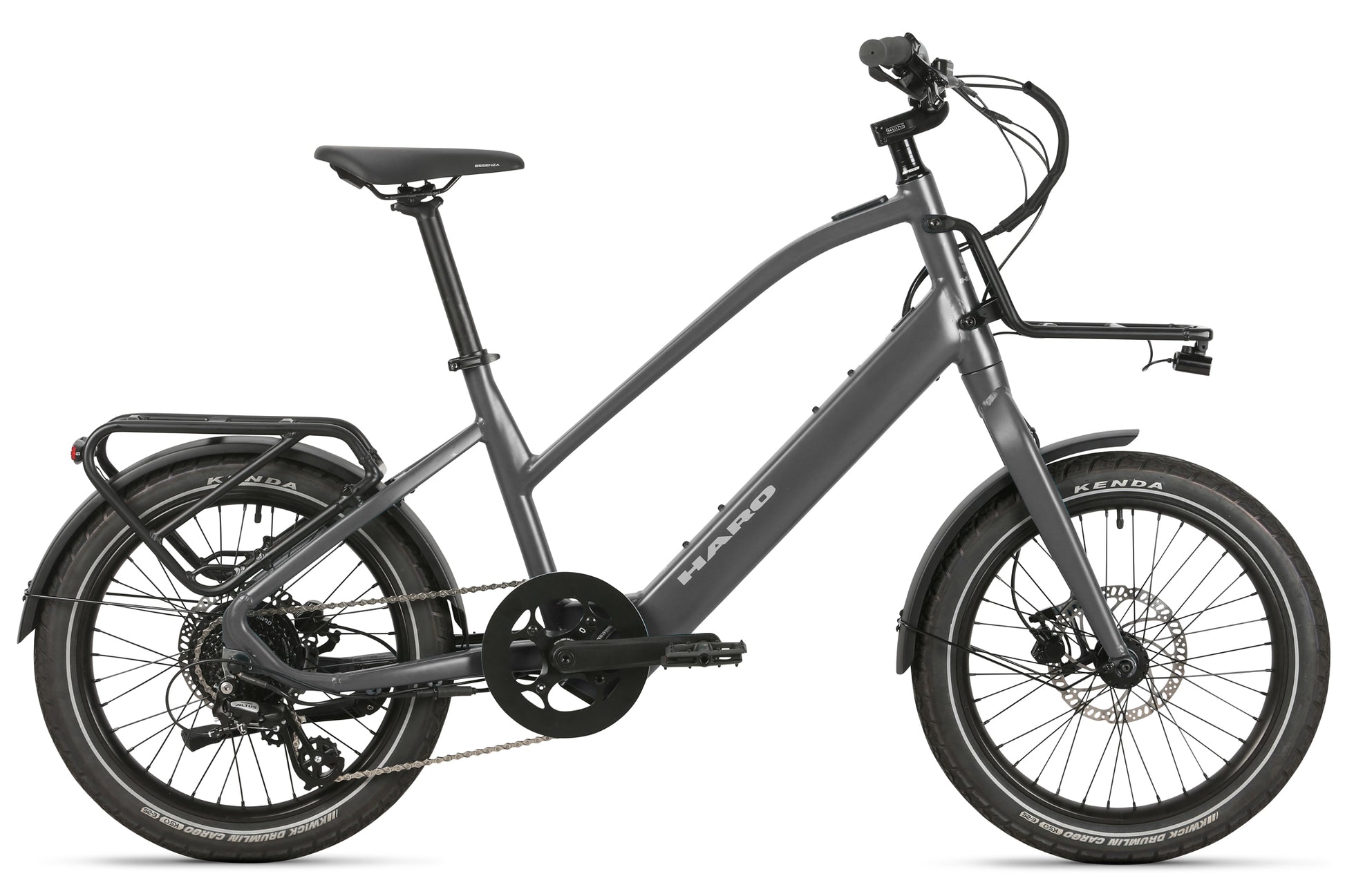

Lightweight, nimble and born for modern life. The Skwad LT features a minimalist, compact frame design that makes it the perfect E-bike for travel. Pedal-assist with a 250 Watt motor and a slim, in-tube UL Certified battery for a low center of gravity and improved stability. 20-inch wheels allow it to easily tuck into smaller spaces when it's time to load it up or park it. The Rider's App is your personal connection to the bike, with a wide range of features including a navigation system that coordinates battery capacity in regards to routes, as well as bike status, weather alerts, diagnostics and more. Outfit your Skwad LT with an assortment of baskets, crates and bags using the built-in, compatible AtranVeloSystem (AVS) mounts. Good to go--everywhere.

OWNERS MANUAL

SKWAD LT Owners Manual

APP DOWNLOAD

Download the Rider's App

Use the app to connect your Skwad LT to the app. The app offers a wide array of features, including weather notification, battery capacity, bike status, diagnostics, assistance mode, navigation, home page, and your personal profile. The app will collect information about your total mileage, average speed, and riding history record. The navigation feature includes a map function, route suggestion, estimated time of arrival (ETA), and will calculate for battery capacity in regard to selected route to make sure you have enough battery capacity for the ride.

Color

View full details

FEATURES

  • 250 W rear hub motor with dual-sided torque sensor.
  • 20 MPH top assisted speed
  • 28 Mile Range

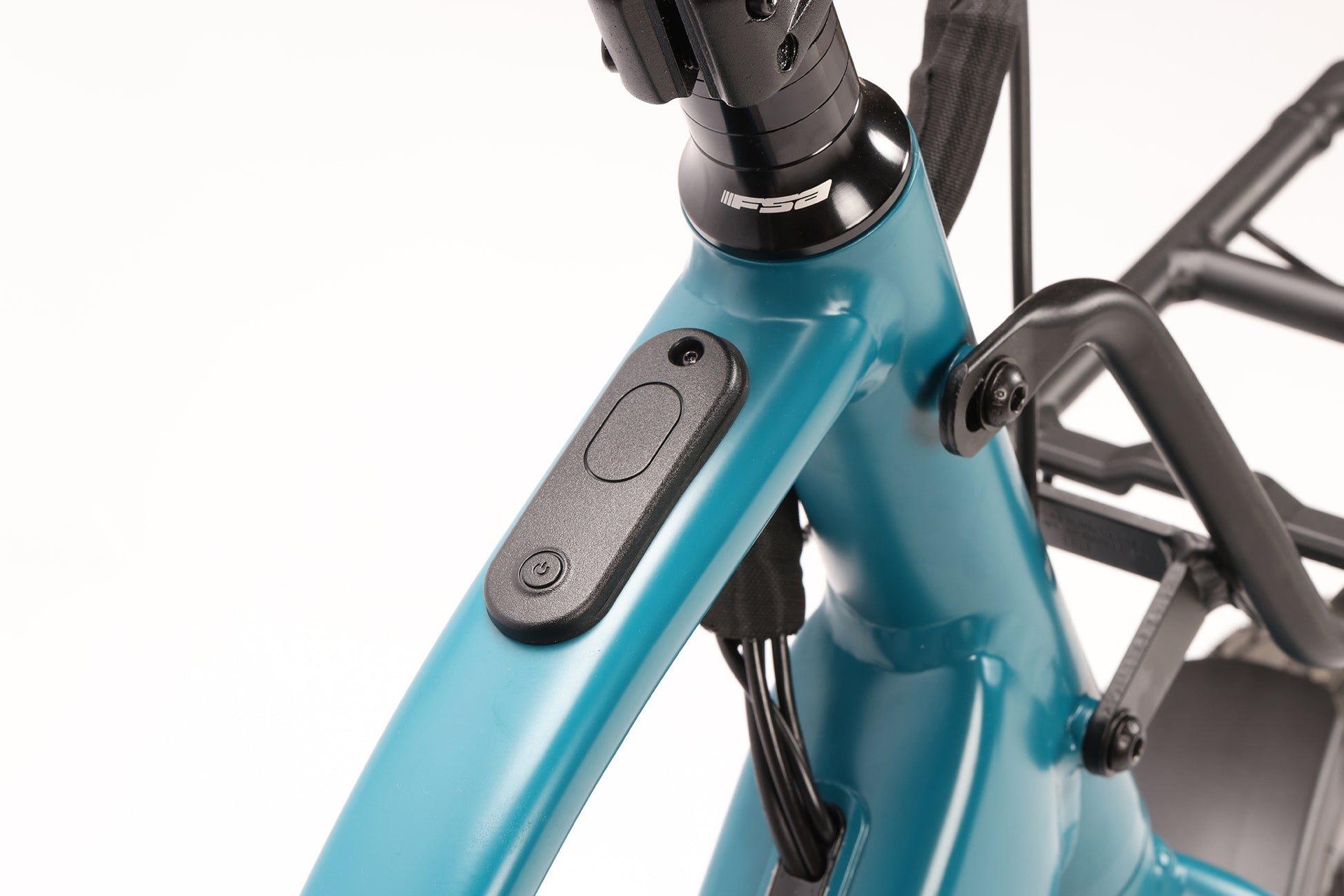

  • Slim In-tube Battery. UL Certified
  • Shimano Altus 8-speed
  • Selle Royal Essenza saddle
  • Dual-piston hydraulic brakes with motor shut-off
  • Front Light: Lezyne Micro Drive 500, Rear Light: Lezyne super bright alert

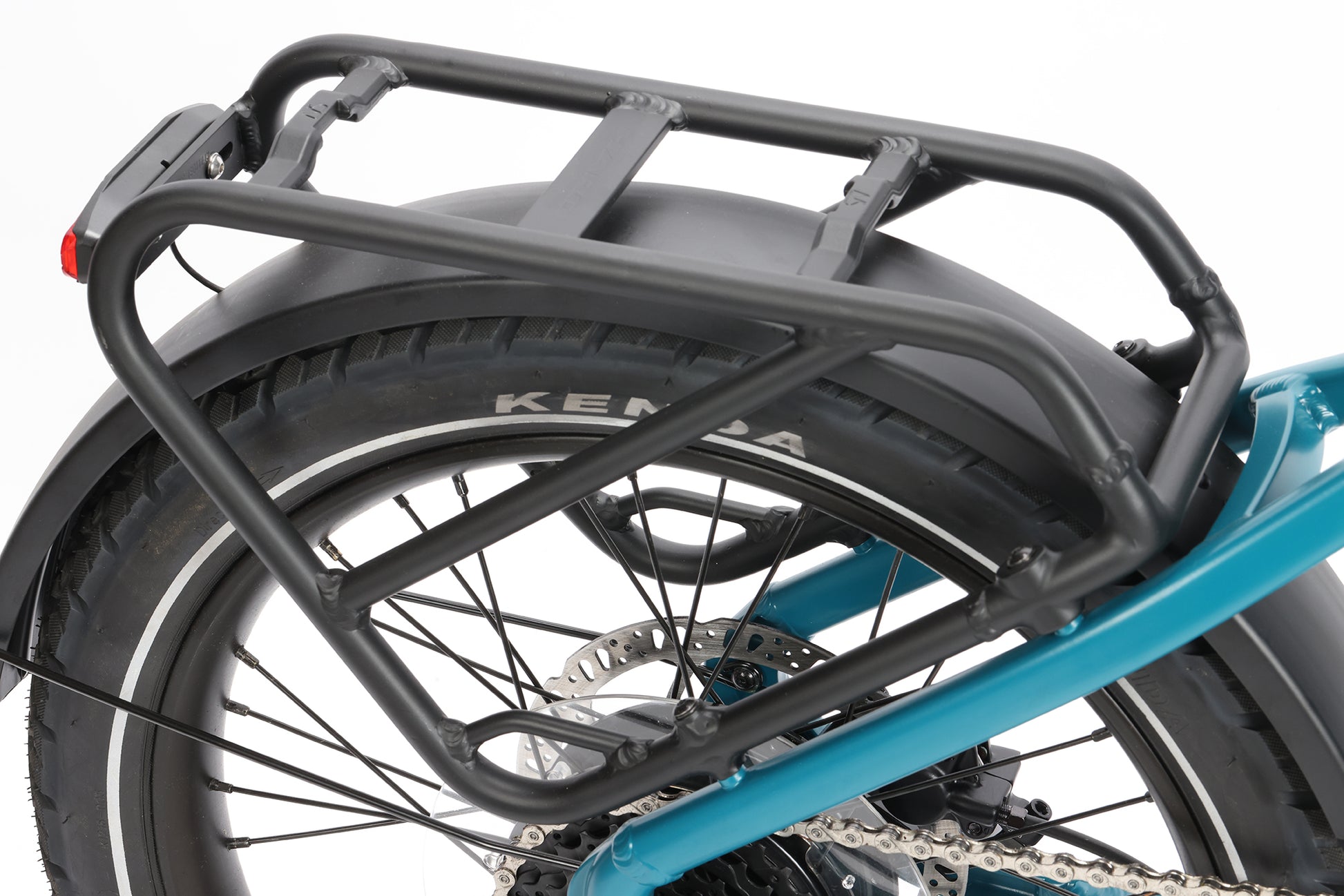

  • AtranVeloSystem (AVS) front and rear racks
  • Haro Baseline Stem
  • Haro 2-PC 3" MX Bar
  • Bluetooth App with Navigation
  • Weight: 50 lbs
  • Ebike classification: Class 1, 250W/20MPH

COMPATIBLE ACCESSORIES

SPECIFICATIONS

FRAMESET
FrameHaro Skwad LT 6061-T6 heat-treated aluminum
Fork6061-T6 heat-treated aluminum
ColorsAtlantic Blue, Matte Charcoal
Weight50 lbs
DRIVETRAIN
CranksForged aluminum 170mm. 48T alloy chainring with guard
PedalsNylon 9/16"
ChainKMC X8
Bottom BracketEuro
Front DerailleurN/A
Rear DerailleurShimano Altus 8-speed
Derailleur ShifterShimano Altus 8-speed with window
Freewheel/CassetteShimano 8-speed Cassette 12-28T
Drive Unit250W hub motor with dual-sided torque sensor. Class 1, 250W/20MPH
Battery36V; 300w; In-tube battery. UL Certified
WHEELS
TiresKenda Drumlin Caro 20"x2.4"
Wheels/Rims20" Alloy 36-hole. Double-wall. Disc specific
Front HubAlloy sealed bearing with 3/8" axle. Female bolts
BRAKING SYSTEM

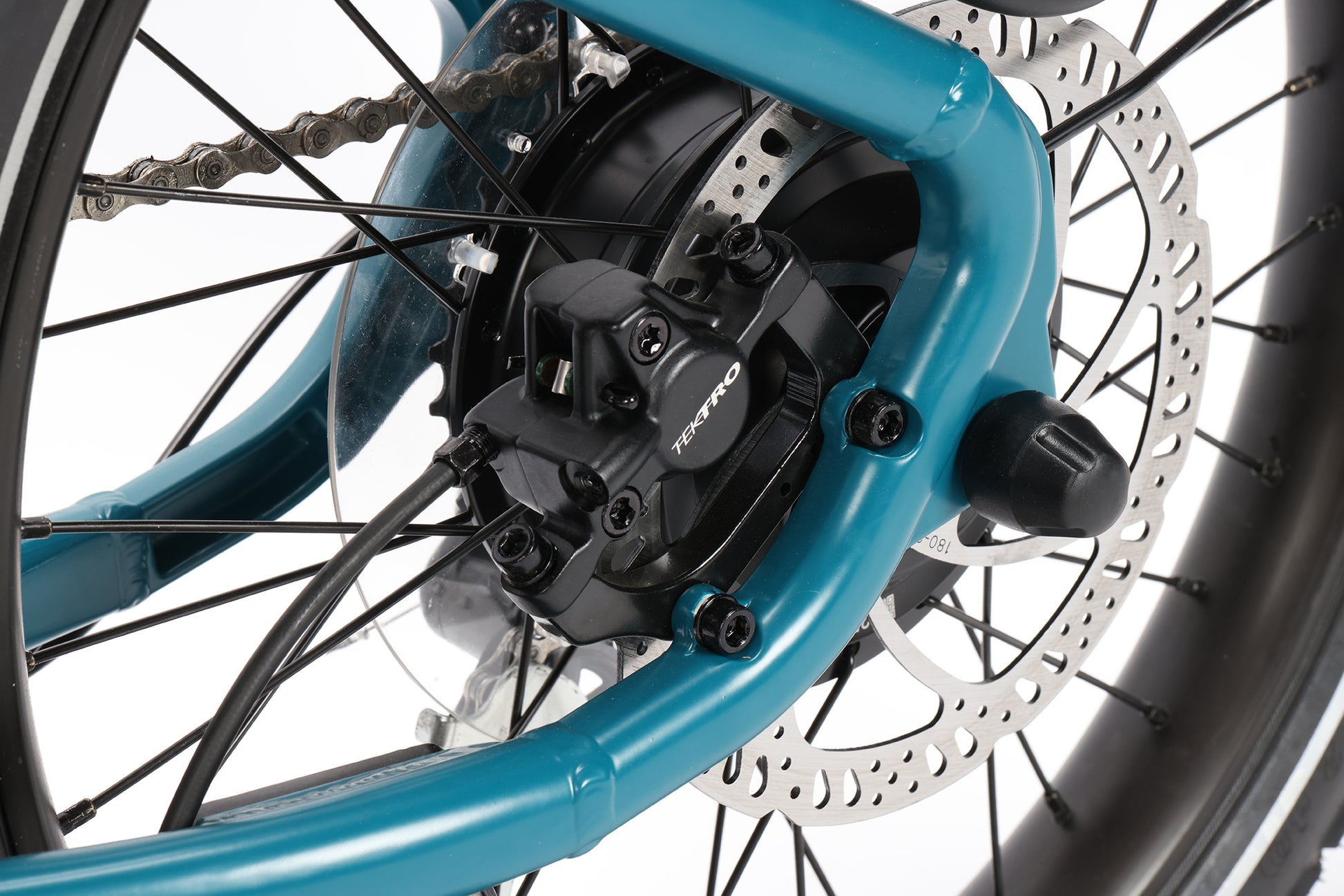

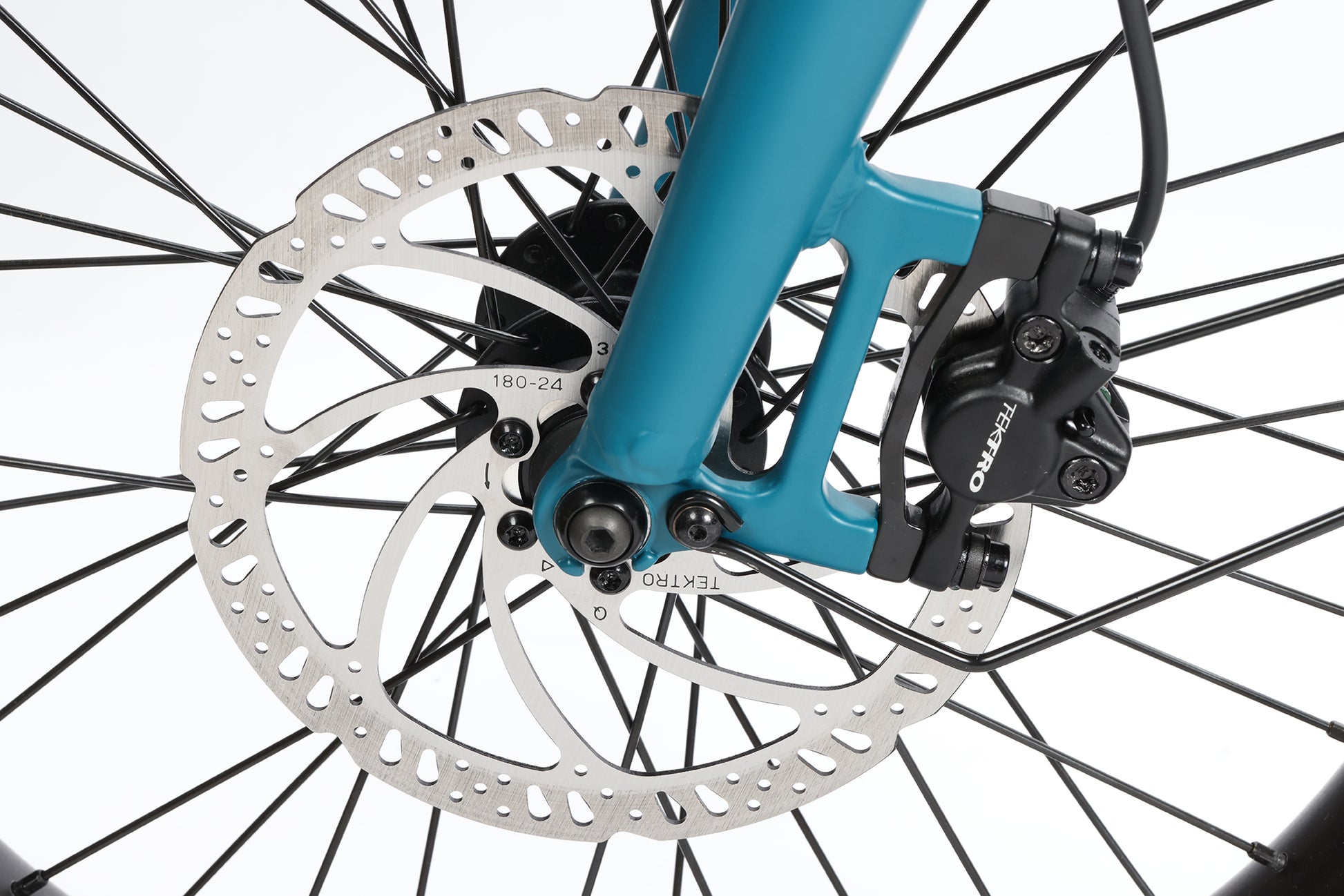

BrakesTektro two-piston with motor cut-off
Brake LeversTektro with cut-off
OTHER COMPONENTS
Grips/TapeLock-on Ergo Kraton Rubber

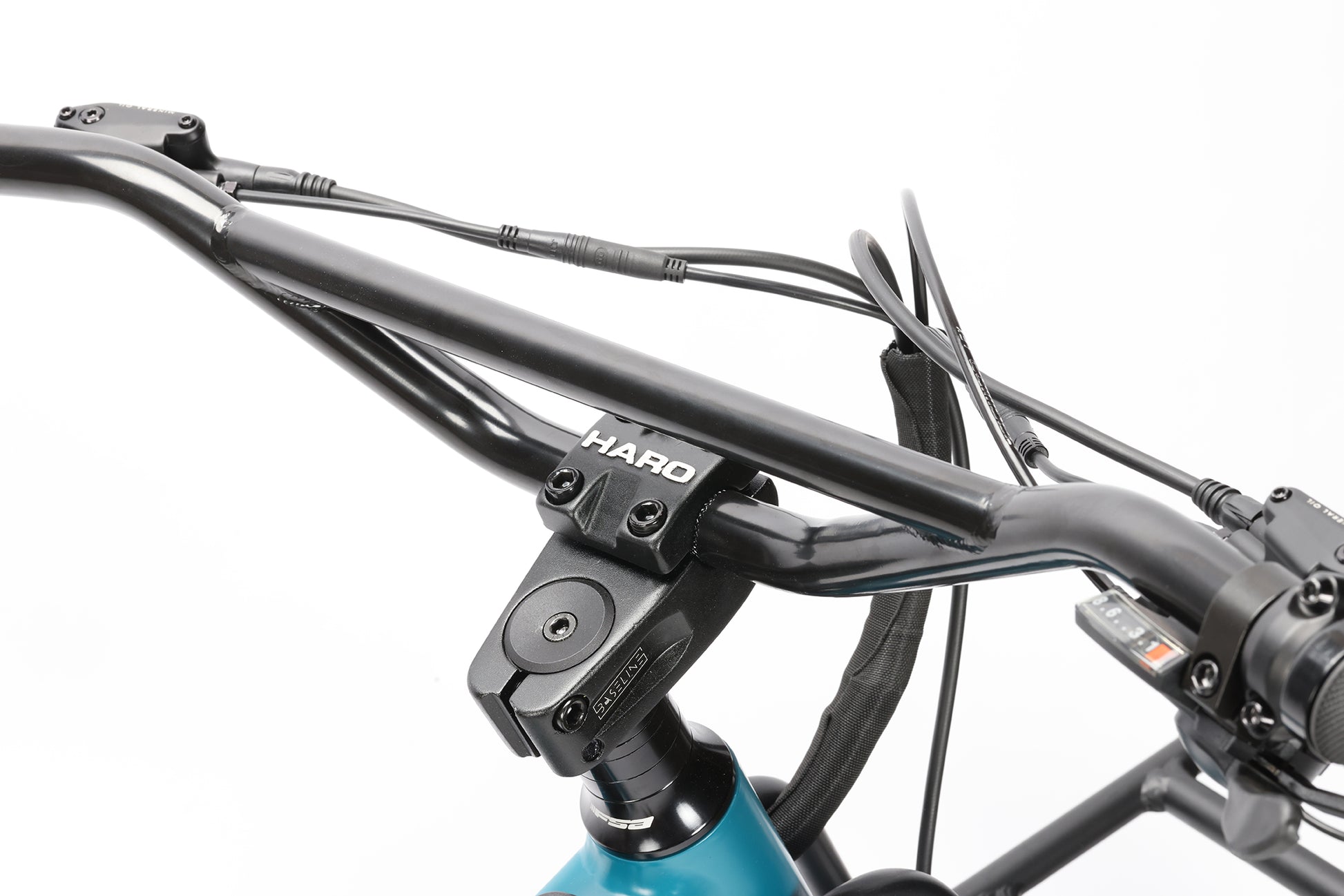

HandlebarHaro 2-pc. 3" Rise. 760mm wide. 2° up sweep
StemHaro Baseline. 48mm reach
Headset1-1/8" integrated
SaddleSelle Royal Essenza
Seat Post31.6mm micro-adjust aluminum
ExtrasPhone App ready For E System, AtranVeloSystem (AVS) front and rear racks, Front Light: Lezyne Micro Drive 500, Rear Light: Lezyne super bright alert.

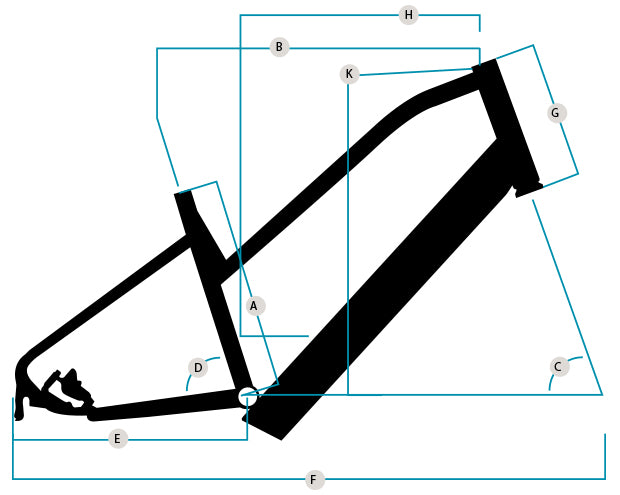

GEOMETRY

A. Seat Tube (C-T)360mm
B. Top Tube (Effective)618mm
C. Head Angle70°
D. Seat Angle72.3°
E. Chainstay400mm
F. Wheelbase1090mm
G. Head Tube Length250mm
H. Reach425mm
Fork Height (A-C)410mm
Fork Offset40mm

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
