Mini

Mini

$599.99
$599.99 $599.99
Sale Sold out

SKU: 24527

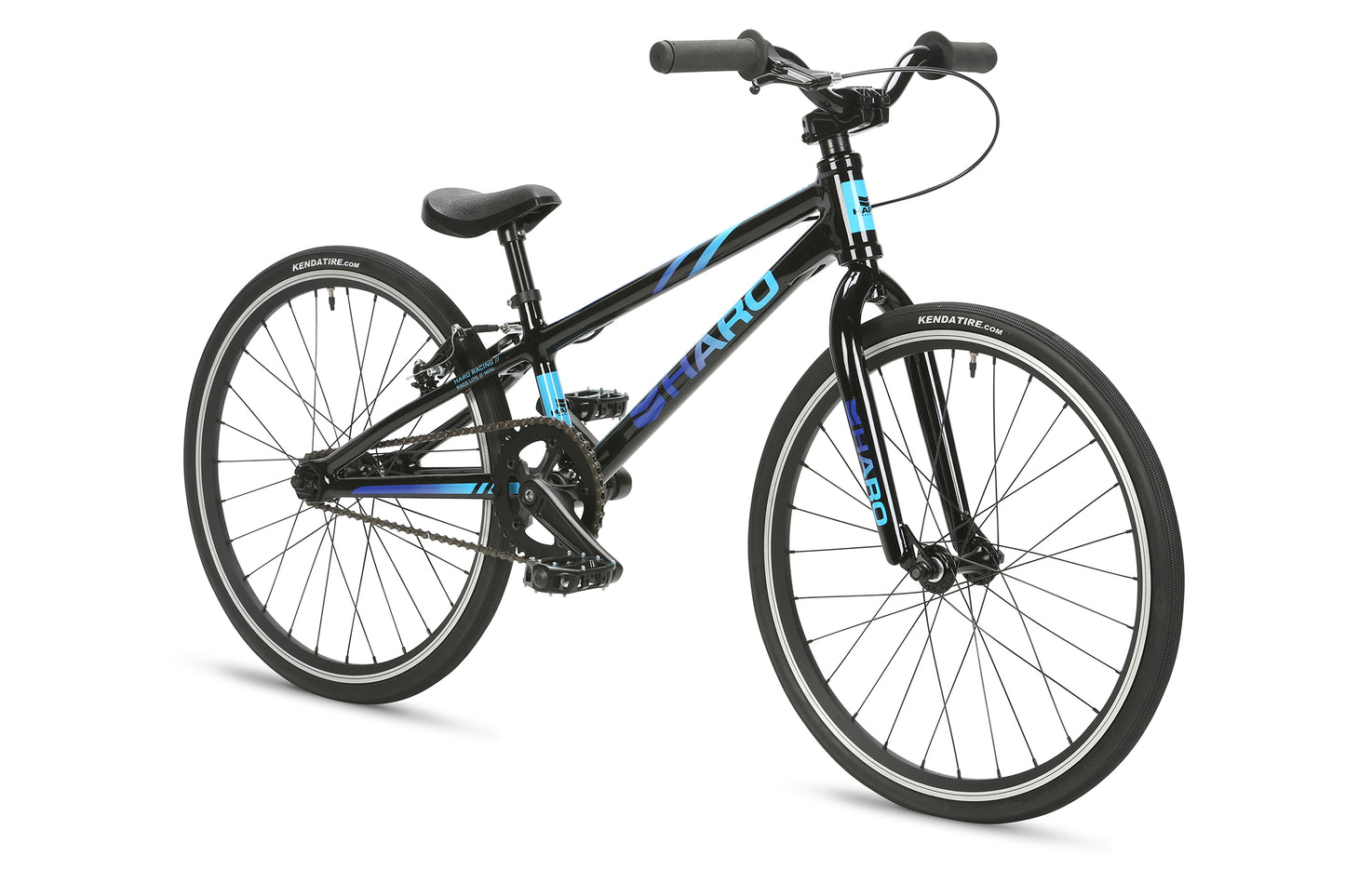

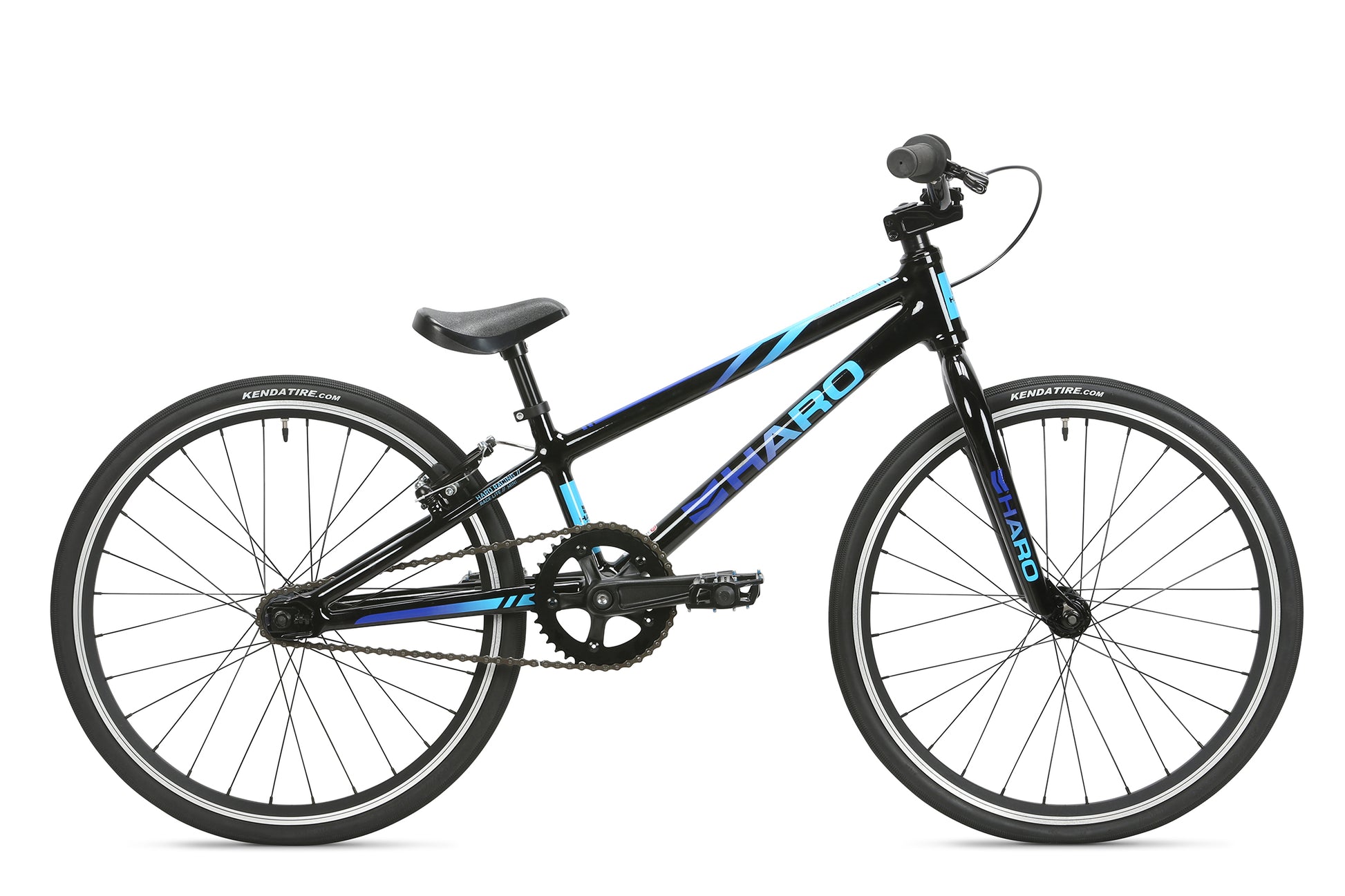

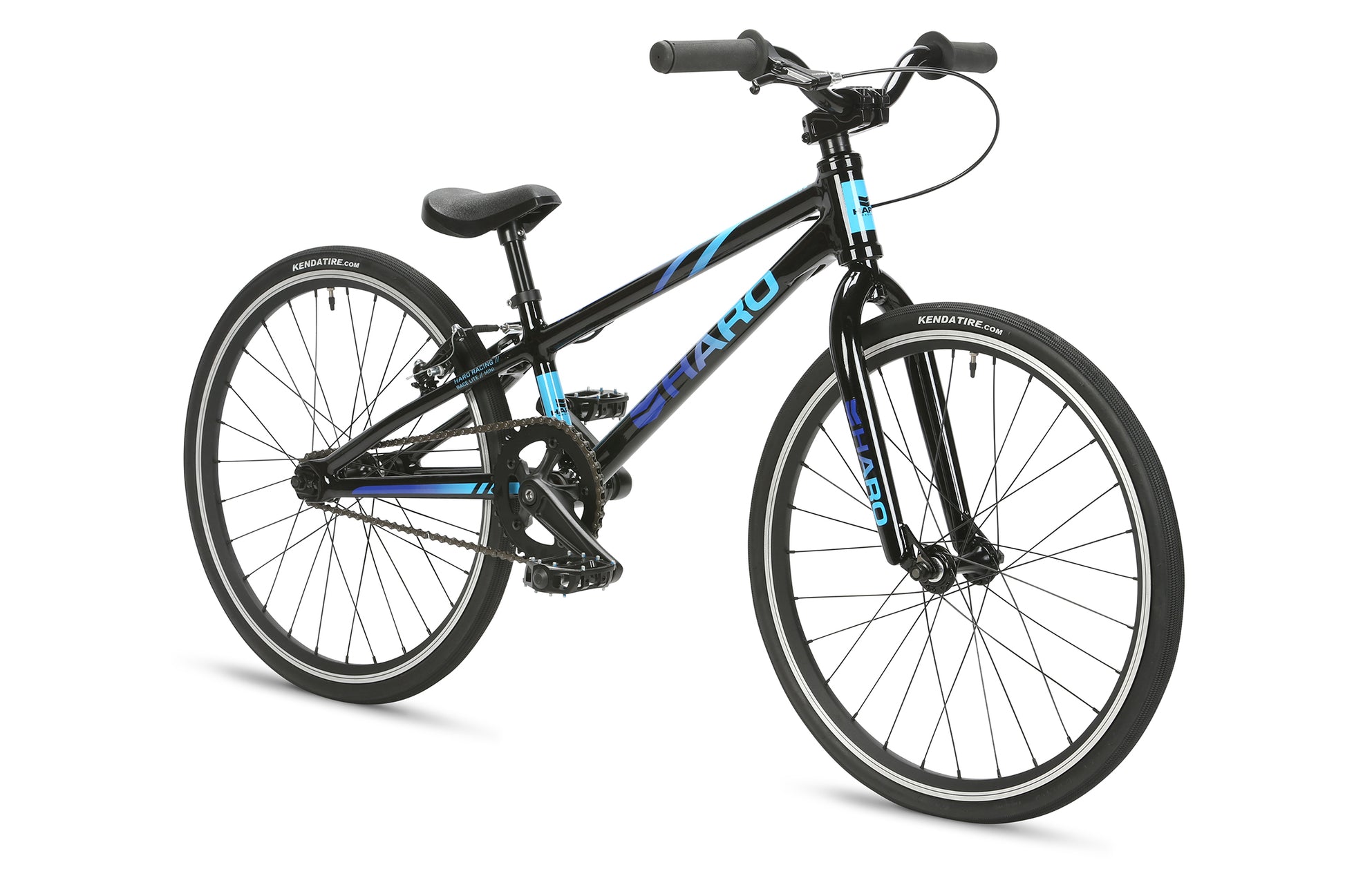

The Race Lite Mini is designed around a 6061 alloy frame with race specific geometry and a 17.75" top tube length that fits little riders just right. 20 X 1-1/8" sealed alloy wheel set. Scaled-down 3-piece 130mm alloy race cranks for minimal resistance for maximum power from little legs.

Size Chart

SizeInchesCM
204' - 4'5"

Color

View full details

FEATURES

  • 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners
  • Full chromoly 1" with threadless steerer tube
  • 3-pc forged 130mm alloy cranks with sealed BB
  • 20" Alloy 28h, double-wall rims
  • Kenda "Kompact" tires 20 x 1 1/8"

BIKE SPECS

FRAMESET
Frame6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 17.75" top tube length
ForkFull Chromoly 1" Threadless Steerer
ColorsBlack
DRIVETRAIN
Cranks3-pc Forged Alloy - 130mm - 38t Alloy Chainring
Bottom BracketSealed Bearing Square Taper
Sprocket38t Alloy Chainring
Gearing38/14
PedalsMini Alloy DX, 9/16"
ChainKMC Z33 1/2 X 3/32"
Cassette14t cassette
WHEELS
TiresKenda "Kompact" 20 x 1 1/8"
Front Hub28h Alloy sealed bearing
Rear Hub28h Alloy sealed bearing, 14T cassette
Rims20" Alloy 28h, Double Wall
BRAKING SYSTEM
BrakeTektro V-Brake
Brake LeverTektro two finger
OTHER COMPONENTS
GripsMini Micro-Knurl Grip
HandlebarHaro Mini Alloy Bar, 2" Rise
StemForged Alloy Top-Load, 45mm Ext.
Headset1" Semi-Sealed Threadless
SeatOne-piece Mini seat/post combo
Seat PostAlloy, 22.2mm
Seat Post ClampAlloy, 25.4mm

GEOMETRY

  • Geometry frame chart
  • SizeA. Head AngleB. Seat AngleC. Top TubeD. Seat TubeE. ChainstayF. BB HeightG. Stand Over
    2072°71°17.75" (447.7mm)8.3" (212mm)13.3" (339mm)11" (280mm)18.5" (469.9mm)

HARO FACTORY RACE PARTS

View all

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
