Leucadia DLX

Leucadia DLX

$419.99
$419.99 $419.99
Sale Sold out

SKU: 22265

The Leucadia DLX has all the bells and whistles. Comes with front and rear brake, four pegs and a gyro system for that Nyquist inspired rider. Perfect bike to ride to school or hit up the local park or pump track. Comes with Haro's own custom design Cr-Mo 3-Piece tubular cranks and sprocket, as well as the new Haro 2.4" La Mesa tires Team grips and Topload molded stem
Color
Size

View full details

Features

  • Hi-ten frame with 18.5" or 20.5" top tube
  • Full hi-ten fork with tapered legs

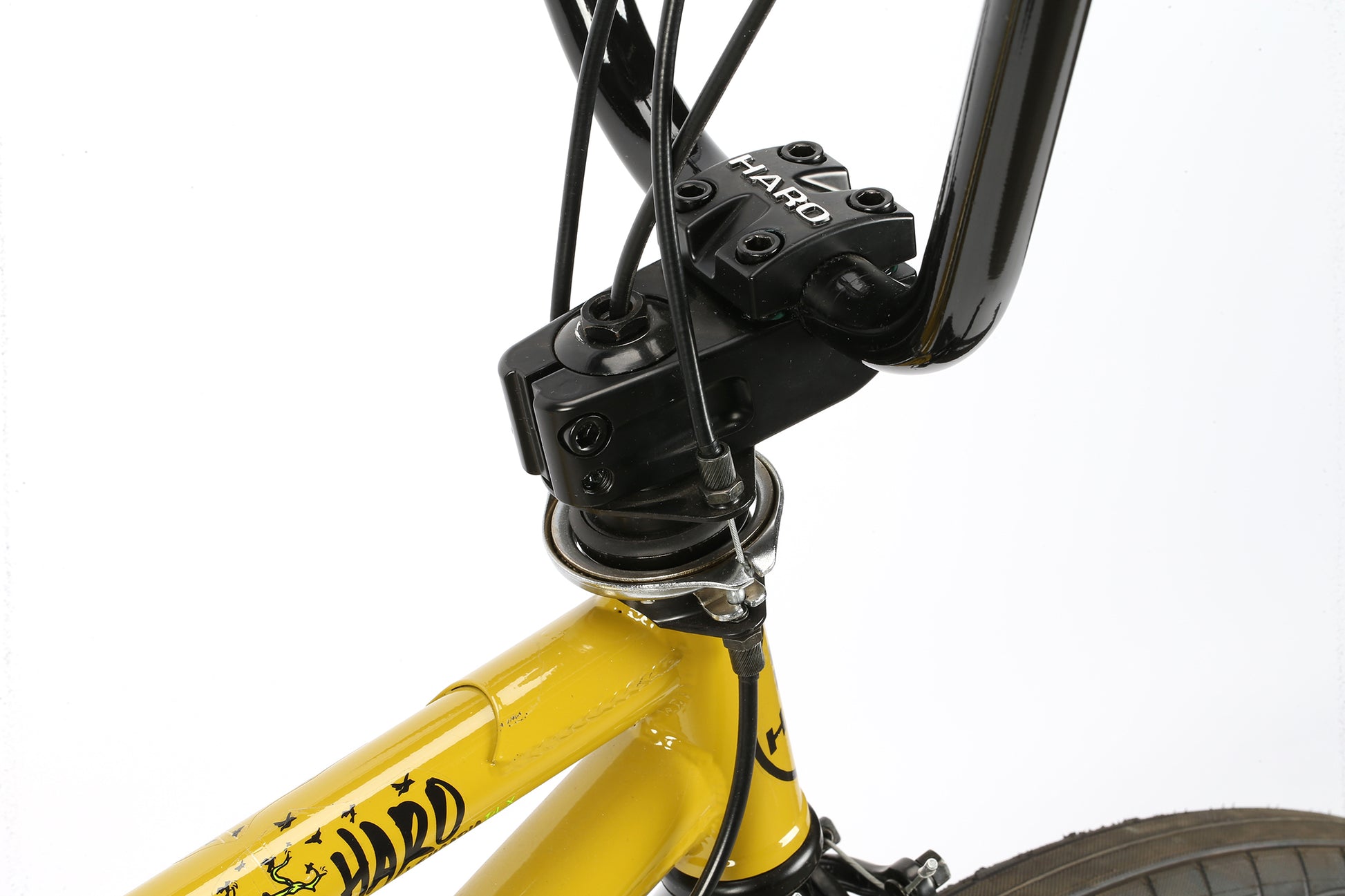

  • Hi-ten bars 8.5" with Haro 1978 alloy top load stem
  • Haro 1978 3-piece chromoly 8-spline 165mm (on 18.5") or 170mm (on 20.3") cranks with loose ball USA BB
  • 25/9 gearing with sealed bearing 9T driver
  • Haro Baseline 48mm Forged stem
  • Haro MS5 20X2.35 Tire
  • Haro Team grips

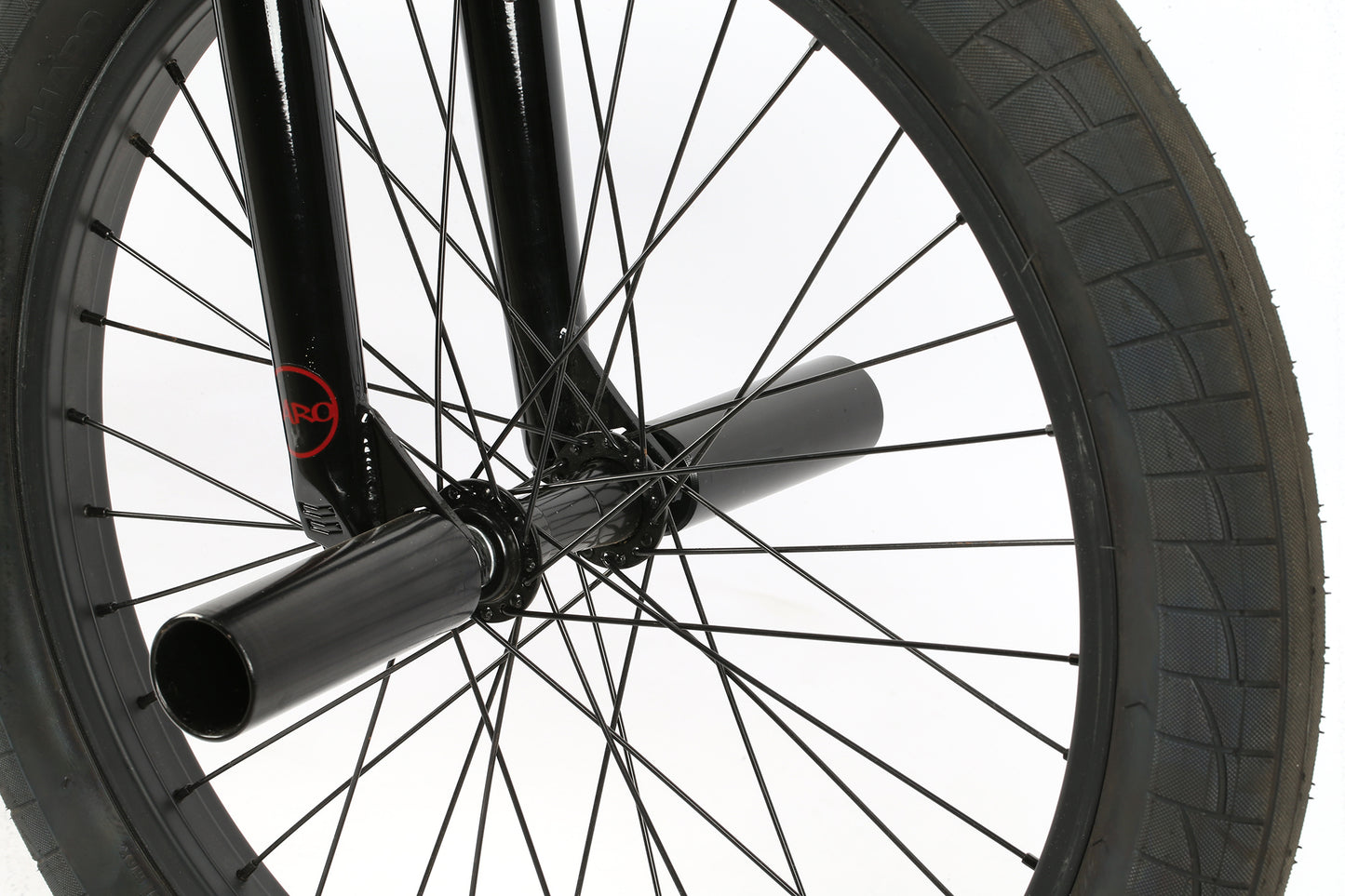

  • Four pegs, front 990 brakes and Gyro

Specifications

FRAMESET
FrameSteel Frame w/ 1-1/8" Headtube, 990 Brake Mounts & 14mm Axle Drop-outs
ForkSteel 1-1/8" Thredless w/ 990 Brake Mounts & Tapered Legs

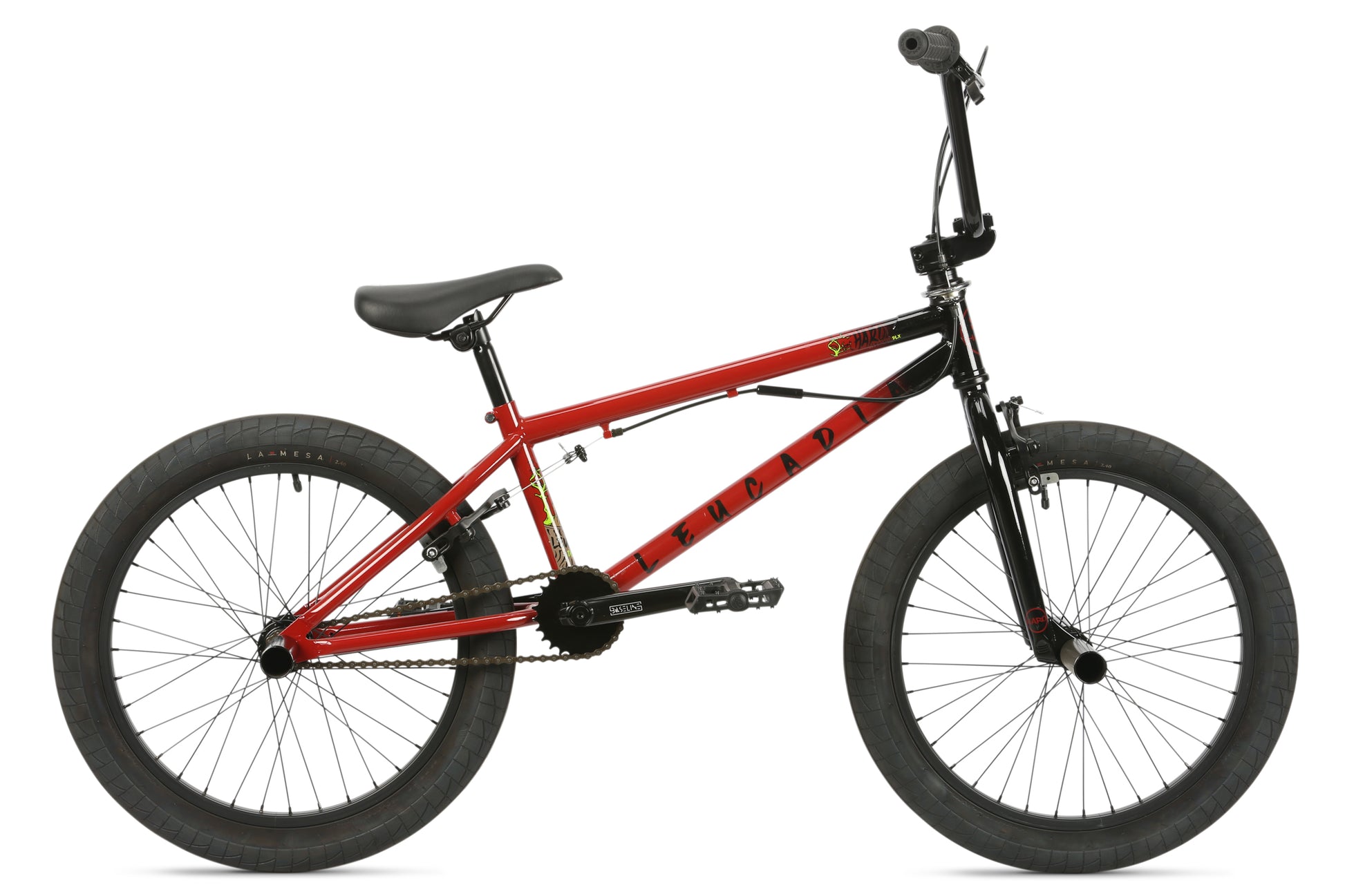

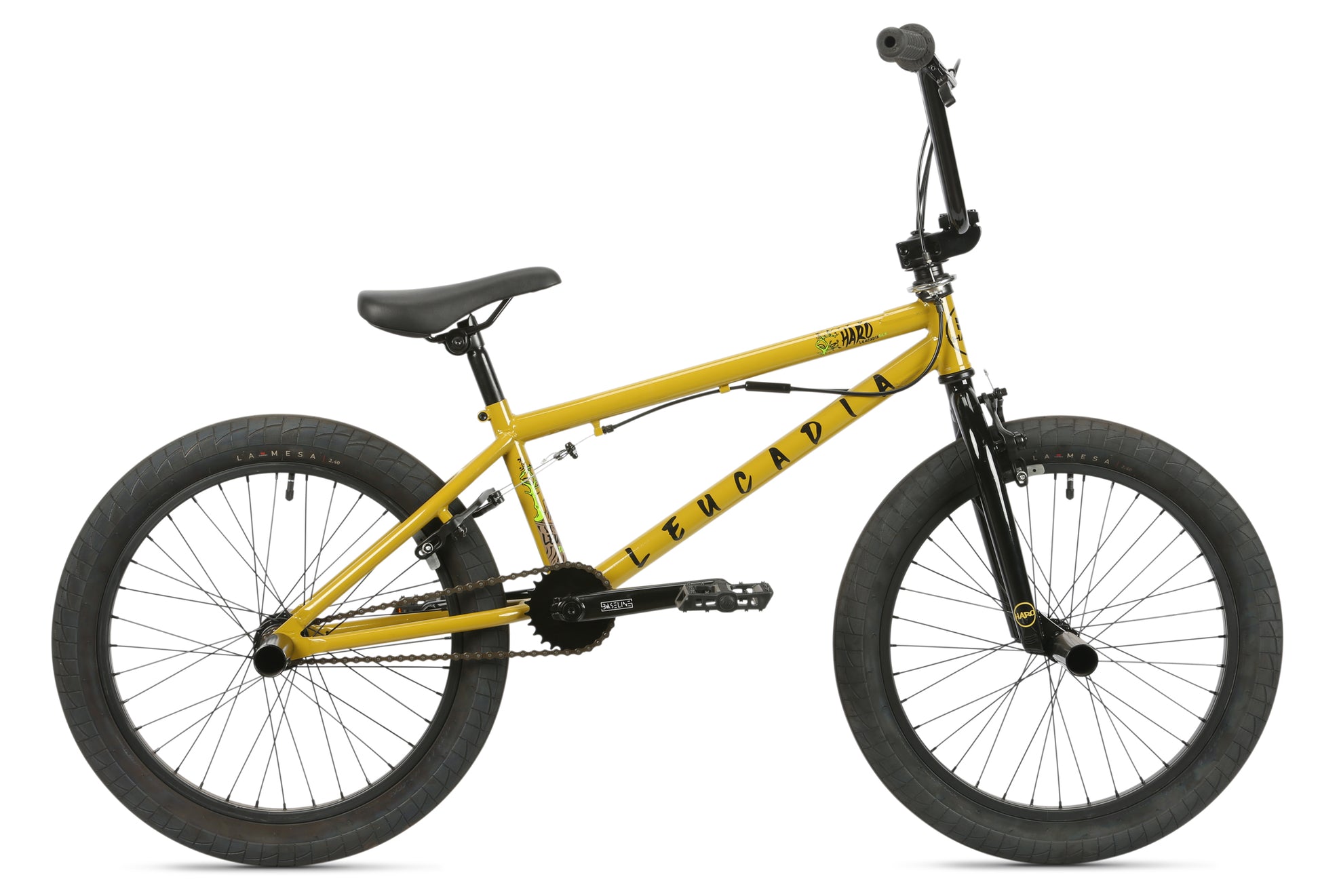

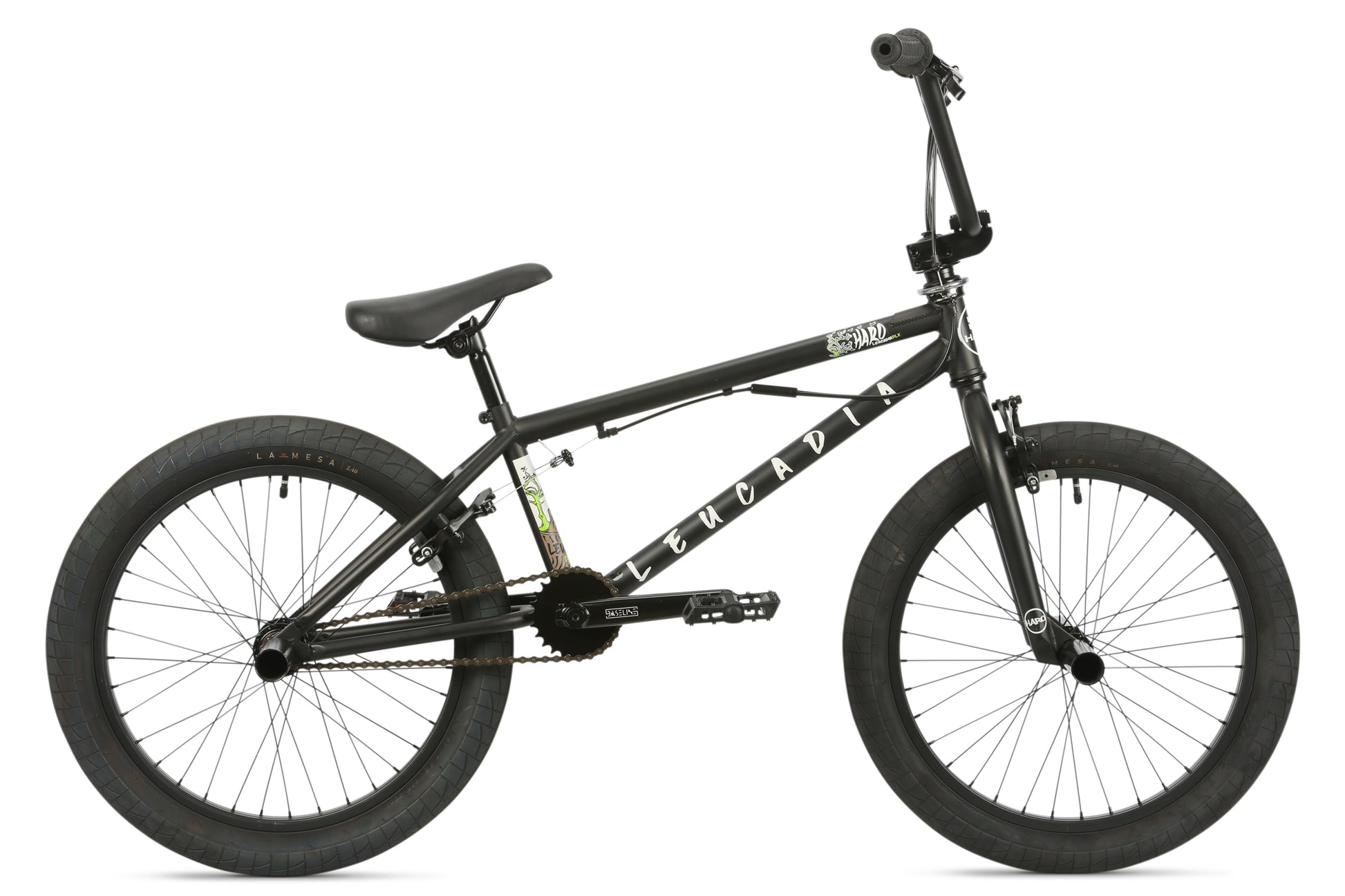

ColorsMatte Black, Honey Mustard, Black/Red
DRIVETRAIN

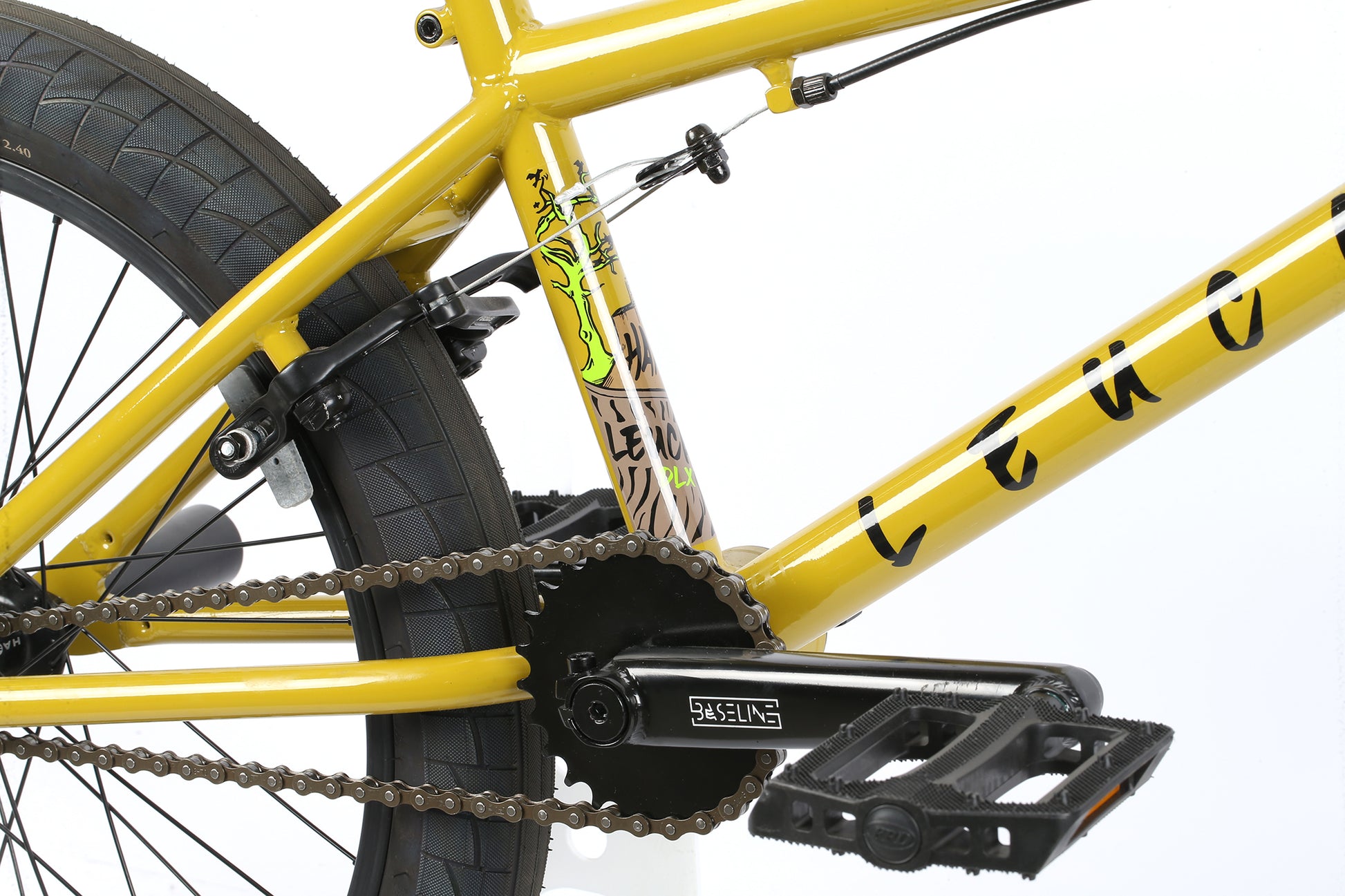

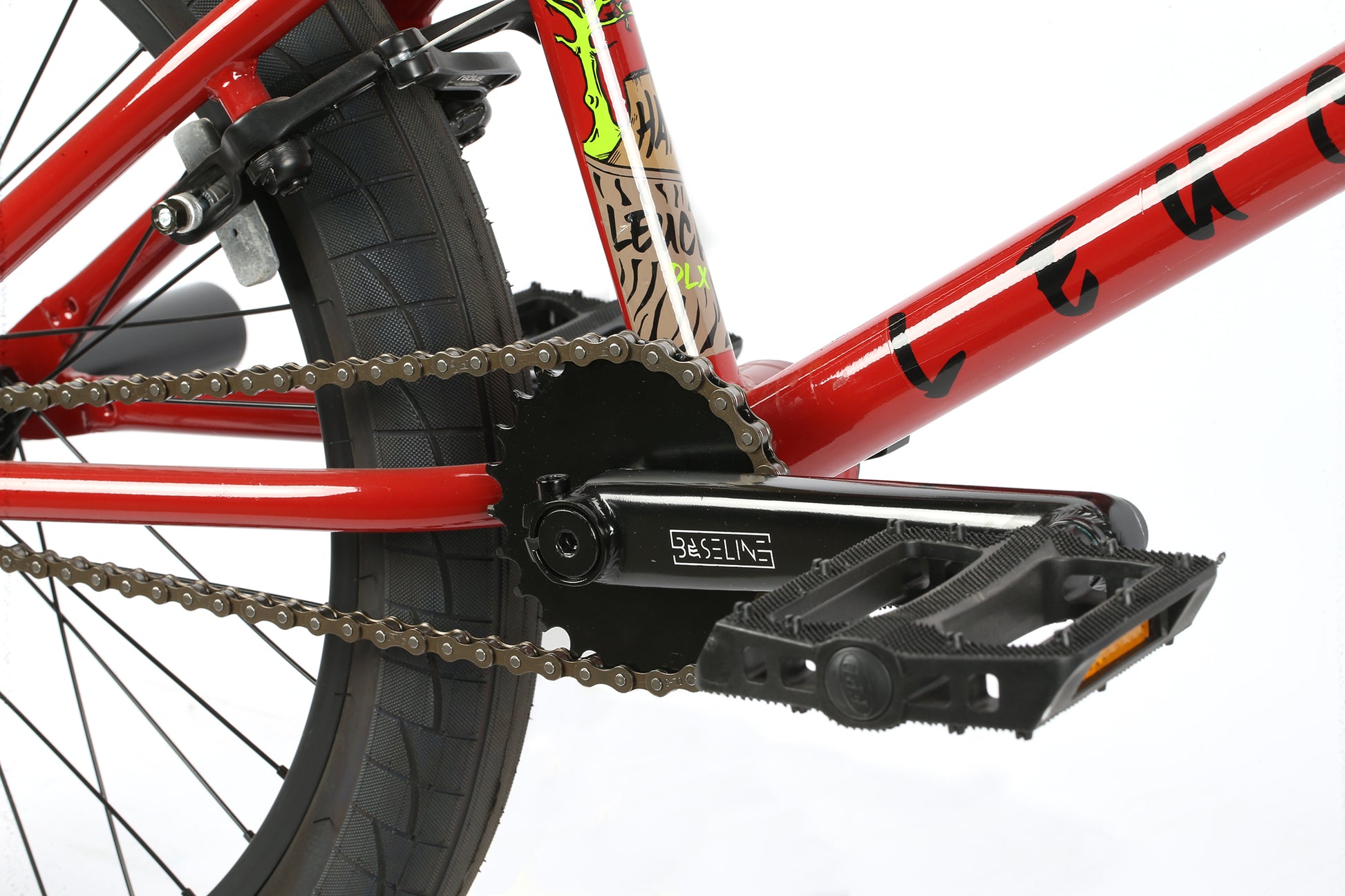

CranksHaro Baseline 3-pc Cr-Mo 8 Spline 165mm / 170mm - 25t Steel Chainring
Bottom BracketAmerican
SprocketSteel Chainring
Gearing25/9
PedalsPoly Platform, Cr-Mo 9/16" Axle
ChainBaseine Chain
Cassette9t Driver
WHEELS
TiresHARO MS5 20 x 2.3"
Front Hub36h Steel Front
Rear HubAlloy 9t Semi-Sealed Cassette Rear
Rims20" Alloy 36h, Single Wall
BRAKING SYSTEM

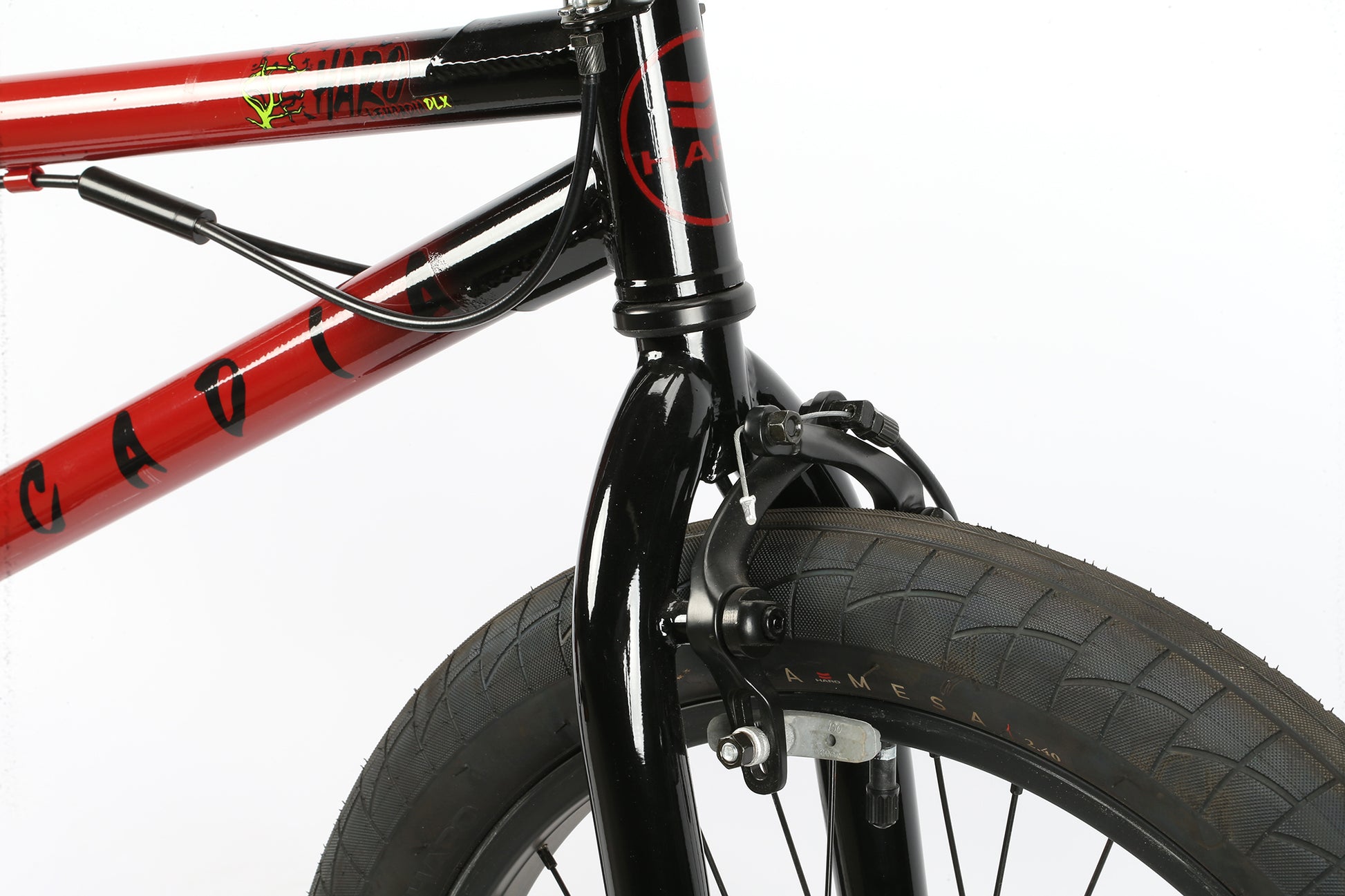

BrakeRadius Alloy 990 U-Brake Front & Rear w/ GYRO
Brake LeverHaro Baseline Two Finger
OTHER COMPONENTS
GripsHaro Team Grip

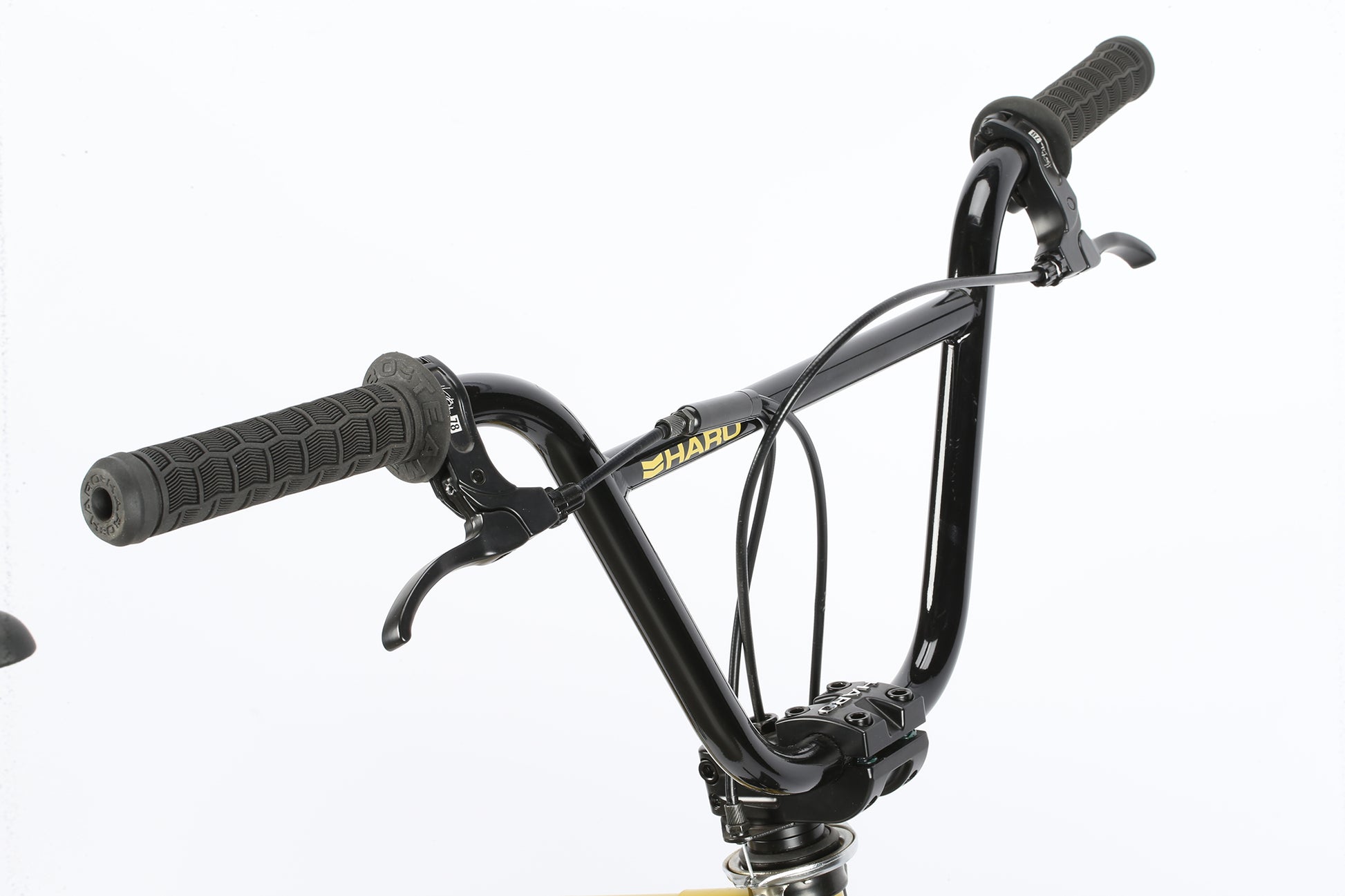

HandlebarHaro Steel Bar, 8.5" Rise

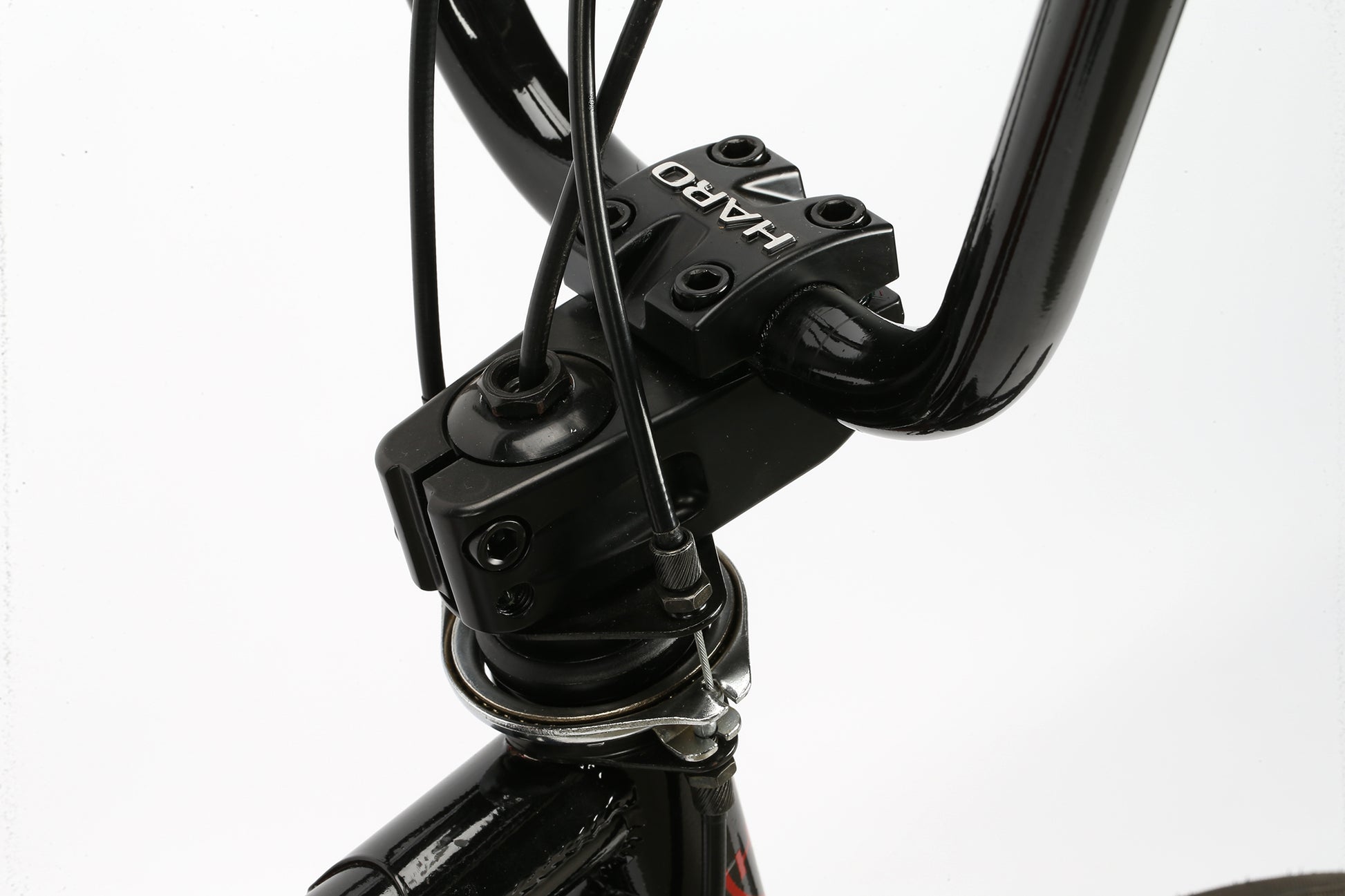

StemHaro Baseline 48mm Reach
Headset1-1/8" Threadless

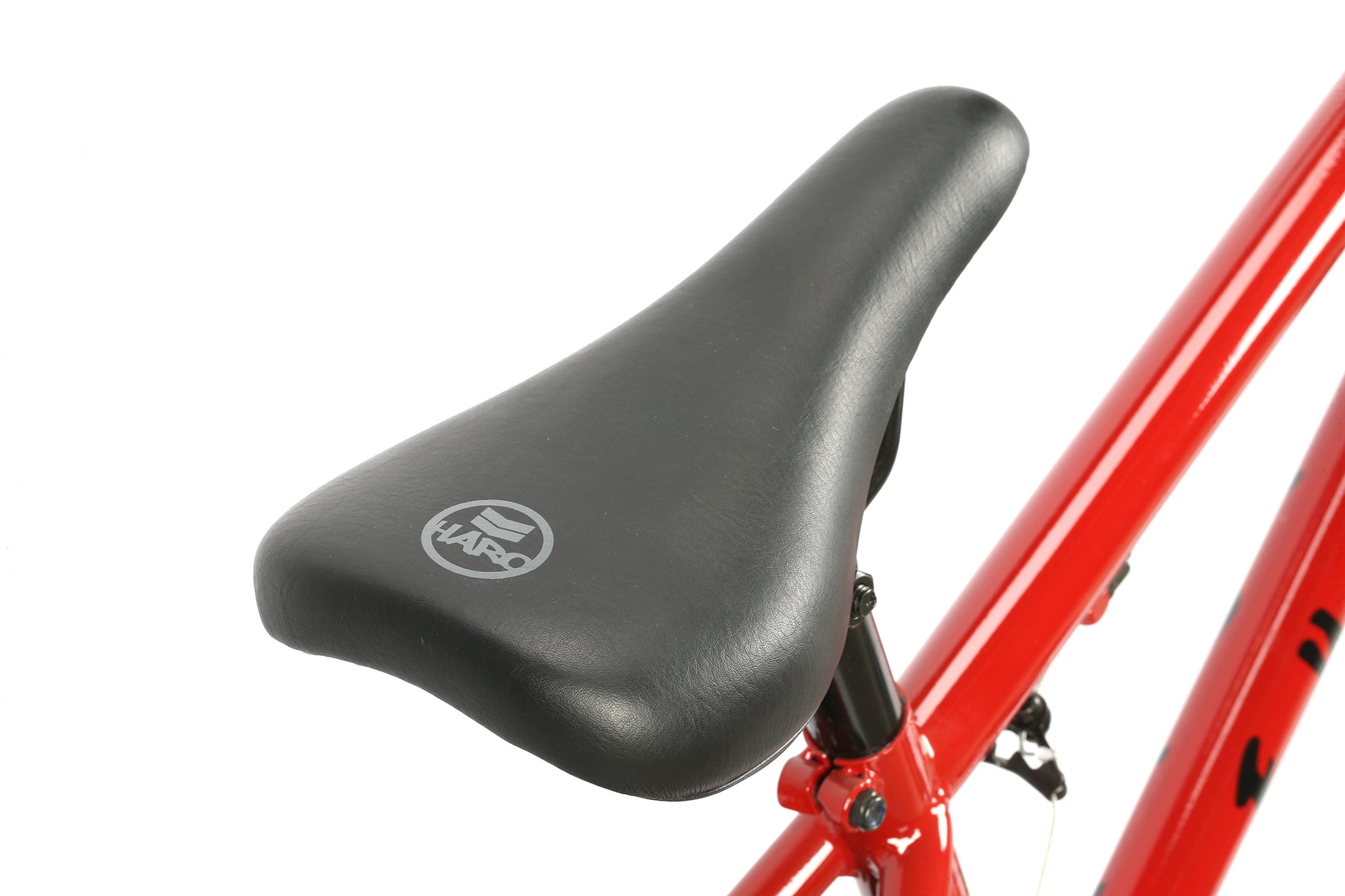

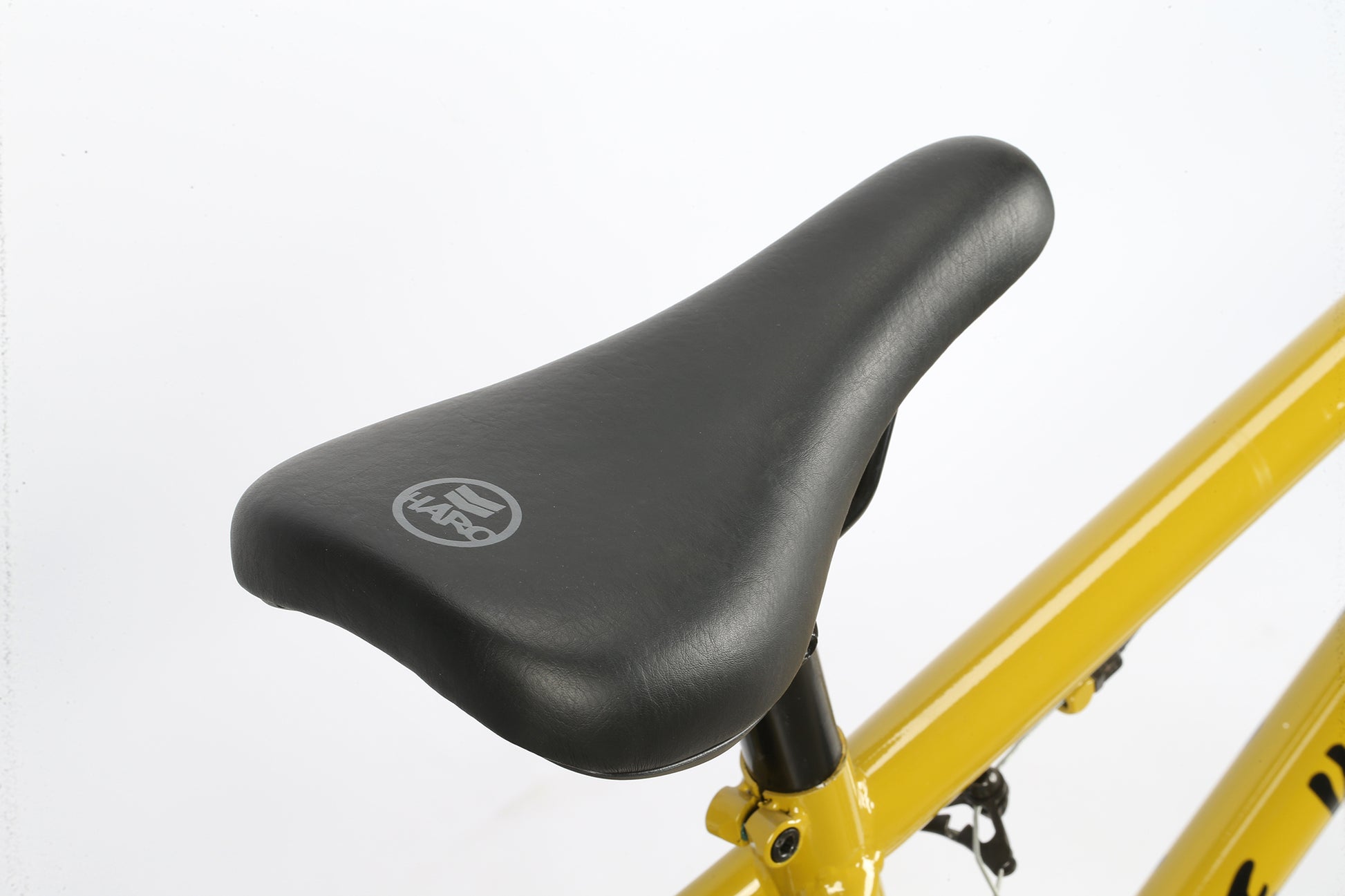

SeatHaro Padded Adjustable
Seat PostSteel 25.4mm
Seat Post ClampIntegrated

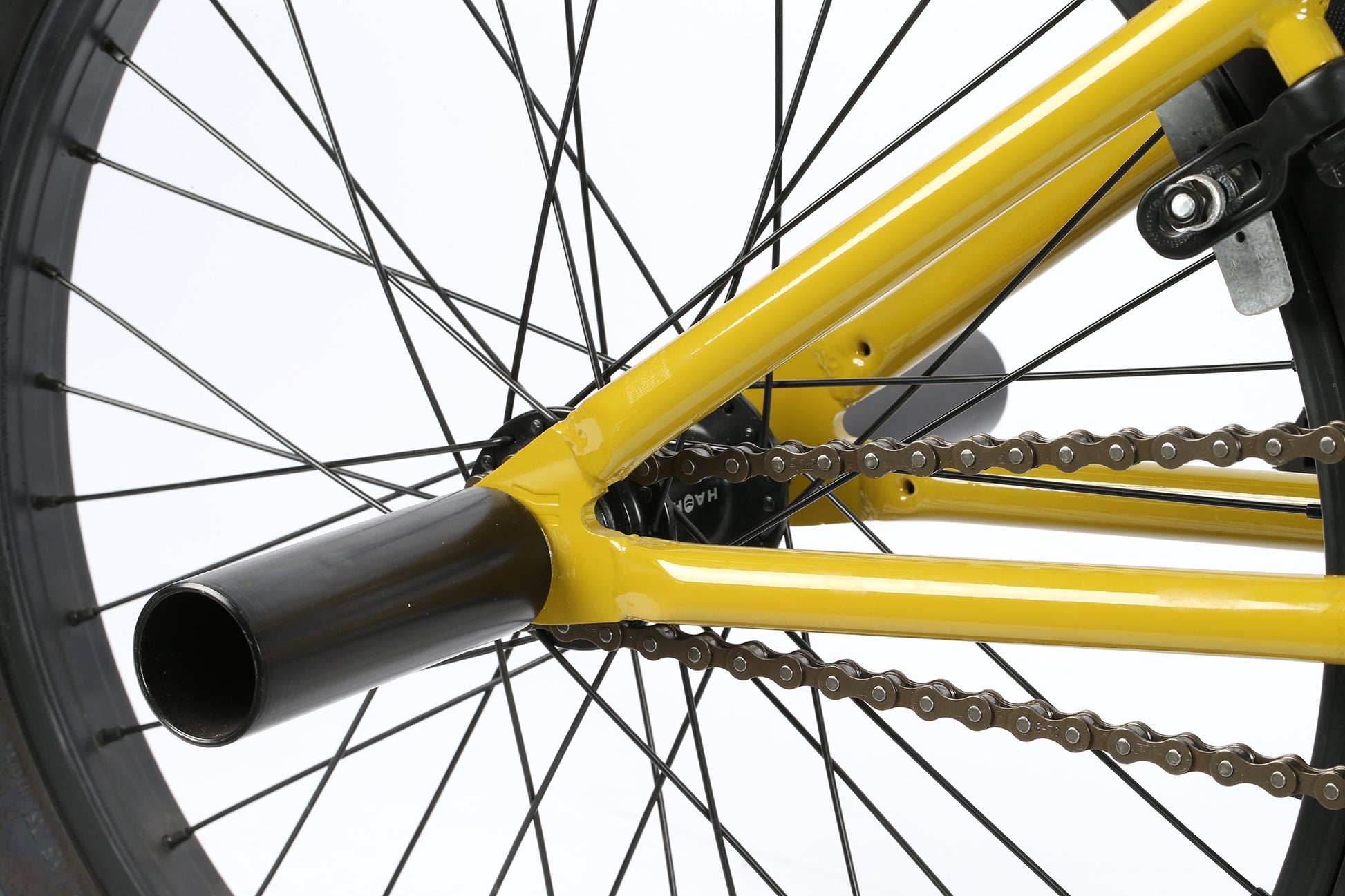

Pegs4-Pegs Steel
Extras4-Pegs Steel

GEOMETRY

  • Geometry frame chart
  • SizeA. Head AngleB. Seat AngleC. Top TubeD. Seat TubeE. ChainstayF. BB HeightG. Stand Over
    18.574.5°70°18.5" (470mm)10.2" (260mm)13.7" (349mm)11.5" (293mm)21.5" (546mm)
    20.574.5°70°20.5" (520mm)10.2" (260mm)13.7" (349mm)11.5" (293mm)21.5" (546mm)

COMPATIBLE UPGRADES

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
