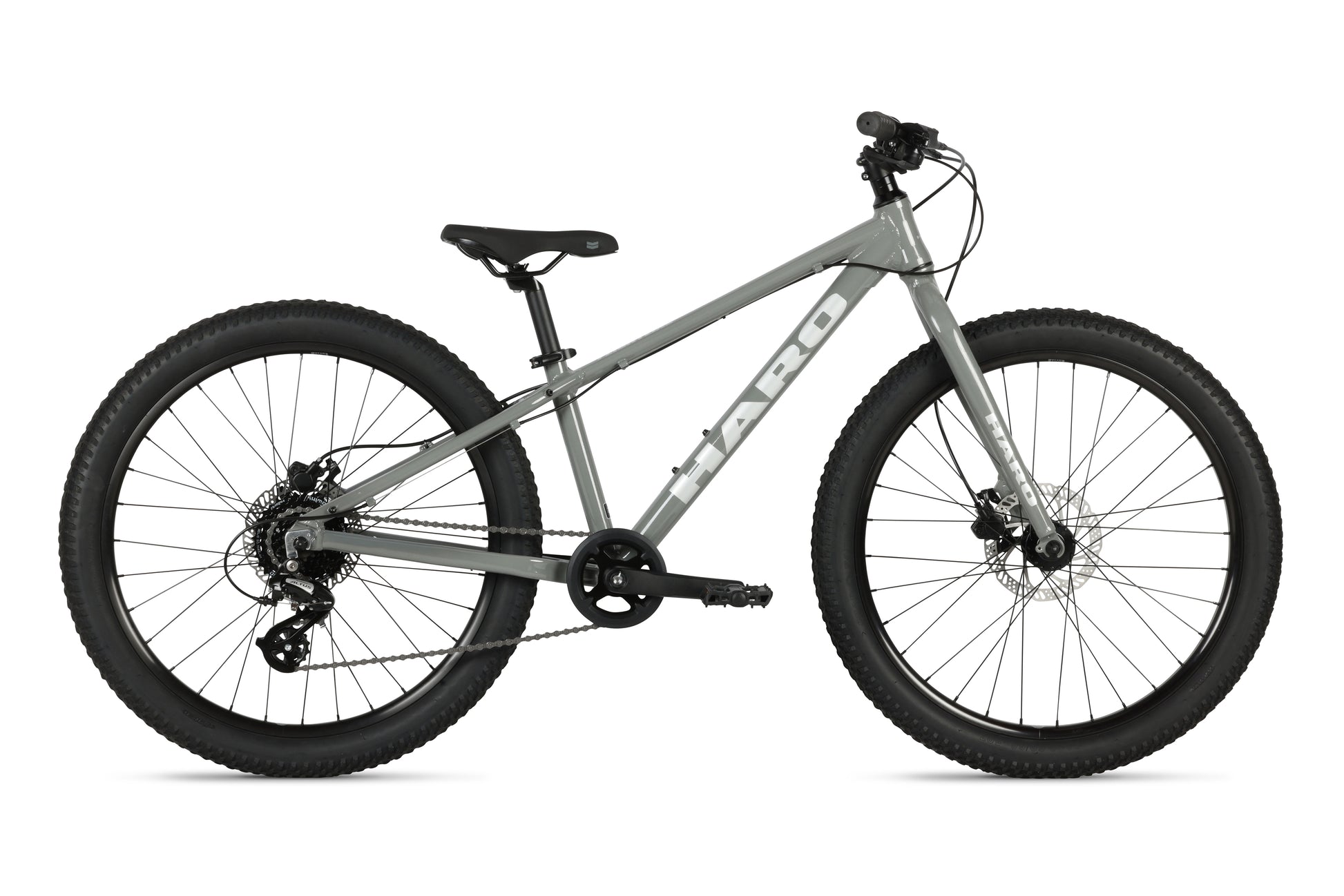

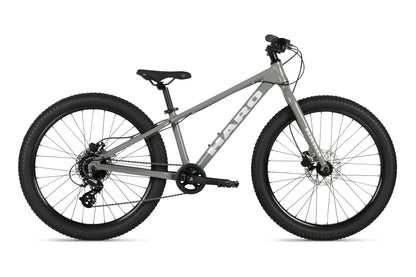

Flightline 24 Plus Disc

Flightline 24 Plus Disc

$599.99
$599.99 $599.99
Sale Sold out

SKU: 14046

Sizing Guide

SizeInchesCM
244' - 4'8"122 - 142

Color

View full details

FEATURES

  • FL 24" Plus X6 Series frame, new chainstays
  • 6000 Series aluminum 1-1/8" fork
  • Aluminum 3-pc 28T crankset w/ double chainguard
  • Shimano Altus 8-SPD, Rear Derailleur
  • Chao Yang H5183 24"x2.60"
  • Tektro HD-J285 Hydraulic disc brakes with 160mm rotors and short reach levers
  • Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8

SPECIFICATIONS

FRAMESET
FrameFL 24" Plus X6 Series frame, new chainstays
Fork6000 Series aluminum 1-1/8" fork
ColorsCool Grey
DRIVETRAIN

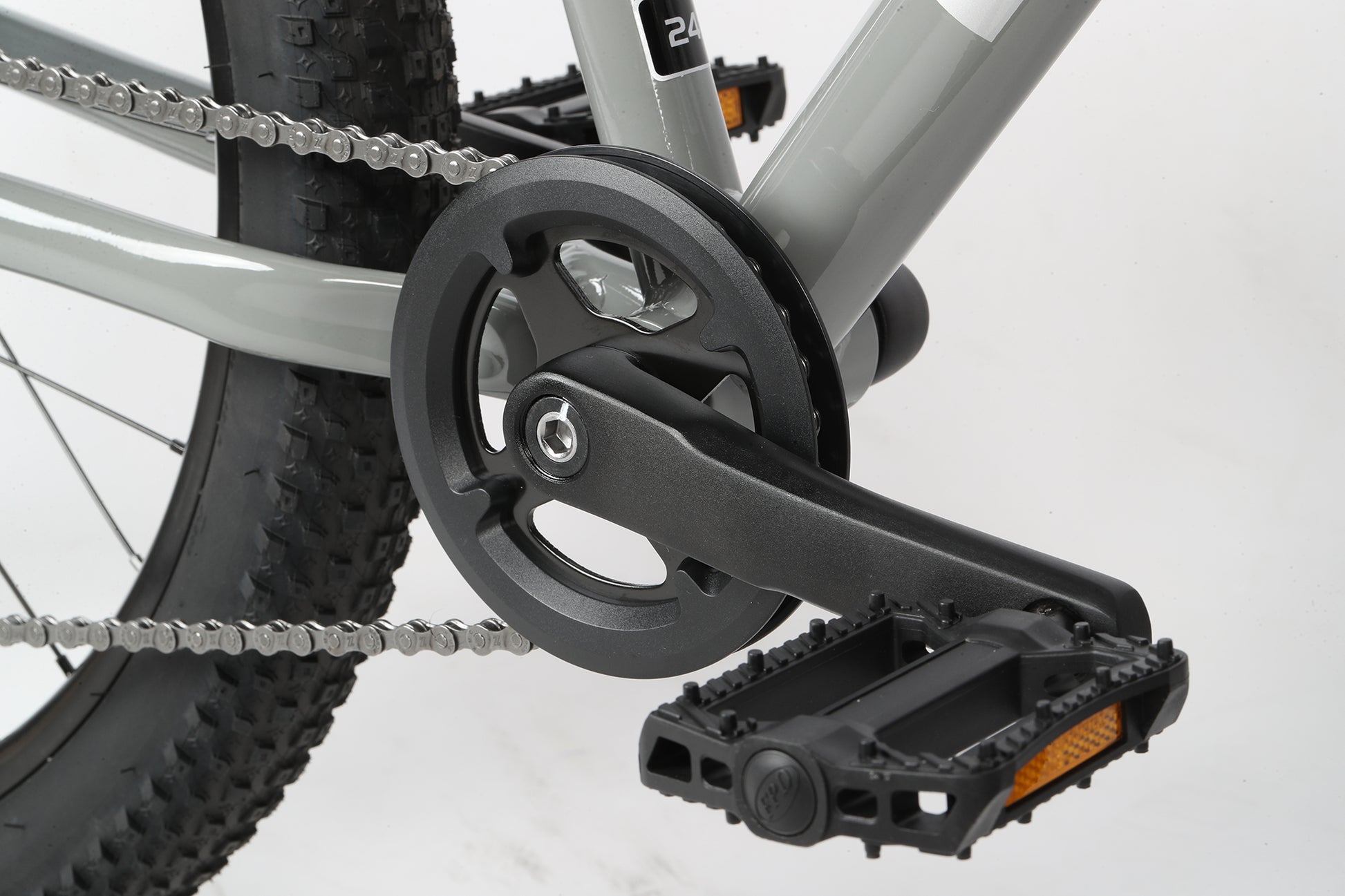

CranksAluminum 3-pc 32T crankset w/ double chainguard
PedalsMTB nylon body 9/16"
ChainKMC Z8 8.3, 1/2"x3/32", 92L, GYGY
Bottom BracketCartridge Bearing 73mmX122.5mm
Front DerailleurN/A

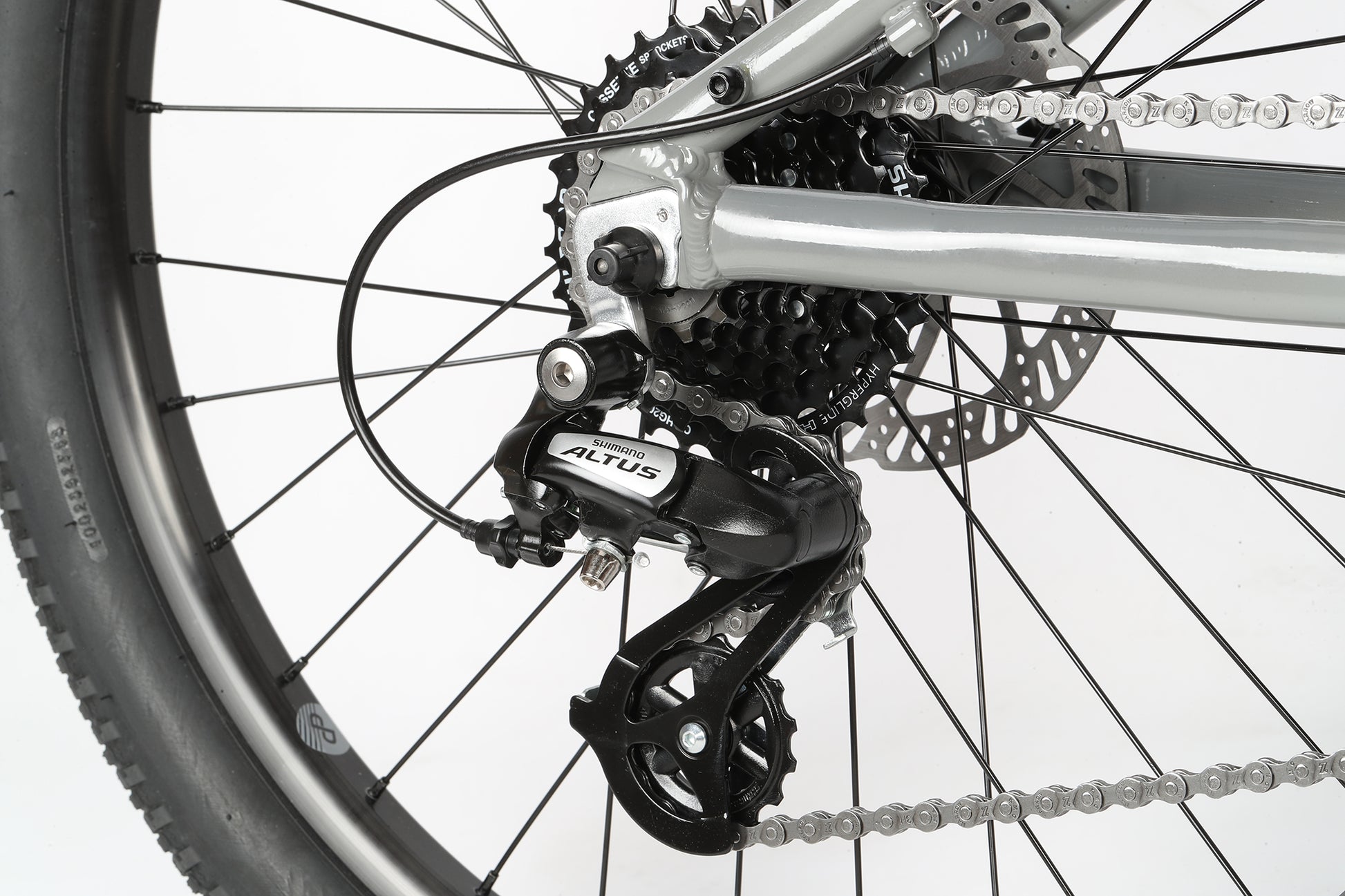

Rear DerailleurShimano Altus 8-SPD, RD-M310-L

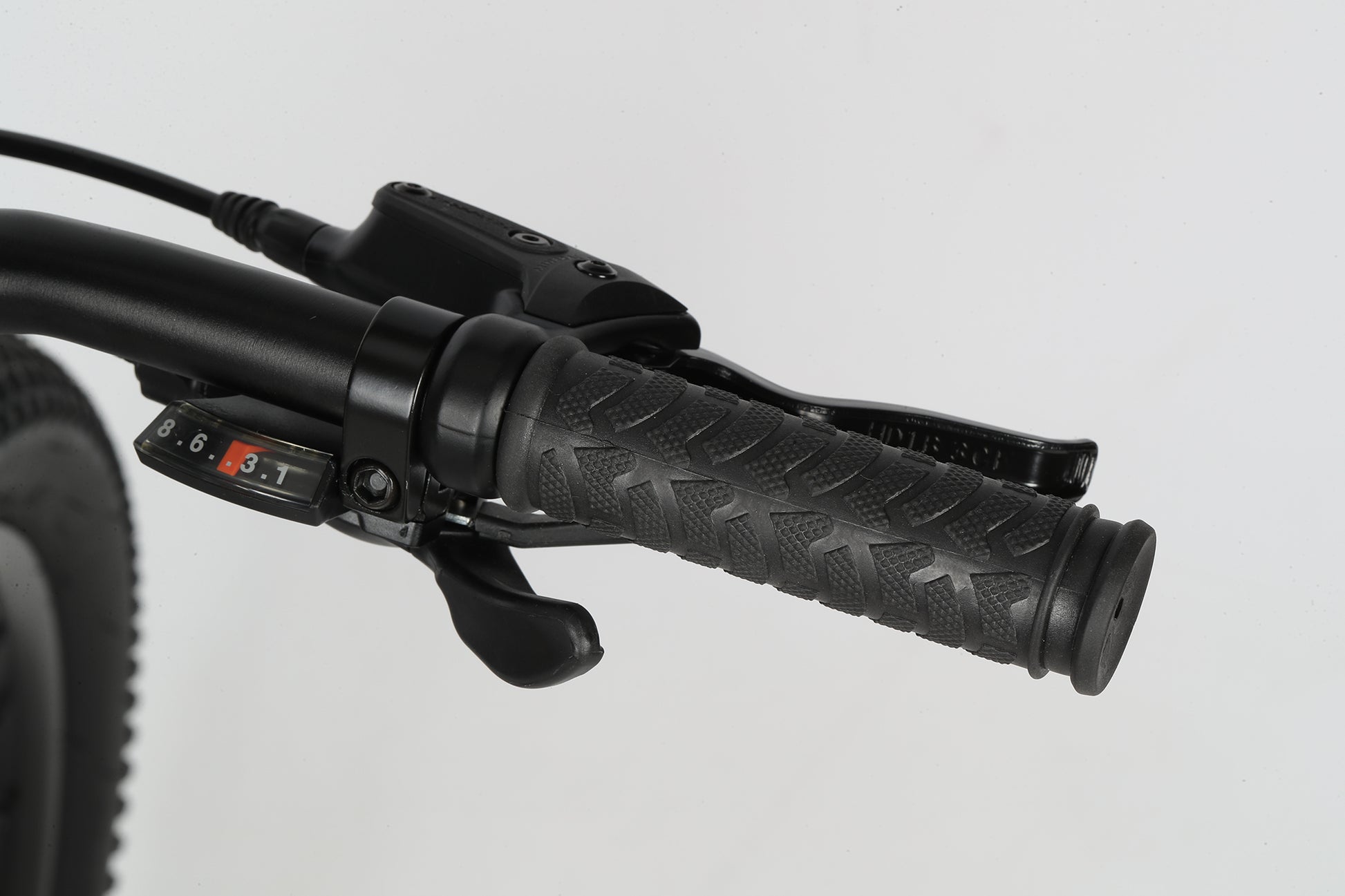

Derailleur ShifterShimano SL-m315-r rapid fire 8spd
Freewheel/CassetteShimano cs-hg200-8 12-32T
WHEELS
TiresChao Yang H5183 20"x2.60"
Wheels/RimsAluminum single wall 20" 31mm wide
Front HubSteel 6 bolt rotor compatible
Rear HubSteel 6 bolt rotor compatible
BRAKING SYSTEM

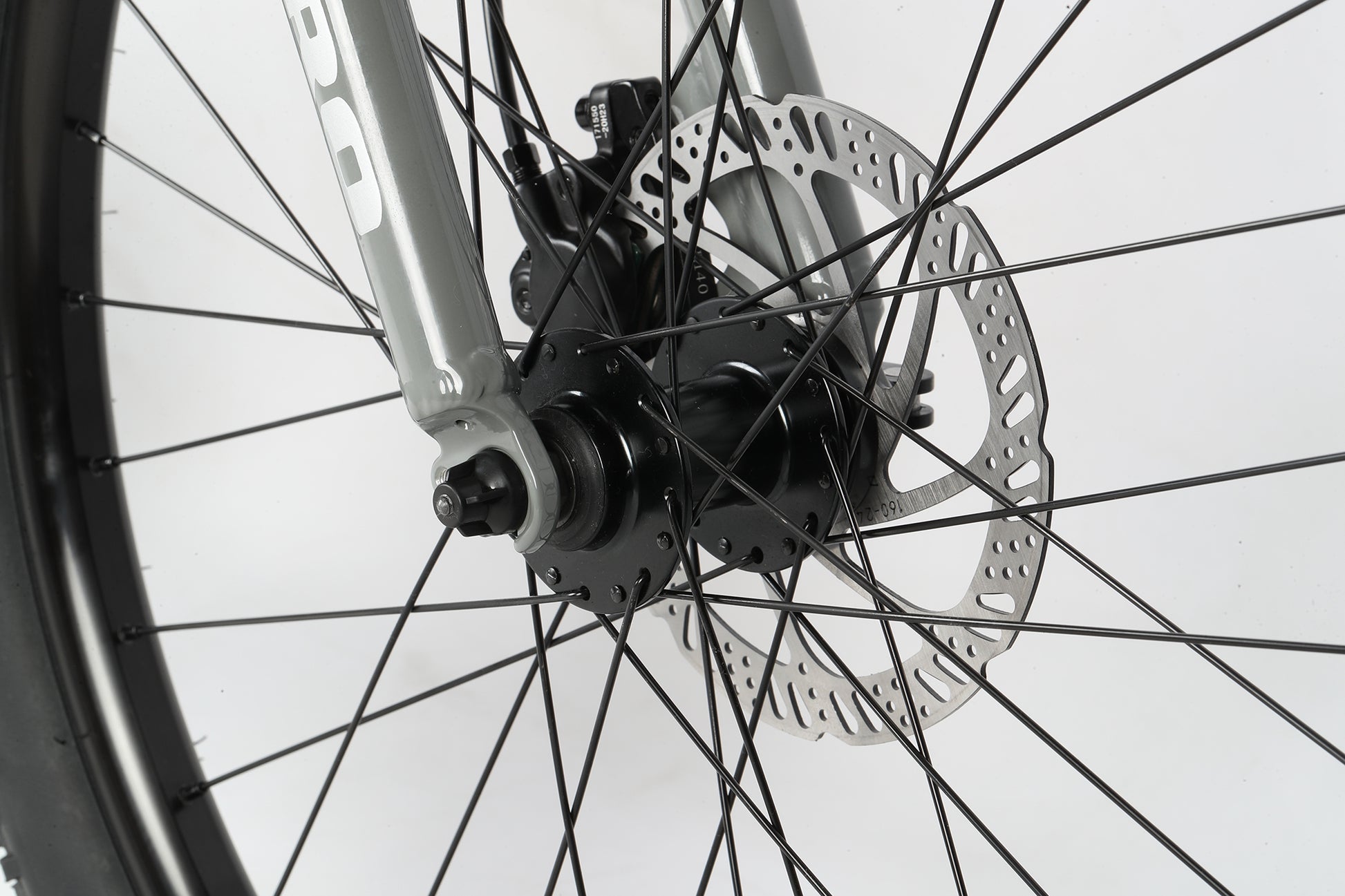

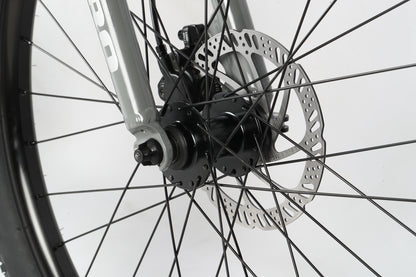

BrakesTektro HD-J285 Hydraulic disc brakes with 160mm rotors
Brake LeversKids specific Tektro HD-J285 brake levers
OTHER COMPONENTS
Grips/TapeKrayton rubber 127mmL

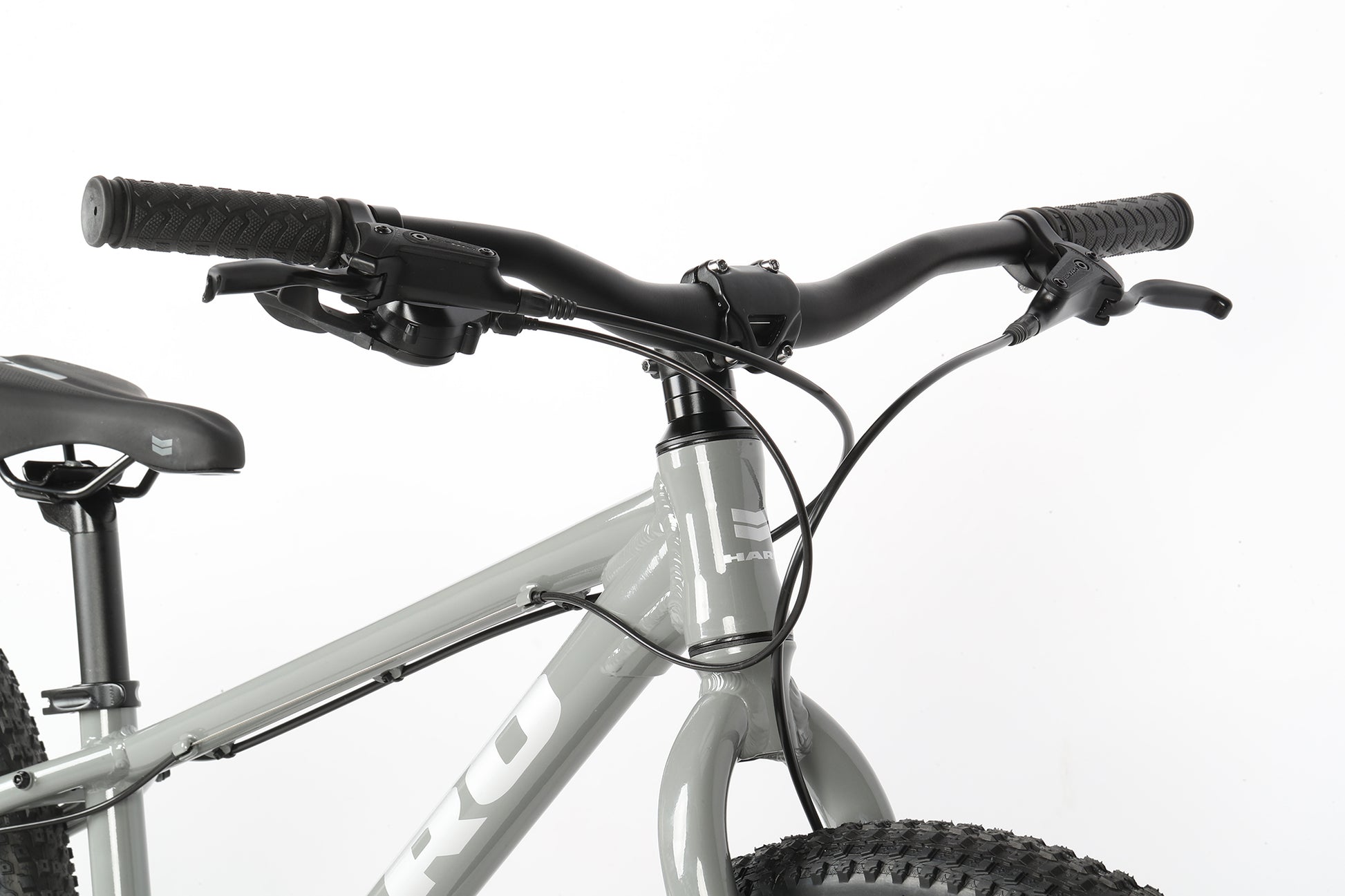

HandlebarAlloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8
StemAlloy 1-1/8", ø31.8 bar bore, 45mmL, 7° Rise
Headset1-1/8" Threadless

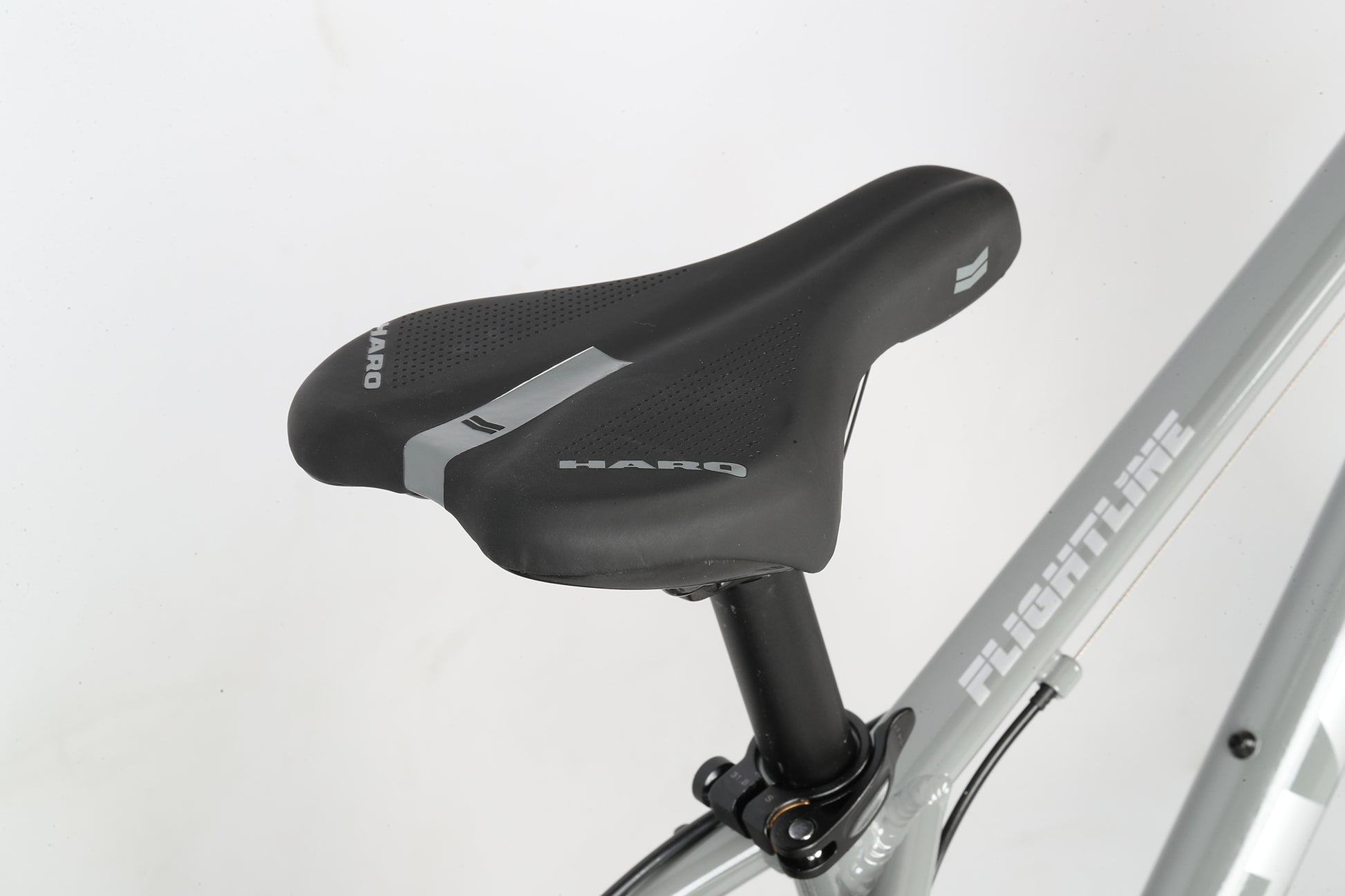

SaddleHaro Flightline Jr
Seat PostAlloy micro adjust ø27.2
Seat ClampAlloy ø31.8 quick release

GEOMETRY

Geometry frame chart
SIZE24
A. Seat Tube (C-T)305mm (12")
B. Top Tube (Effective)512mm (20.2")
C. Head Tube Angle69°
D. Seat Tube Angle73°
E. Chainstay Length415mm (16.3")
F. BB Drop45mm (1.8")
G. Wheelbase987mm (38.9")
H. Head Tube Length90mm (3.5")
I. Standover615mm (24.2")
J. Stack Height499mm (19.6")
K. Reach360mm (14.2")
L. Fork Height407mm (16")
M. Fork Offset35mm (1.4")
N. Stem Length45mm
O. Bar Width620mm
P. Crank Length152mm
