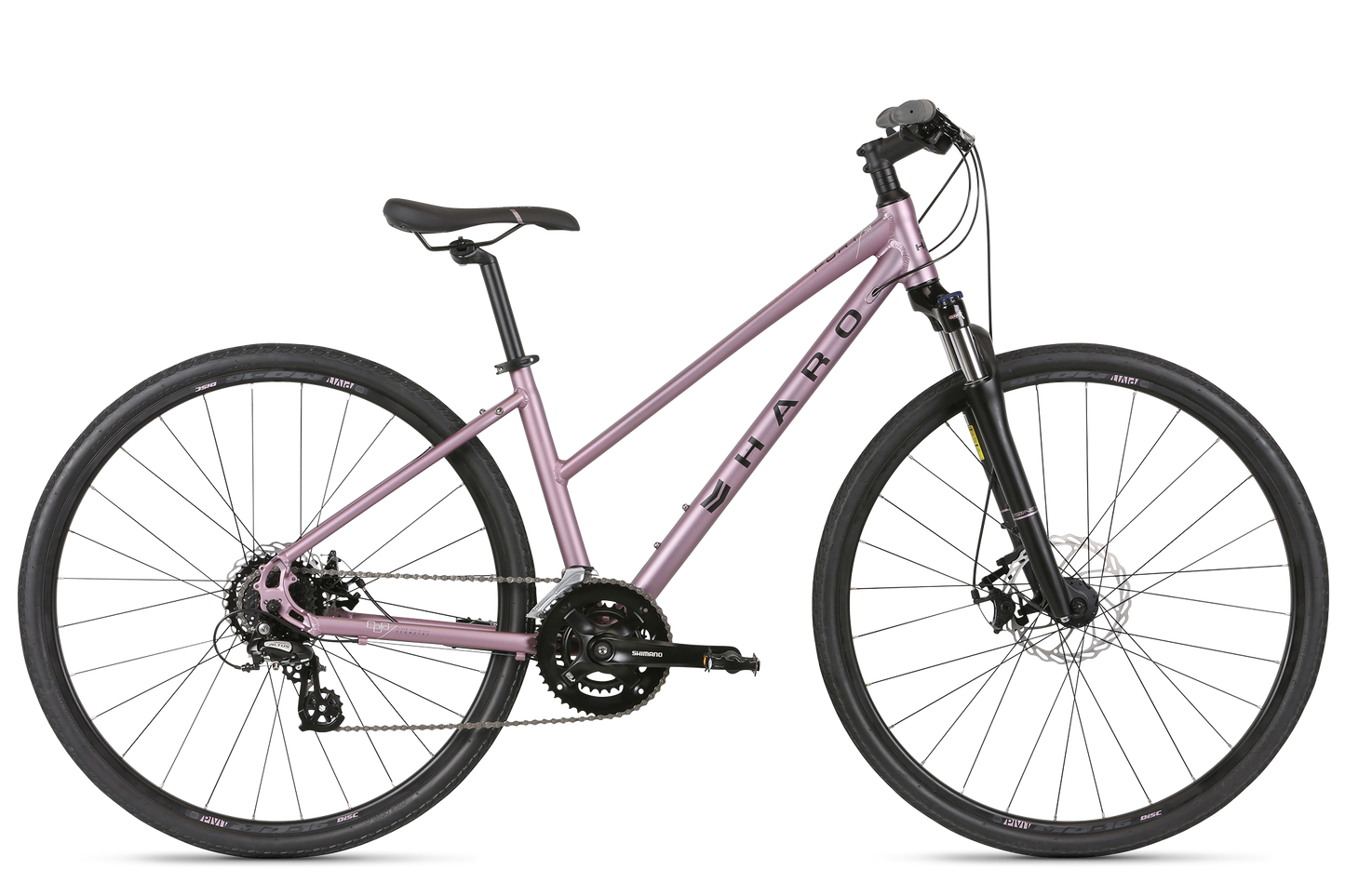

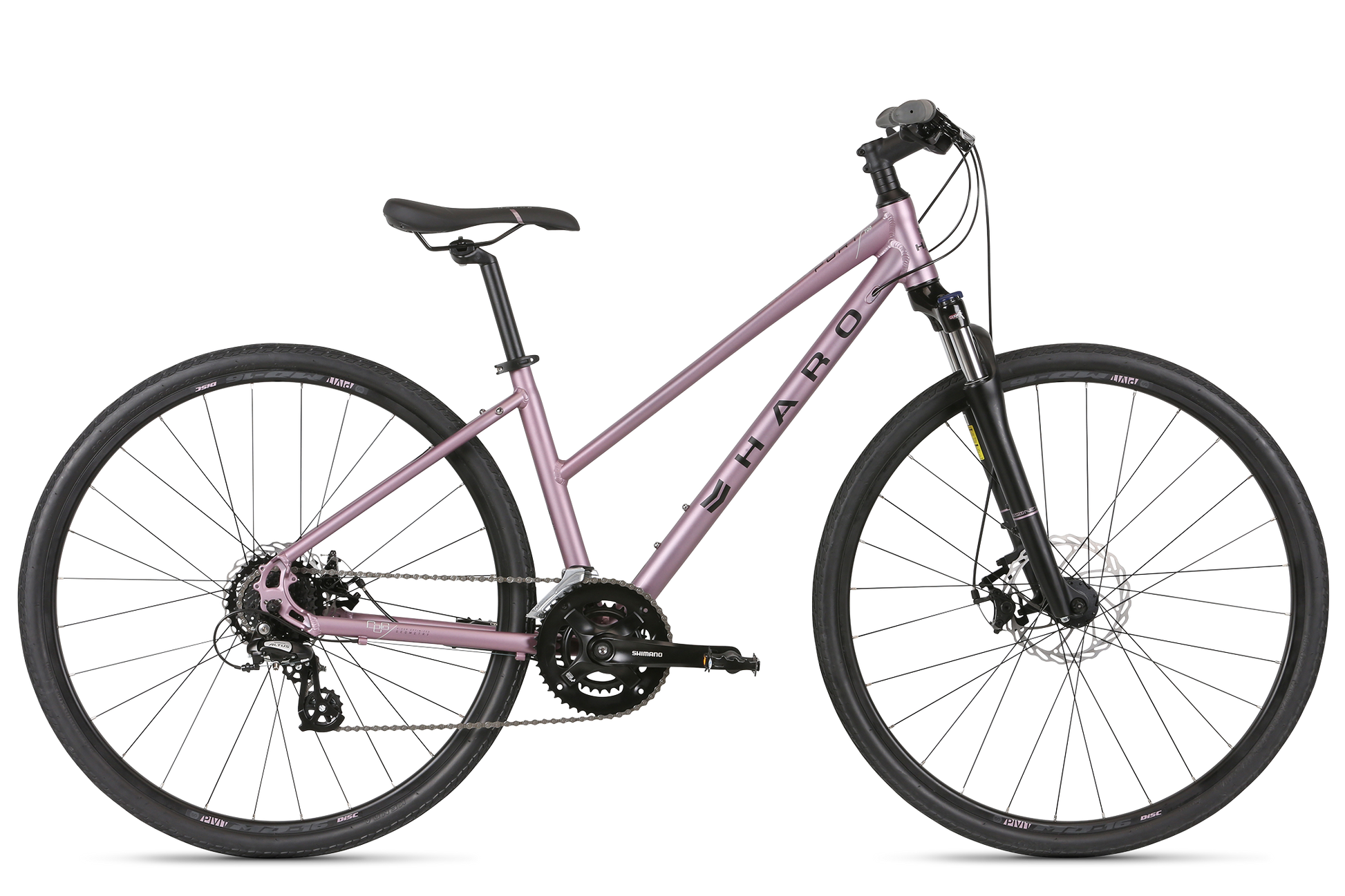

Bridgeport ST

Bridgeport ST

$699.99
$699.99 $699.99
Sale Sold out

SKU: 11751

Lighter than a mountain bike, more comfy than a road bike... it's a bird, it's a plane, it's... da duhhn... the Bridgeport ST. Coming to a nicer bike shop near you, "The Bridgeport ST" (Rated R, starts Friday) has the can-do attitude of a suspension-fork-equipped mountain bike, the svelte poise of a sprightly road bike, the unflappable countenance of a LA-Z-Boy, all in a price-conscious package that's the MUST HAVE of this summer! Shop now for limitless mobile comfort or forever regret purchasing indecision.

Sizing Guide

SizeInchesCM
XS5' - 5'4"152.5 - 162.5
S5'3" - 5'7"160 - 170

Color
Size

View full details

COMPATIBLE RACKS & BASKETS

  • Rack Configuration 1

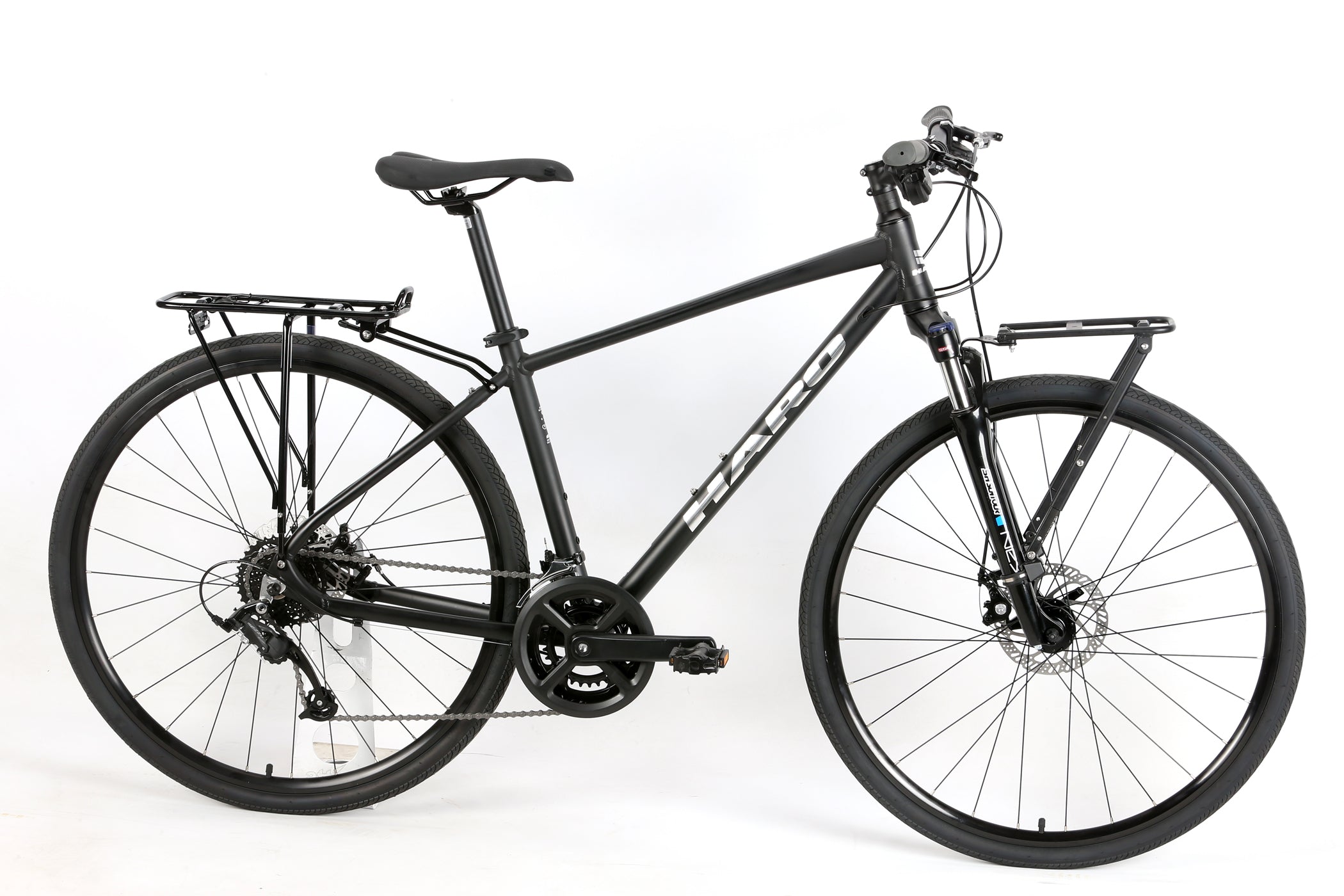

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier. Compatible with Bridgeport ST

    Shop Racks

  • Rack & Accessory Configuration 2

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Bakery Crate & ZAP EASY Top Bag. Compatible with Bridgeport ST

    Shop Crates & Bags

  • Rack & Accessory Configuration 3

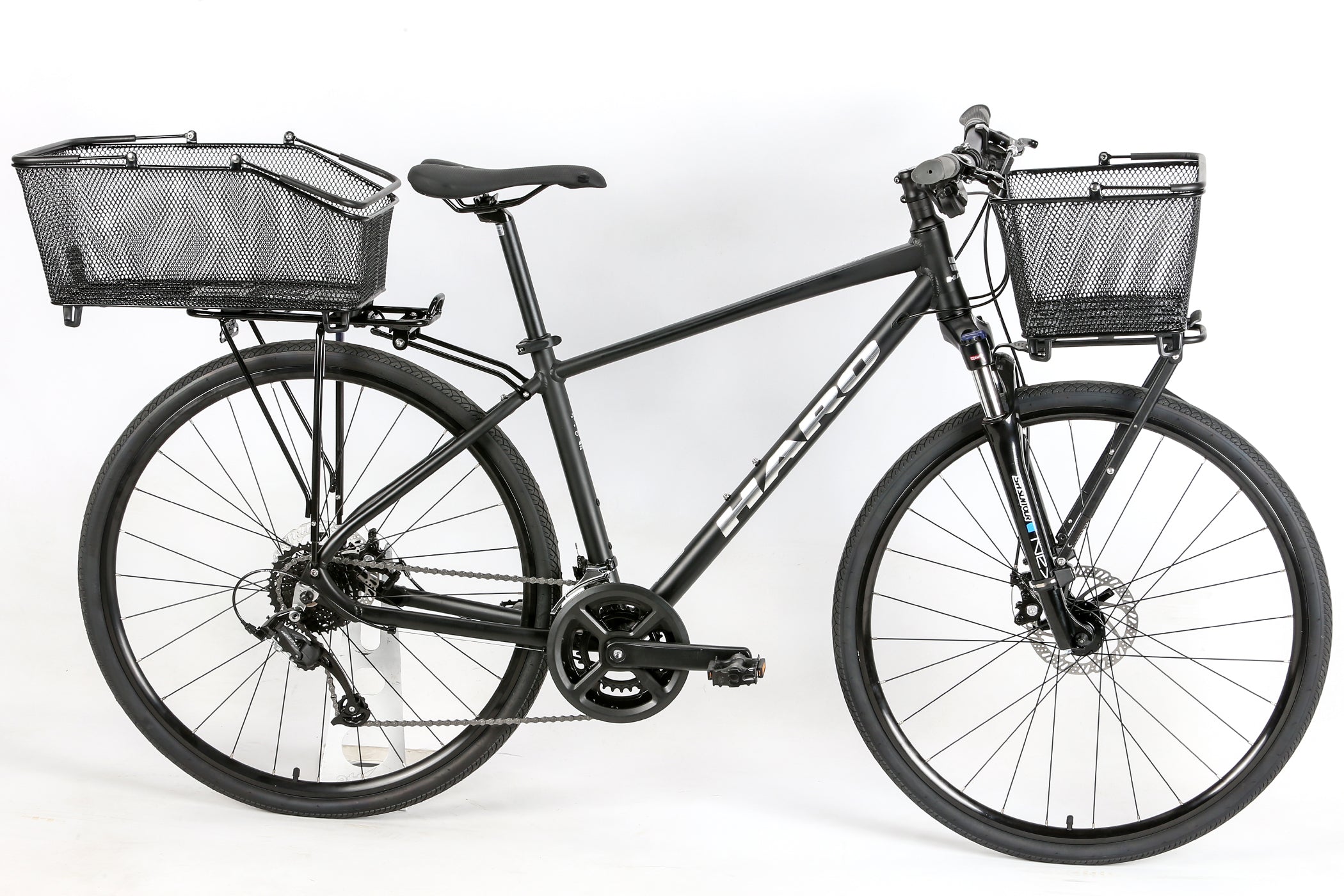

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Dailey Large & Dailey Small Baskets. Compatible with Bridgeport ST

    Shop Baskets

FEATURES

  • Smooth-riding SR Suntour NEX suspension fork with hydraulic lockout for smooth roads
  • Upright posture aids in visibility and comfort
  • 6061 heat-treated aluminum frame makes for a lightweight bicycle
  • Mid-width tires allow for speed on bike paths while providing enough float to venture off pavement
  • Alloy frame, components, and wheels stay rust free
  • Small front chainring allows for easy gearing on steep hills
  • Thick 8-speed chain resists stretching and wearing out
  • Name-brand Shimano drivetrain makes for proven shifting

SPECIFICATIONS

FRAMESET

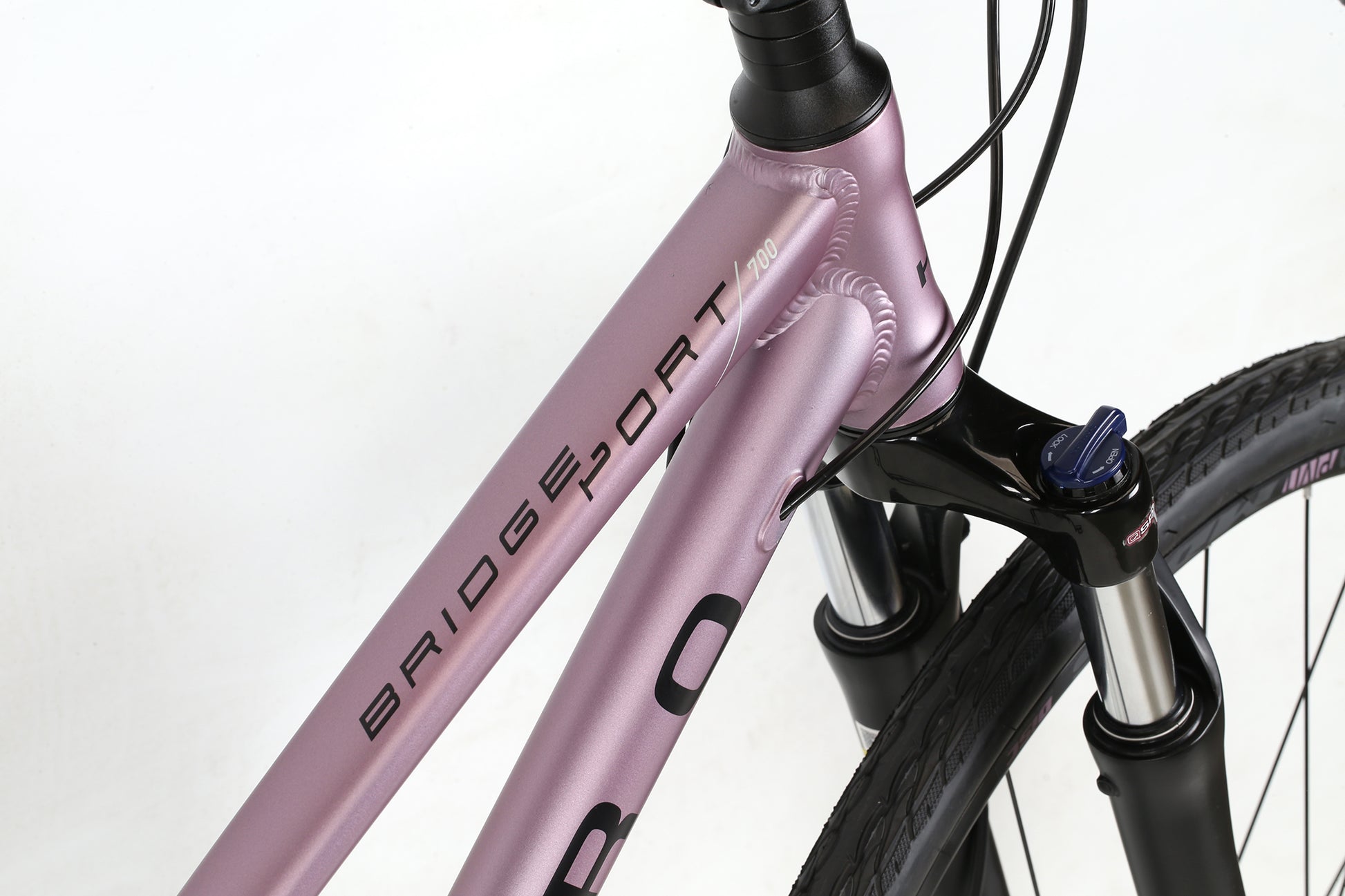

FrameHaro Solum Step Through | Heat-treated 6061 aluminum | Tig-welded construction | Rider-tuned geometry | 68mm threaded BSA bottom bracket shell | I.S. disc brake mount | 135mm quick-release dropouts with replaceable derailleur hanger
ForkSR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing
ColorsPurist Blue
Weight32.7 lbs
DRIVETRAIN

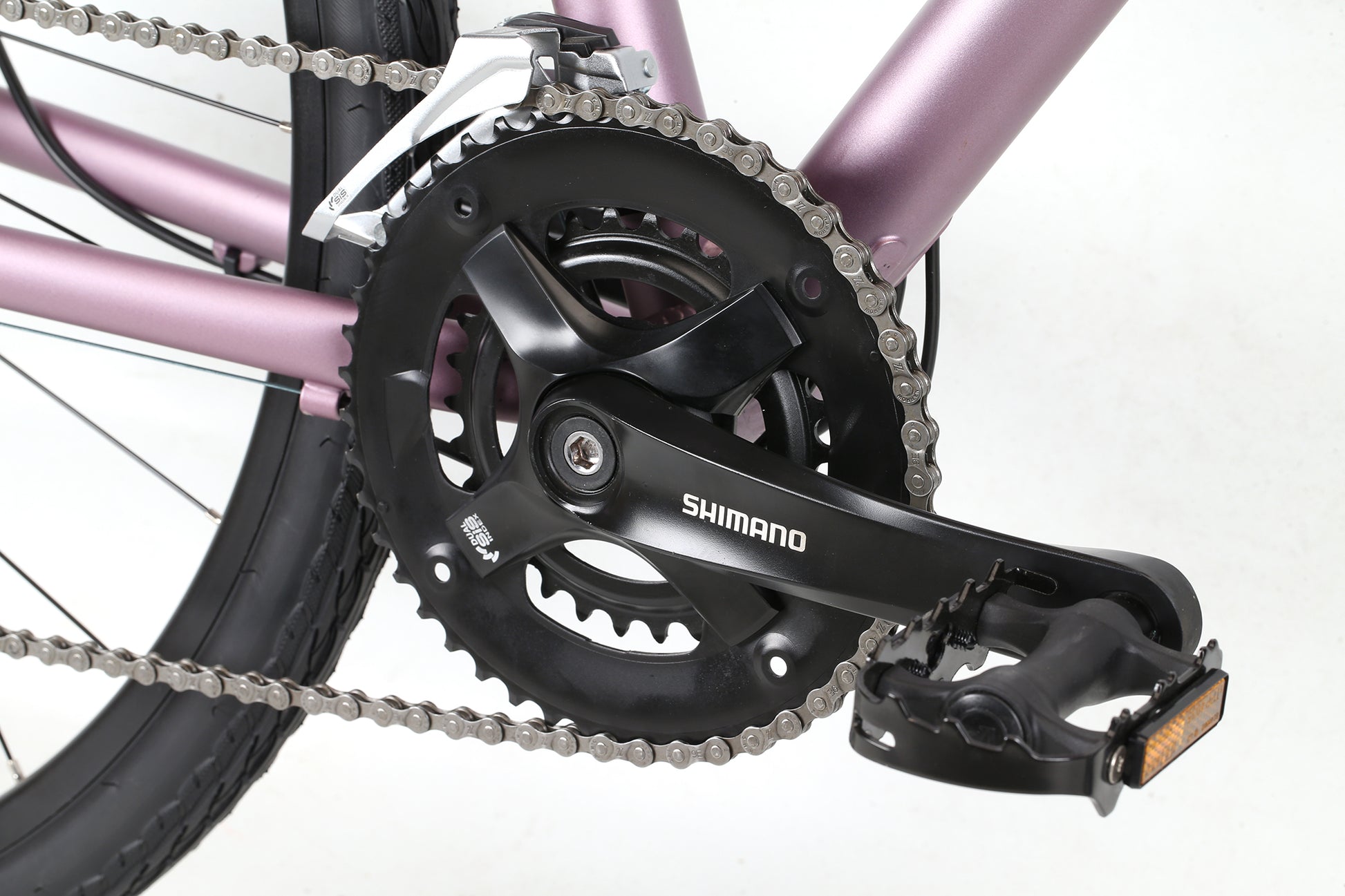

CranksShimano TY-501 | 46/30T | 8-speed | 170mm
PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
ChainKMC Z8.1 | 8-speed
Bottom BracketShimano UN100 | Threaded BSA 68mm BB shell | 122.5mm spindle (LL123) | Sealed cartridge
Front DerailleurShimano Tourney FD-TY710 | Top Swing | 34.9mm band diameter

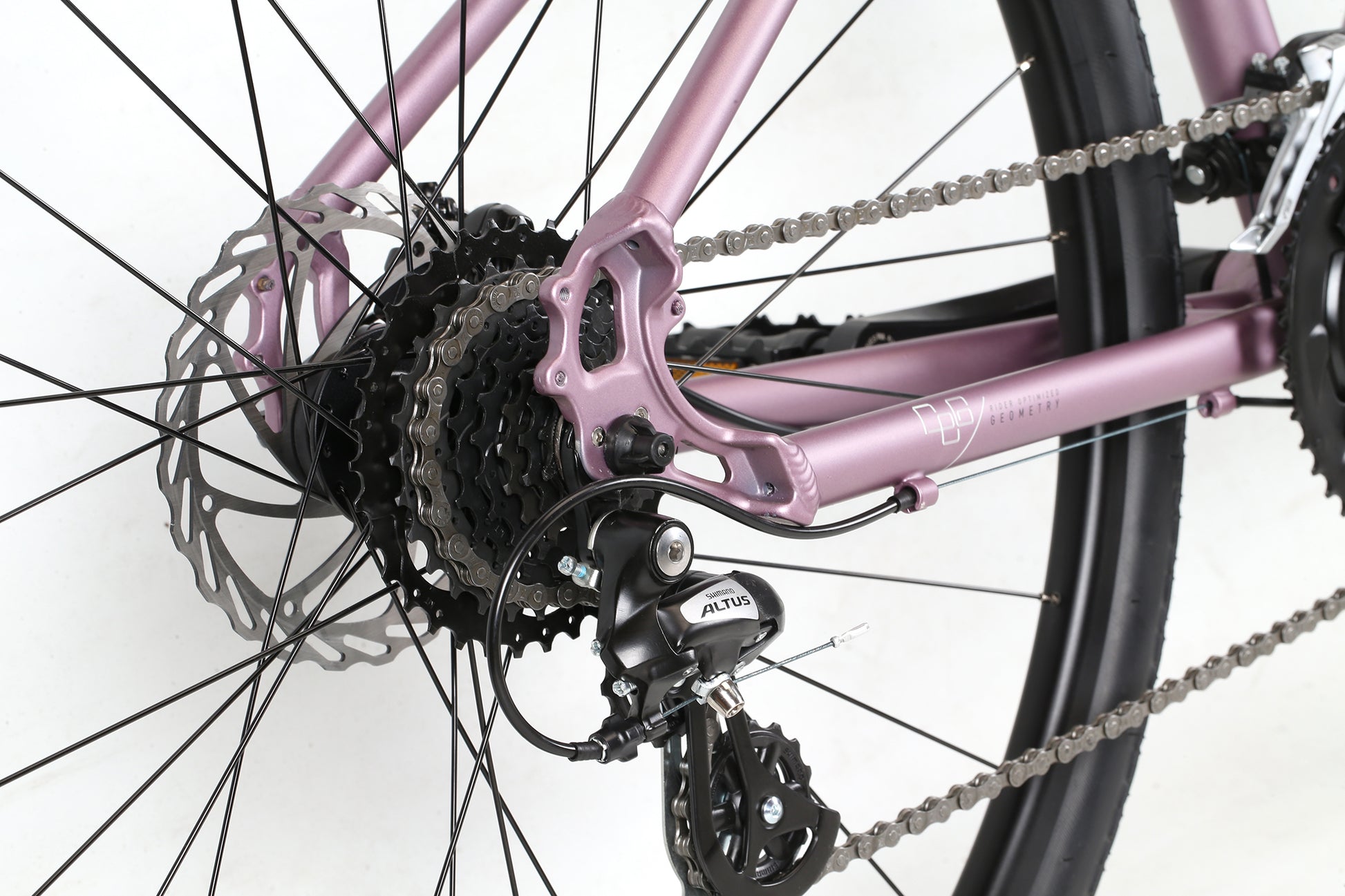

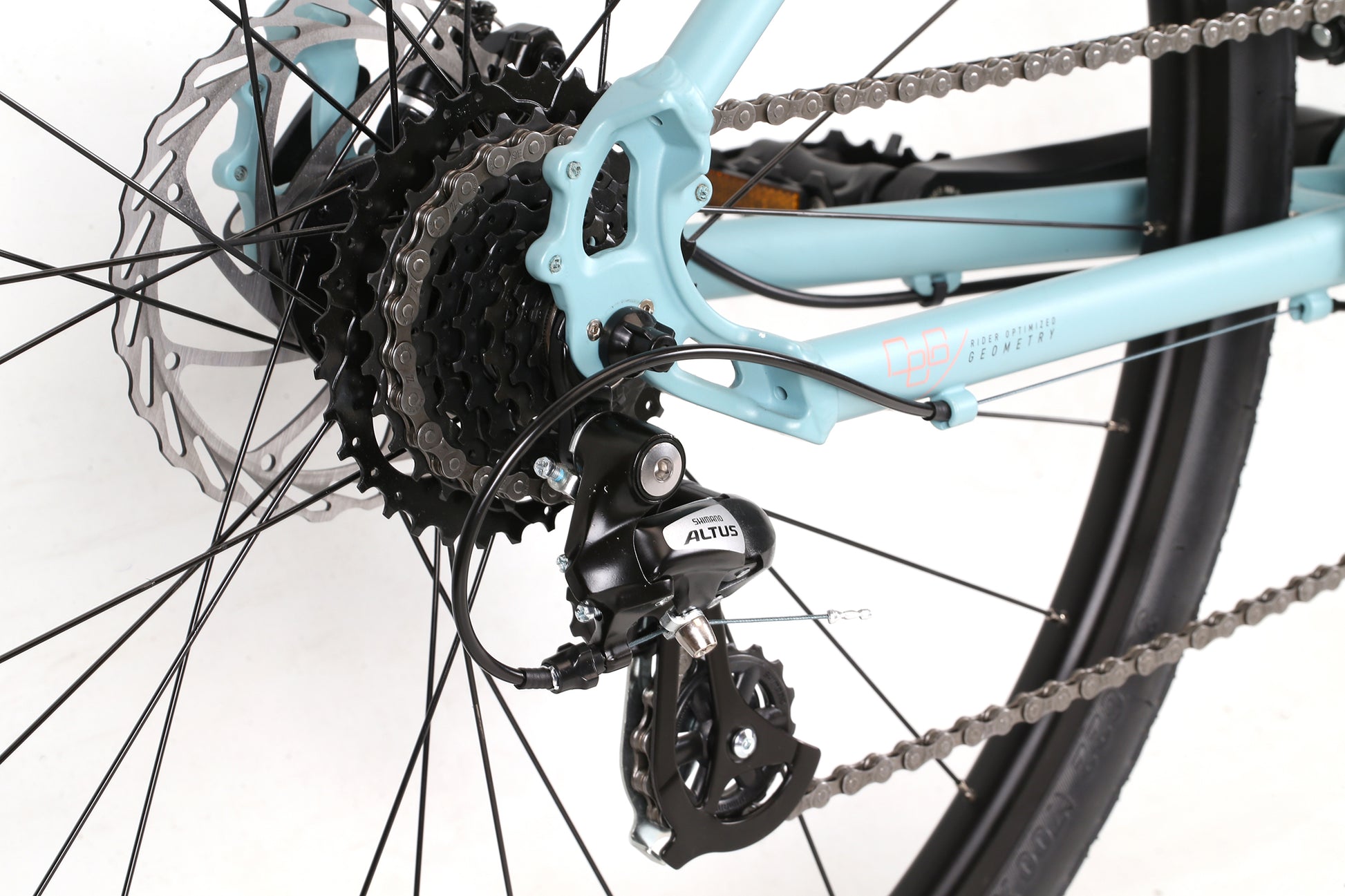

Rear DerailleurShimano Altus RD-M310-L | 8-speed | Direct attachment
Derailleur ShifterShimano SL-M315 | 2 x 8-speed Rapidfire Plus | Optical gear display
Freewheel/CassetteMid-range | 8-speed | 11-34T
WHEELS

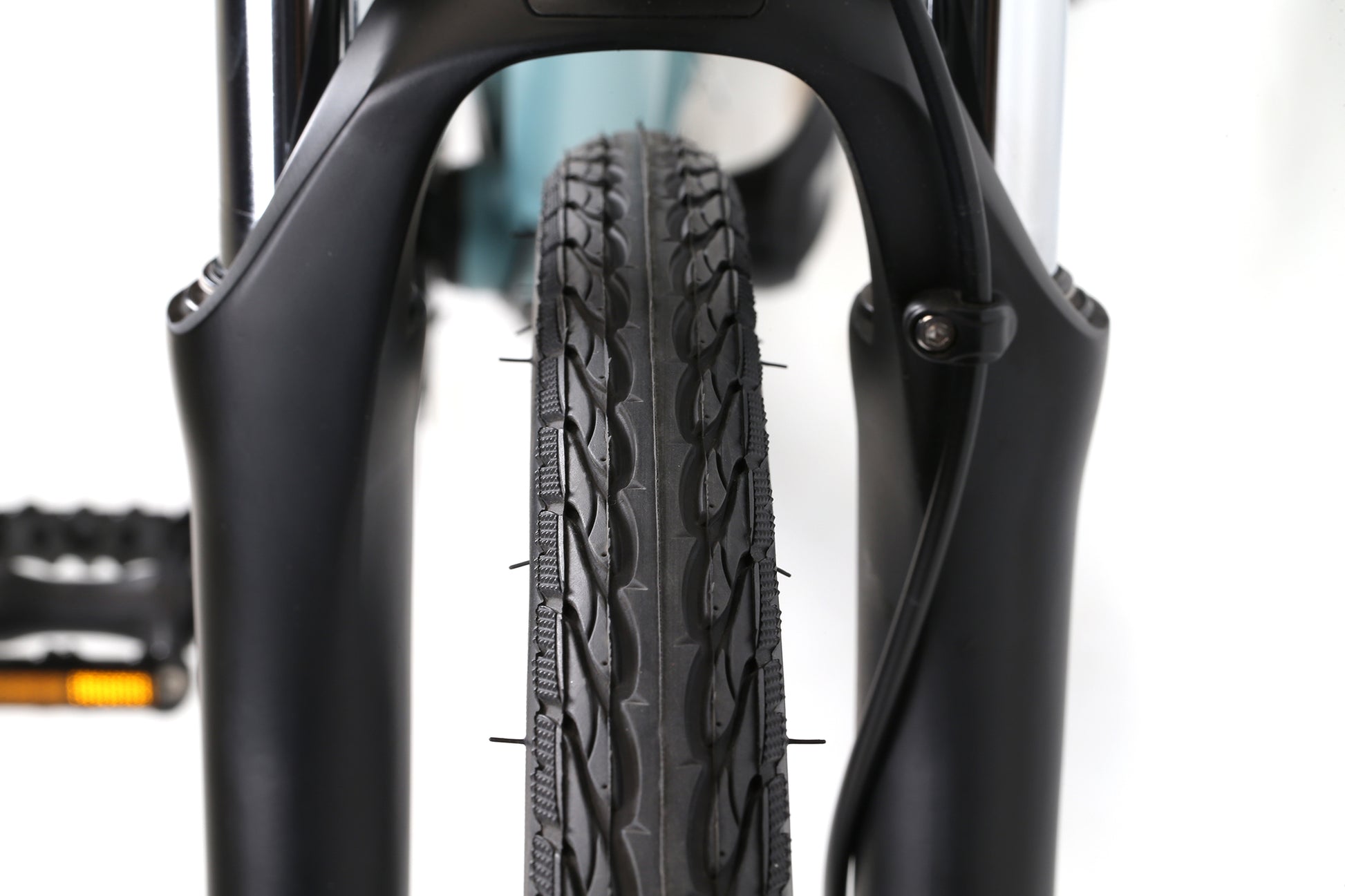

TiresKenda Kwick Bitumen, 700 x 38c
Wheels/RimsPivit Excelsior 700c | Width (internal): 19mm | 28h | Alloy double wall | disc-brake specifc
Front HubPivit Roundabout | Alloy shell | 100mm quick-release | I.S. 6-bolt disc | 28h
Rear HubPivit Roundabout | Alloy shell | 135mm quick-release | I.S. 6-bolt disc | 28h | 8-speed
BRAKING SYSTEM
BrakesFlat mount | Adjustable mechanical disc | I.S. 6-bolt rotors | F: 180mm, R: 160mm

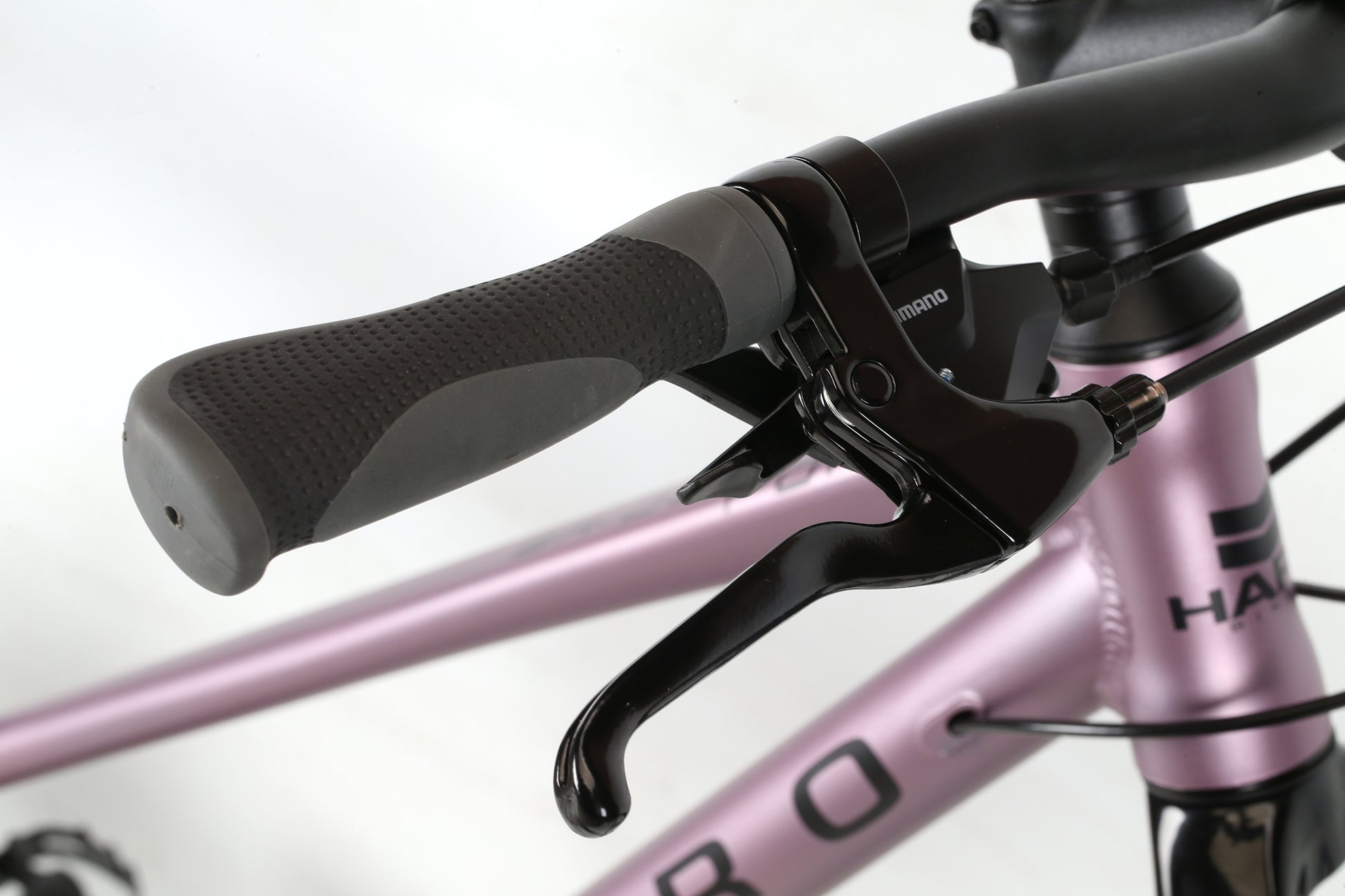

Brake LeversAlloy | 3-finger
OTHER COMPONENTS
Grips/TapePivit Entonces | Dual-density durometer | Active tuned

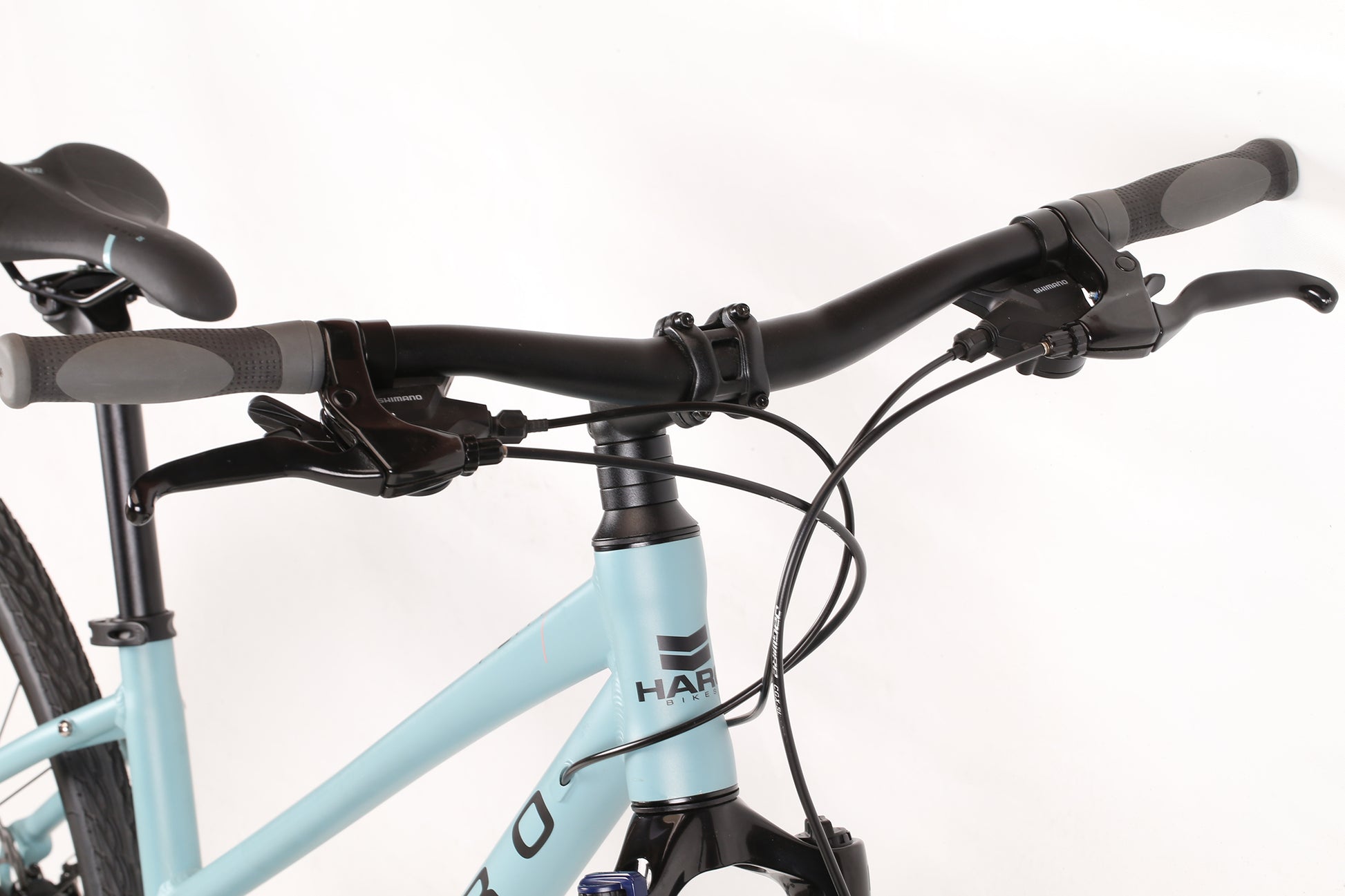

HandlebarPivit Grand Assembly Bar | Alloy | 25mm rise| 31.8mm bar bore | 9° sweep | 620mm

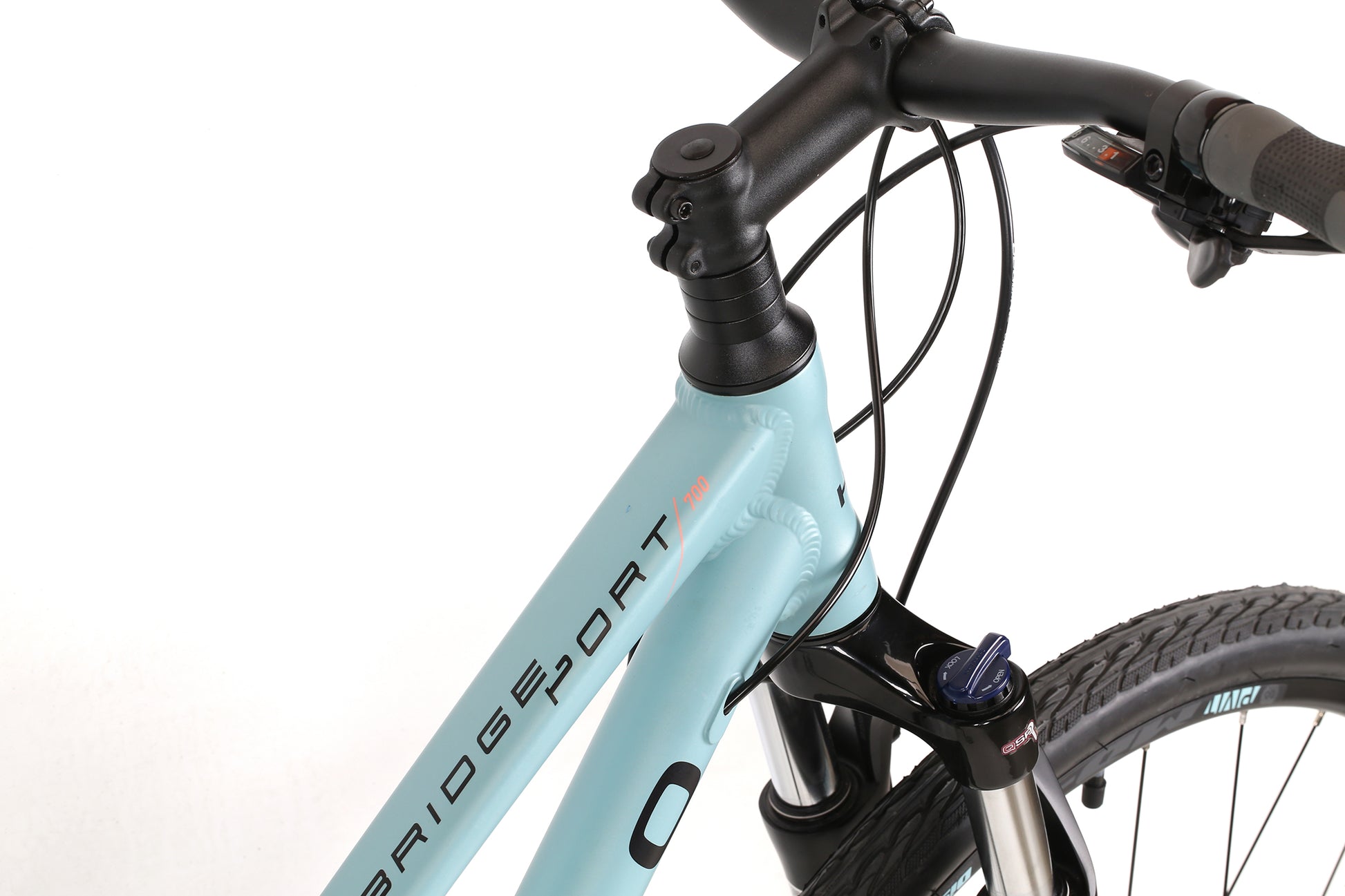

StemPivit Maverick Stem | Alloy | Positive Positioning | 7° rise | 14": 75mm; 16": 90mm
HeadsetPivit Precision Plus | 1-1/8" threadless | Internal | For 50mm OD headtube

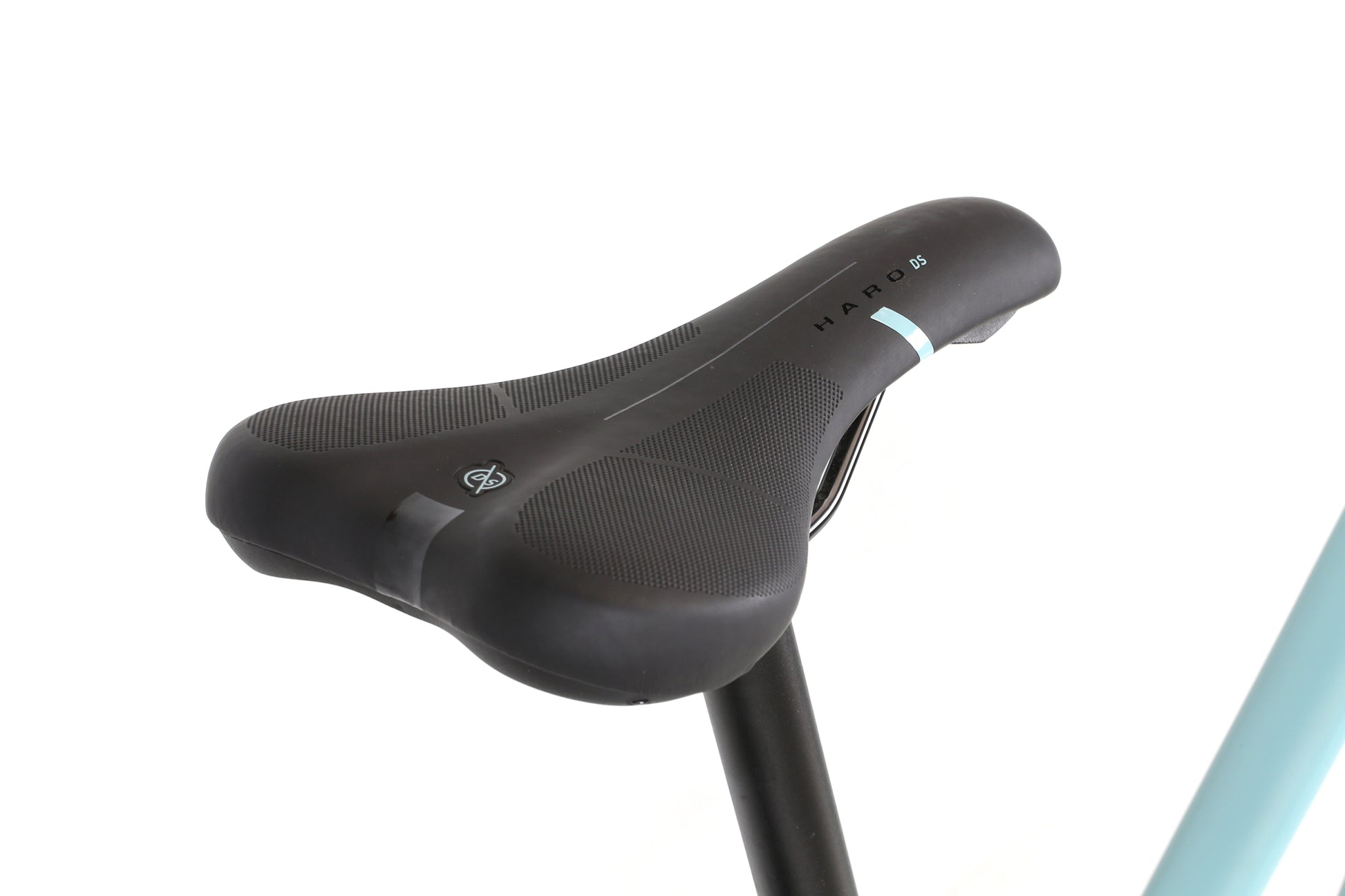

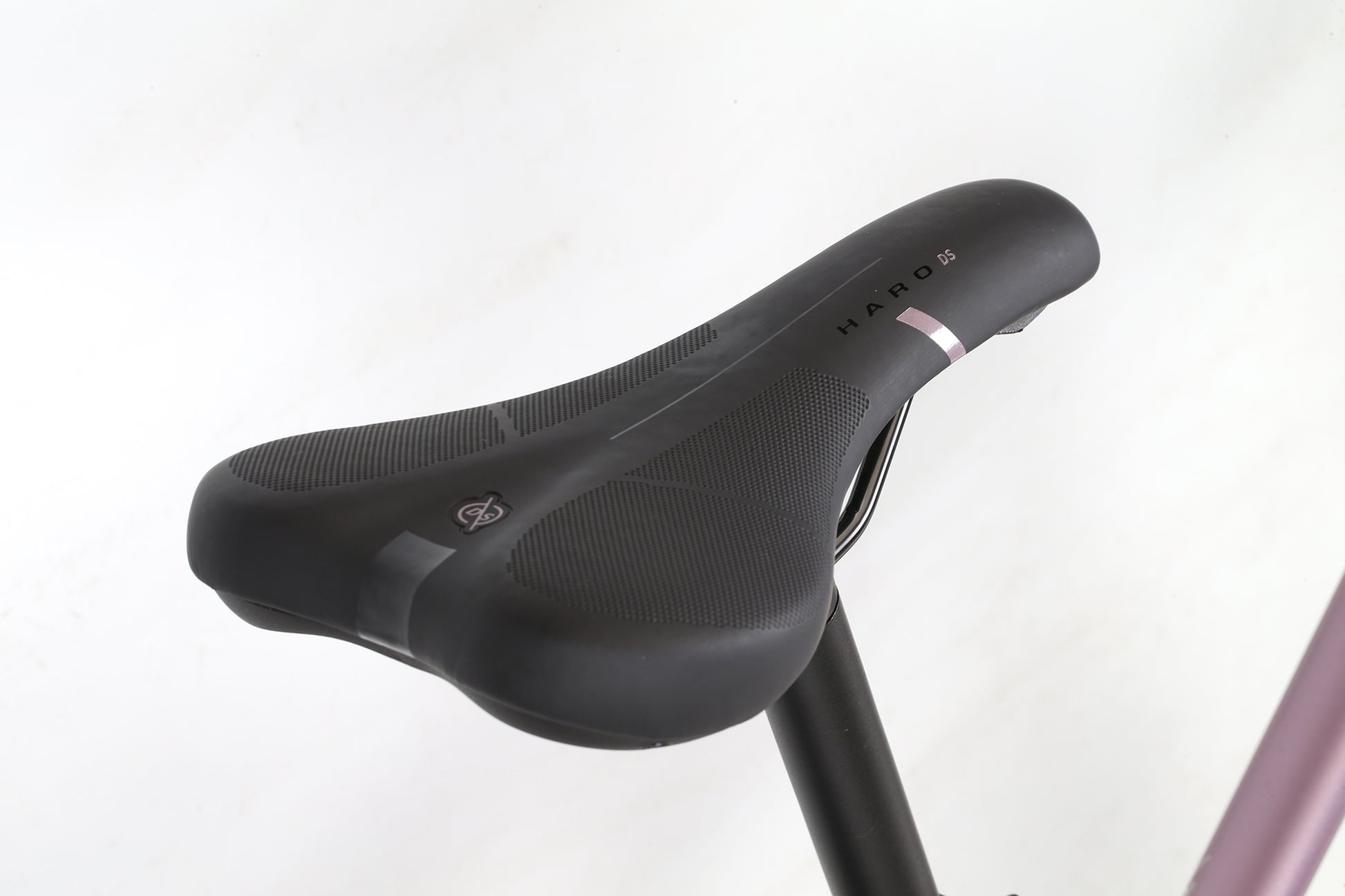

SaddleHaro Rep Plus | Dual-sport tuned padding | Weather-resistant cover
Seat PostPivit Vertical Integration | Alloy | Micro-management positioning | 27.2mm x 350mm | 1-bolt ease
Seat ClampPivit Lockjaw | Alloy | 31.8mm | Multi-throw design | Quick release ease
ExtrasRack and fender mounts

GEOMETRY

Geometry frame chart
SIZEXSS
A. Seat Tube (C-T)355mm (14")406mm (16")
B. Top Tube (Effective)550mm (21.7")572mm (22.5")
C. Head Tube Angle70°70°
D. Seat Tube Angle74°74°
E. Chainstay Length445mm (17.5")445mm (17.5")
F. BB Drop60mm (2.4")60mm (2.4")
G. Wheelbase1058mm (41.7")1081mm (42.6")
H. Head Tube Length105mm (4.1")115mm (4.5")
I. Standover682mm (26.9")695mm (27.4")
J. Stack Height587mm (23.1")596mm (23.5")
K. Reach381mm (15")400mm (15.7")
L. Fork Height468mm (18.4")468mm (18.4")
M. Fork Offset42mm (1.7")42mm (1.7")
N. Stem Length75mm90mm
O. Bar Width620mm620mm
P. Crank Length170mm170mm
