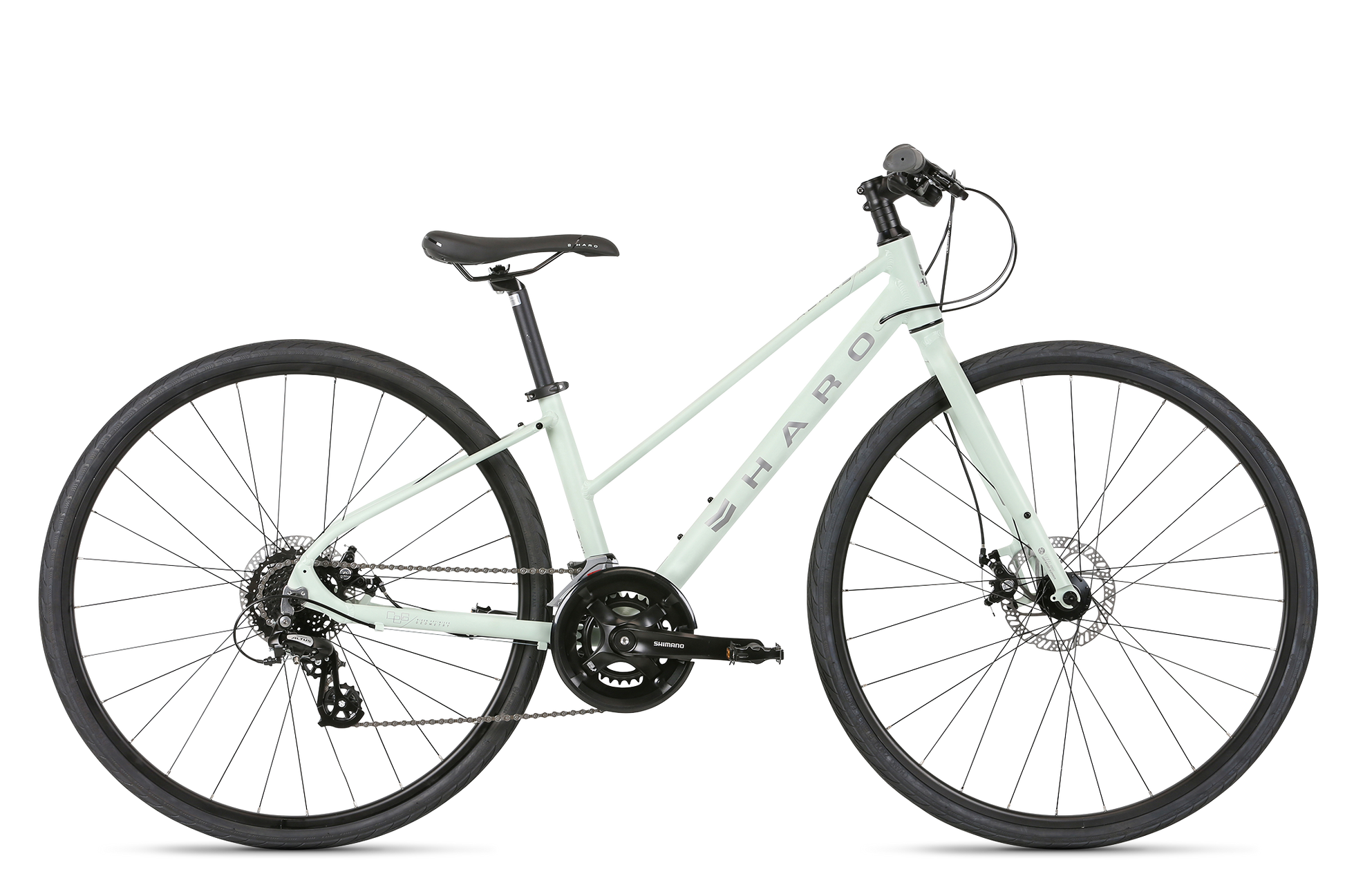

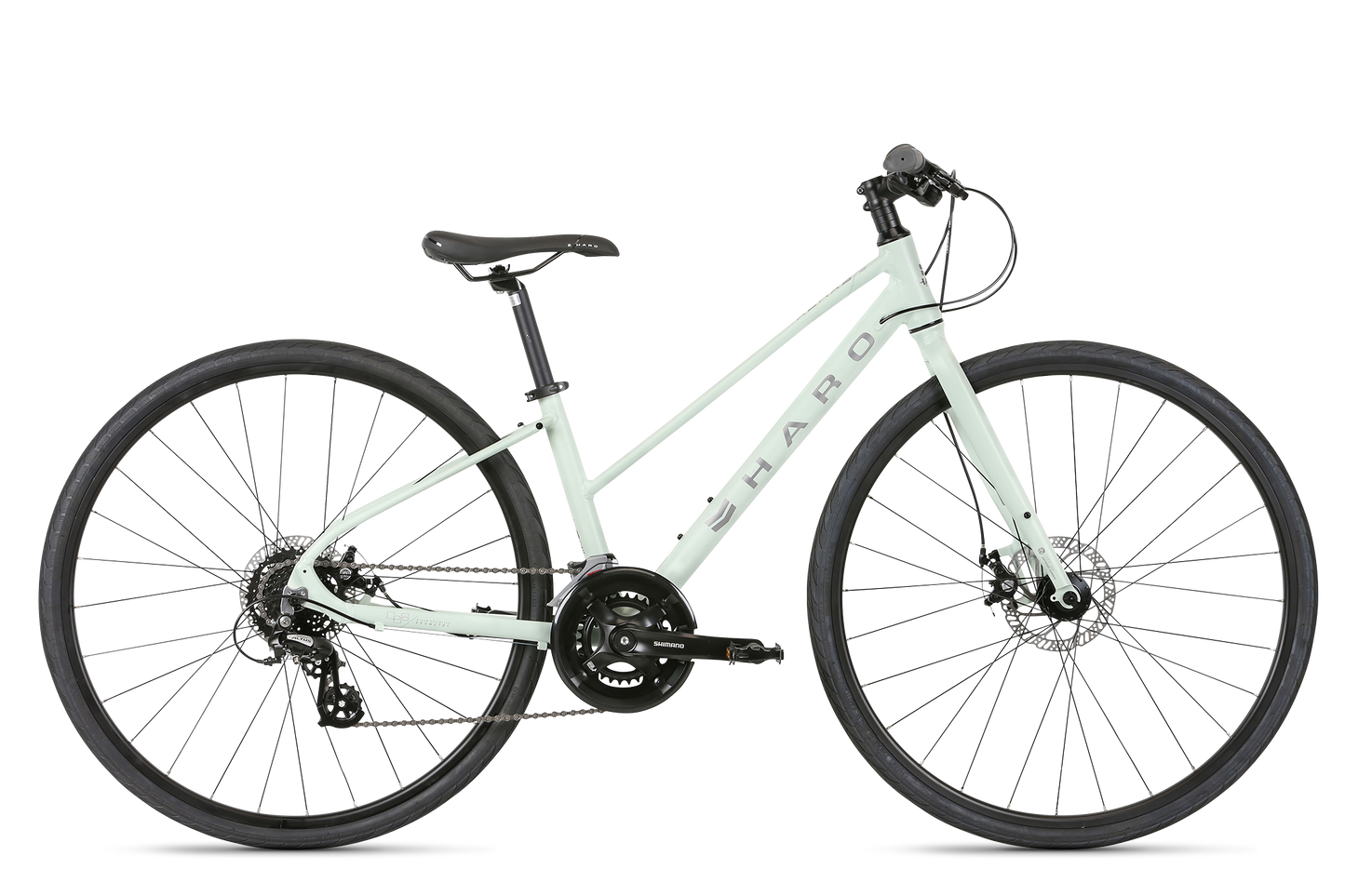

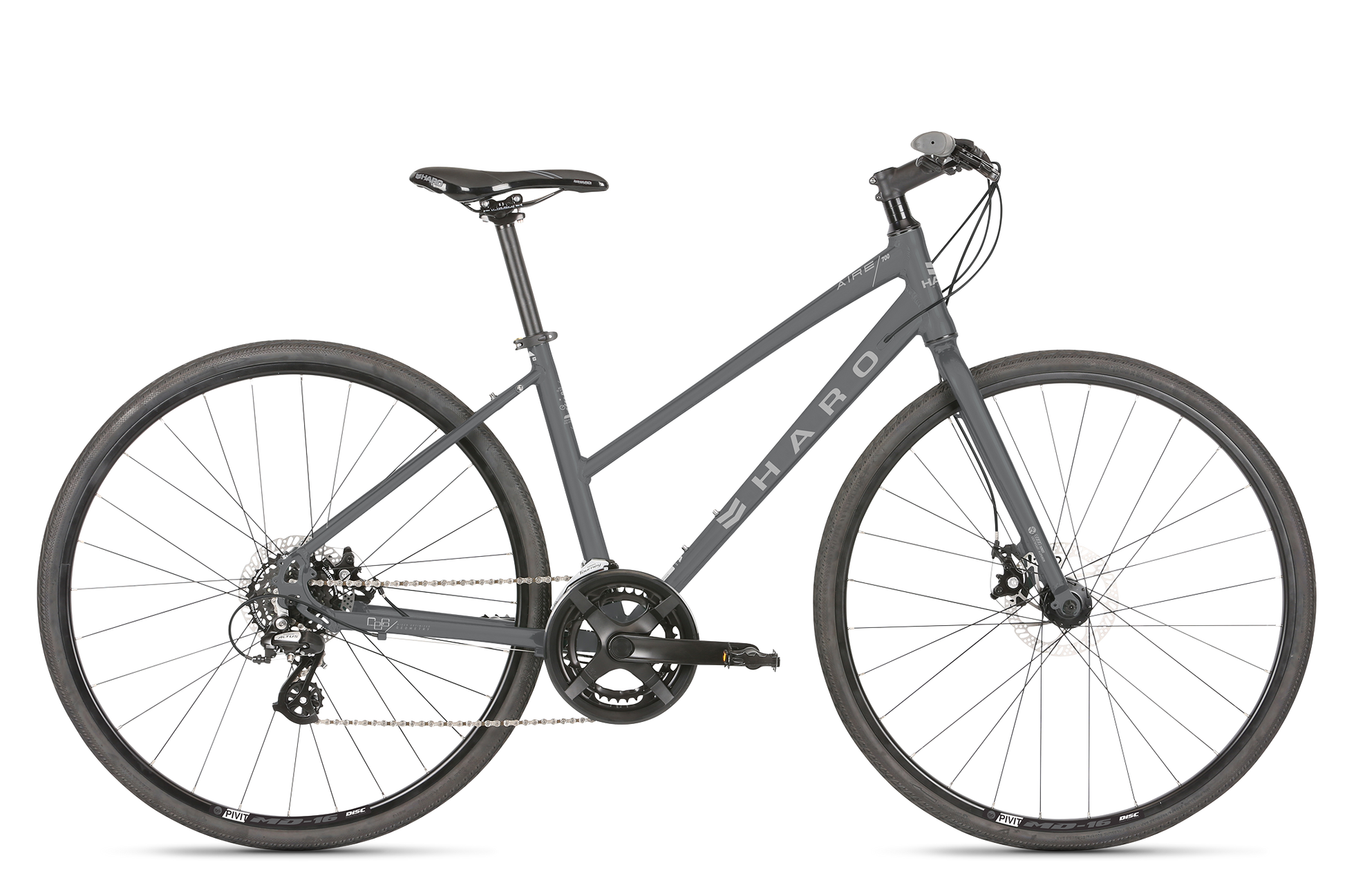

Aeras ST

$599.99

~~$599.99~~ $599.99

Sale Sold out

SKU: SKU:11651

Simple, straightforward, and streamlined in an efficiency-first manner. The Aeras ST combines the wide-range gearing of mountain bikes with the lightweight efficiency of road bikes, making this sport fitness bike one of the most sensible in Haro's lineup. Need a bike to just be a 'bike' without compartmentalizing itself into a specific, indecipherable niche? Look no further, the Aeras is a bike before anything else, and there's nothing wrong with that at all.

Sizing Guide

Size Table
Size	Inches	CM
XS ST	5' - 5'4"	152.5 - 162.5
S ST	5'3" - 5'7"	160 - 170

Color Charcoal Matte Muted Mint

Size XS S

View full details

COMPATIBLE RACKS & BASKETS

Rack Configuration 1

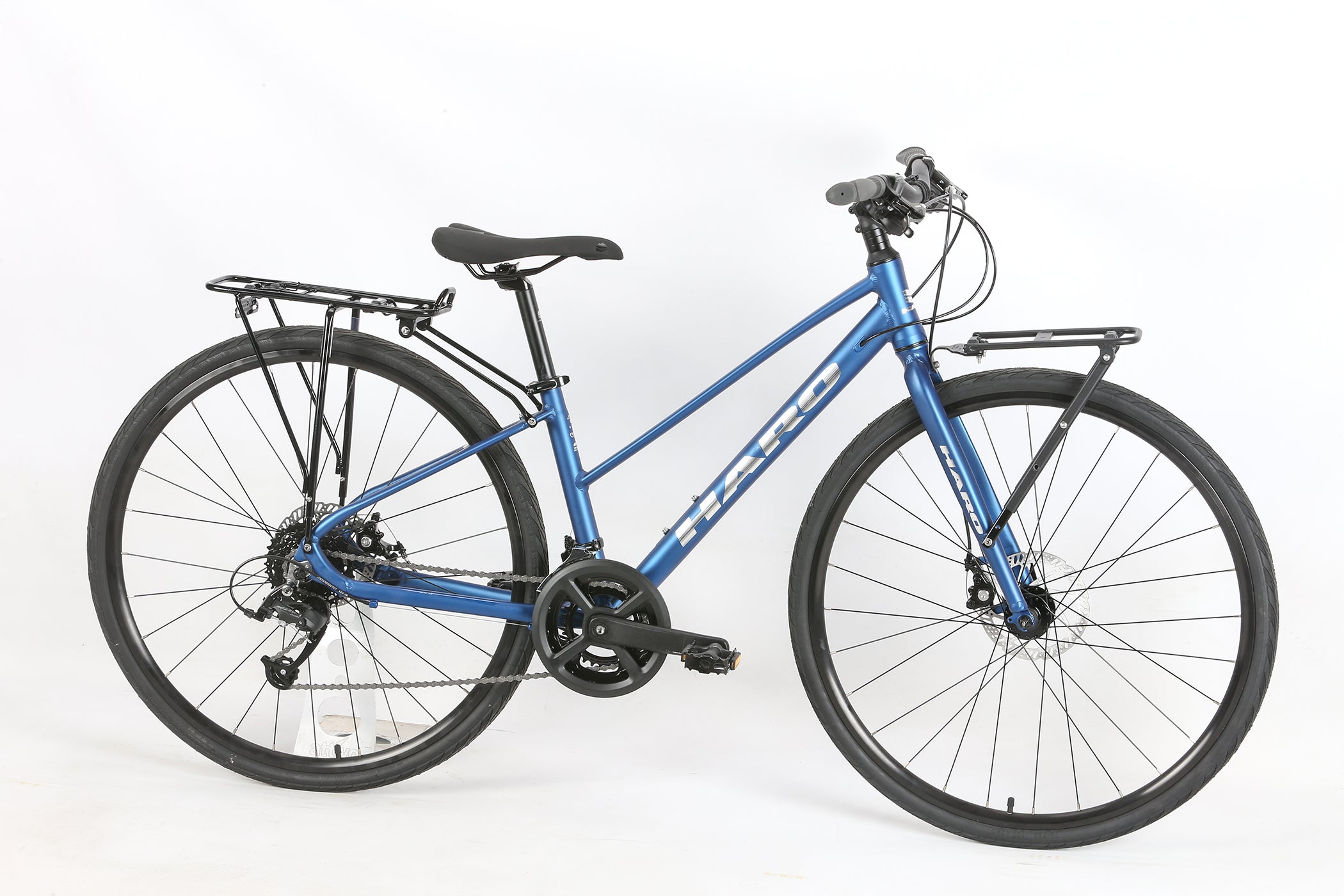

Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier. Compatible with Aeras ST
Shop Racks
Rack & Accessory Configuration 2

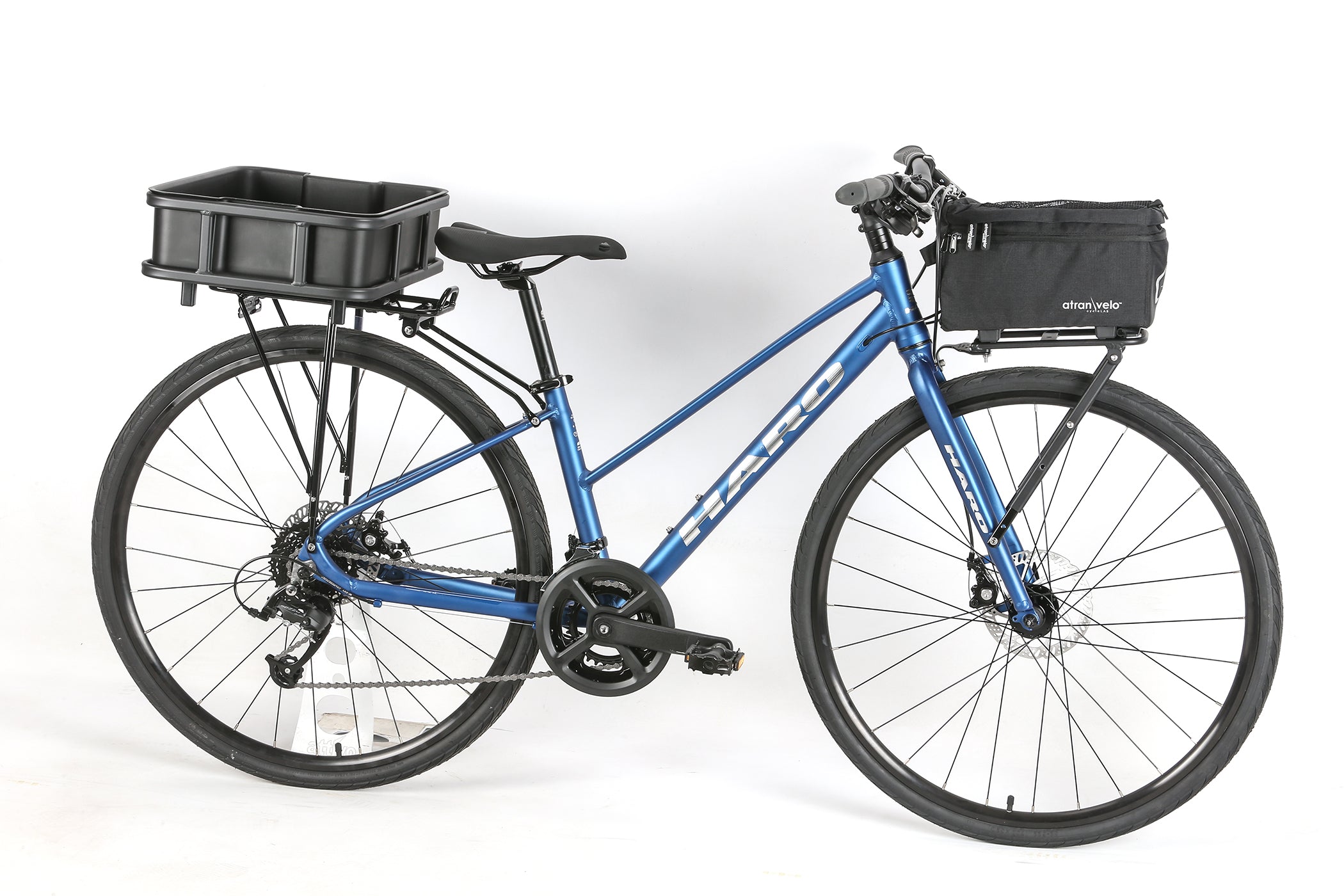

Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier with Bakery Crate & ZAP EASY Top Bag. Compatible with Aeras ST
Shop Crates & Bags
Rack & Accessory Configuration 3

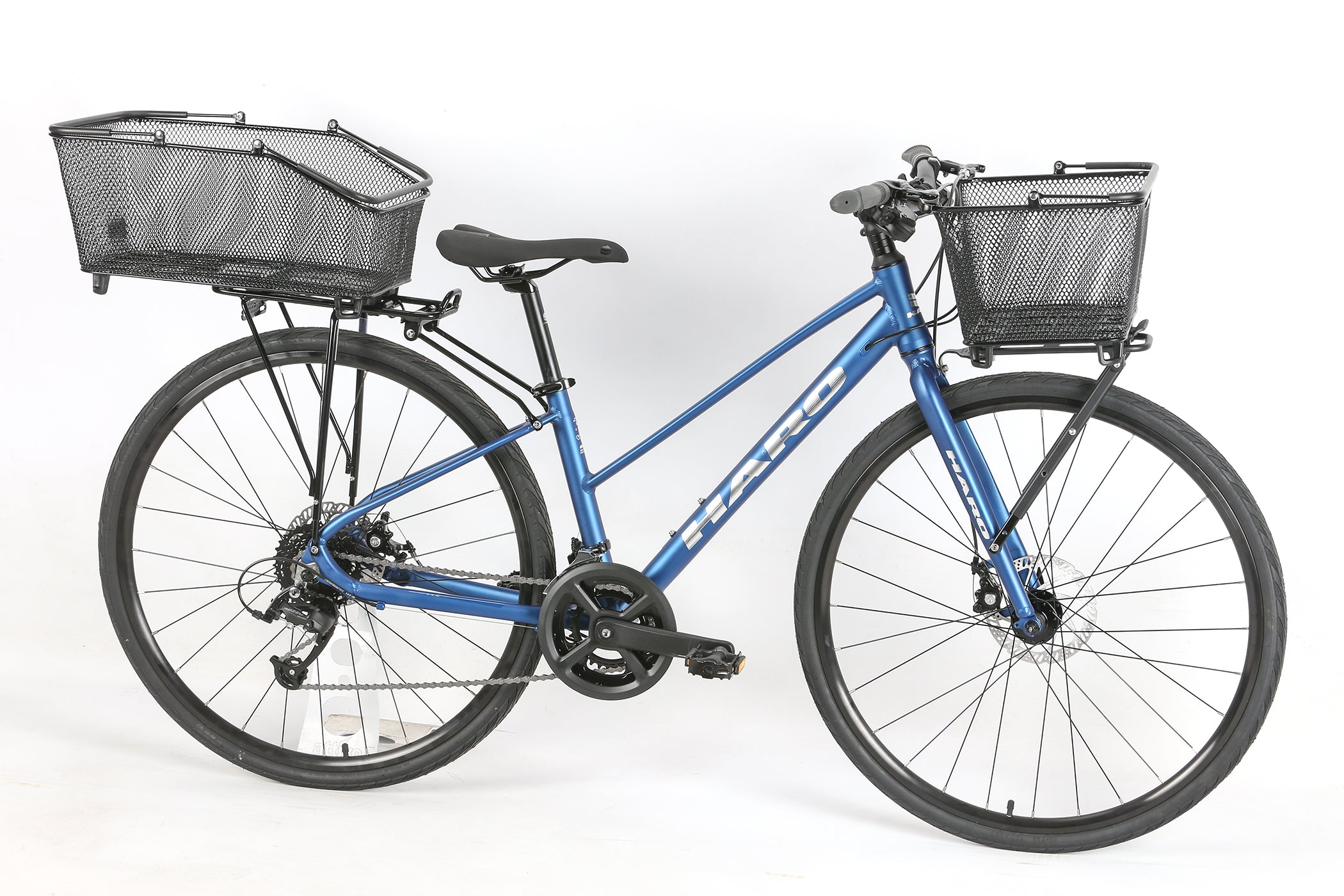

Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier with Dailey Large & Dailey Small Baskets. Compatible with Aeras ST
Shop Baskets

FEATURES

Heat-treated alloy frame makes for a lightweight bike
700 x 32 all purpose tire is quick on pavement and works for dirt paths as well
Name-brand Shimano drivetrain provides quality and shifting consistency
Neutral geometry provides efficient handling without discomfort
Double-wall, 28-hole alloy rims keep the weight down, but allow for off-pavement use
2 x 8 gearing resists wear through a thicker chain, while providing plenty of gearing range for both hills and flats
Alloy frame, wheels, and components stay rust free

SPECIFICATIONS

Specifications
FRAMESET

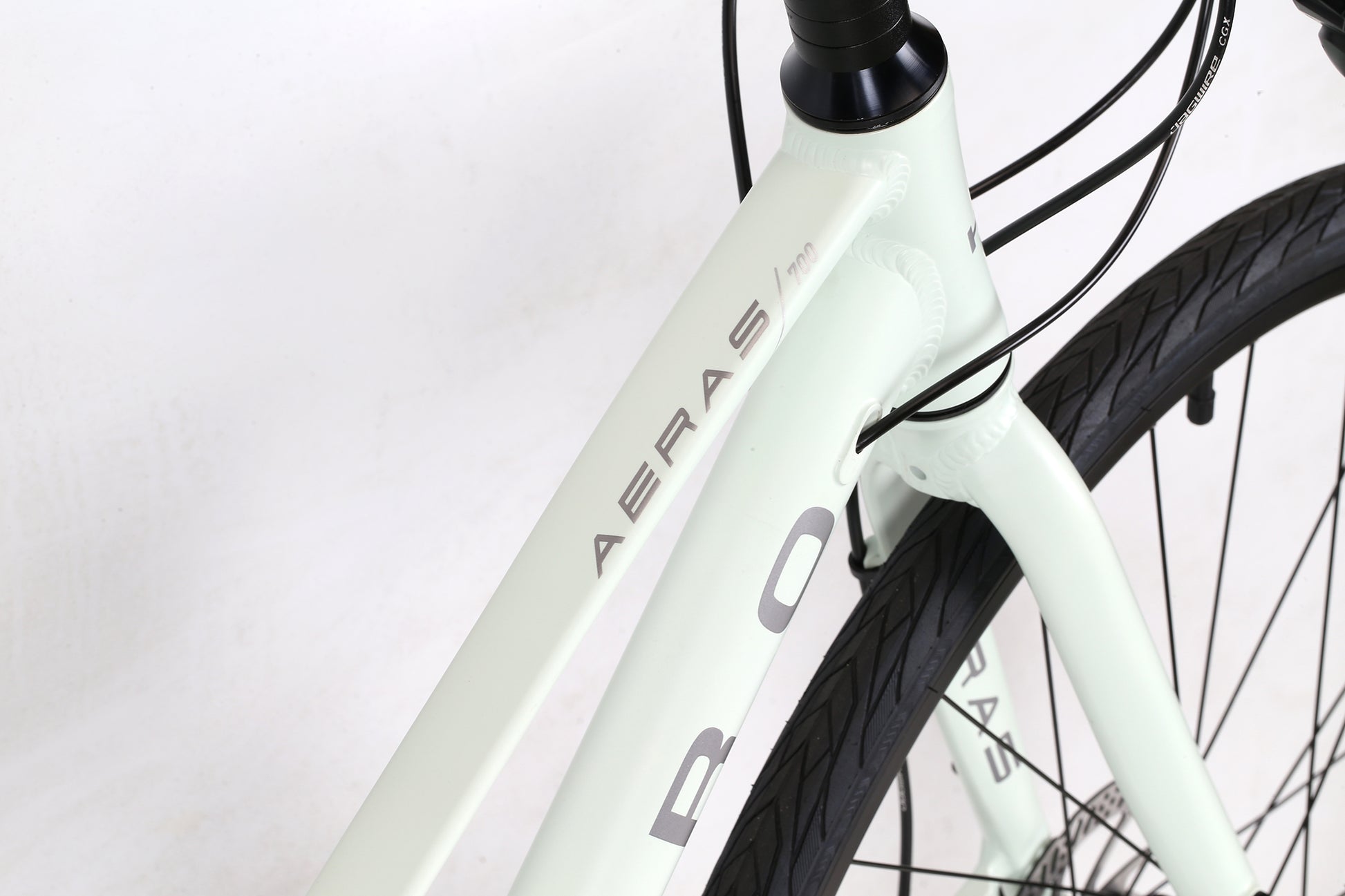

Frame	Haro Ventus Step Through \| Heat-treated 6061 aluminum \| Tig-welded construction \| Rider-tuned geometry \| 68mm threaded BSA bottom bracket shell \| Flat-mount disc brake mount \| Forged 135mm quick-release dropouts with replaceable derailleur hanger
Fork	Haro Ventus \| Classic steel \| flat mount disc \| 100mm quick-release spacing
Colors	Charcoal, Matte Muted Mint
Weight	27.5 lbs
DRIVETRAIN

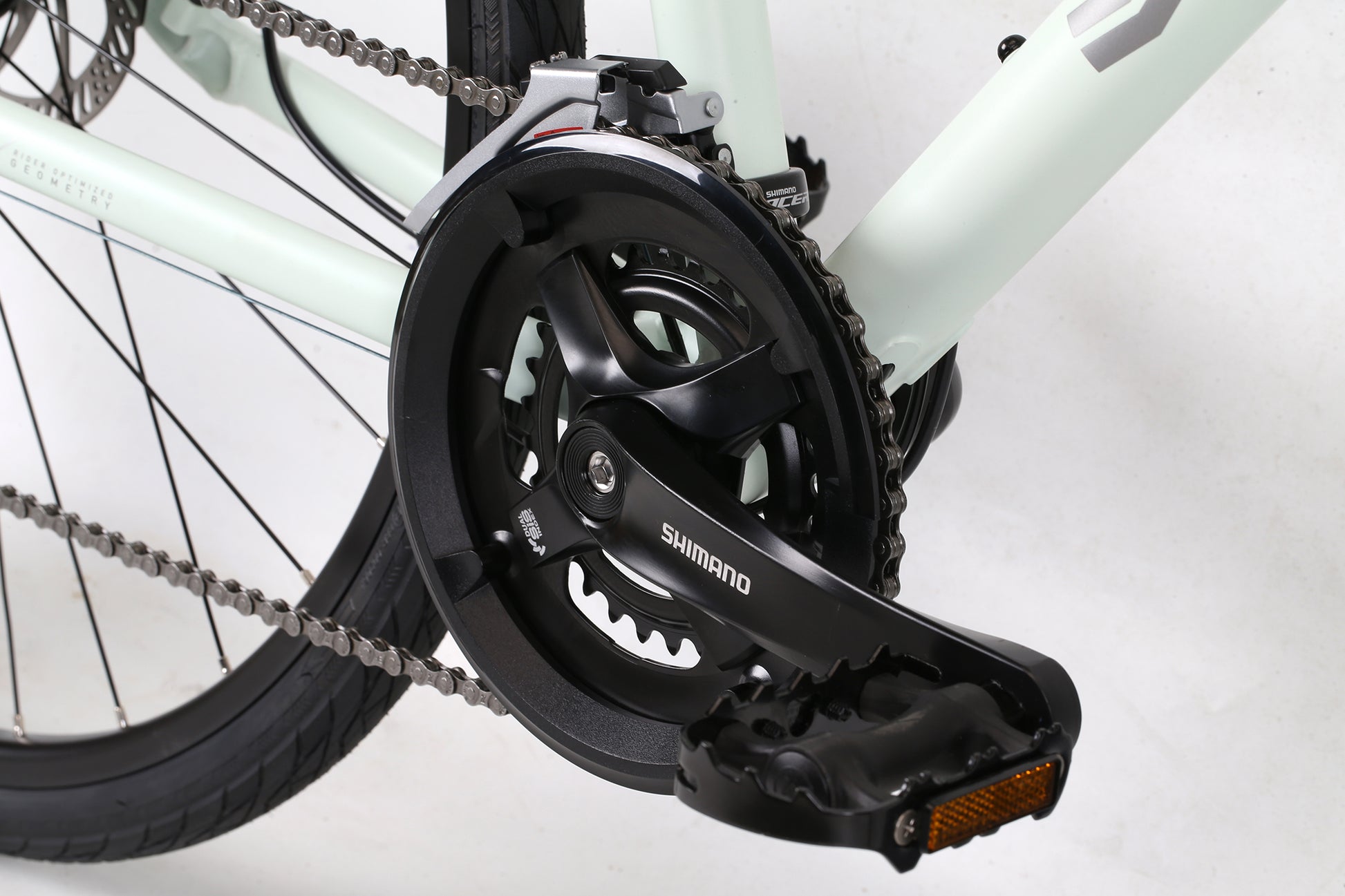

Cranks	Shimano TY-501 \| 46/30T \| 8-speed \| 170mm
Pedals	VP \| 990S \| Nylon body with steel cages \| Chromoly axles
Chain	KMC Z8.1 \| 8-speed
Bottom Bracket	Shimano UN101 \| Threaded BSA 68mm BB shell \| Square taper 122.5mm spindle (LL123) \| Sealed cartridge
Front Derailleur	Shimano Tourney FD-TY710 \| Top Swing \| 34.9mm band diameter

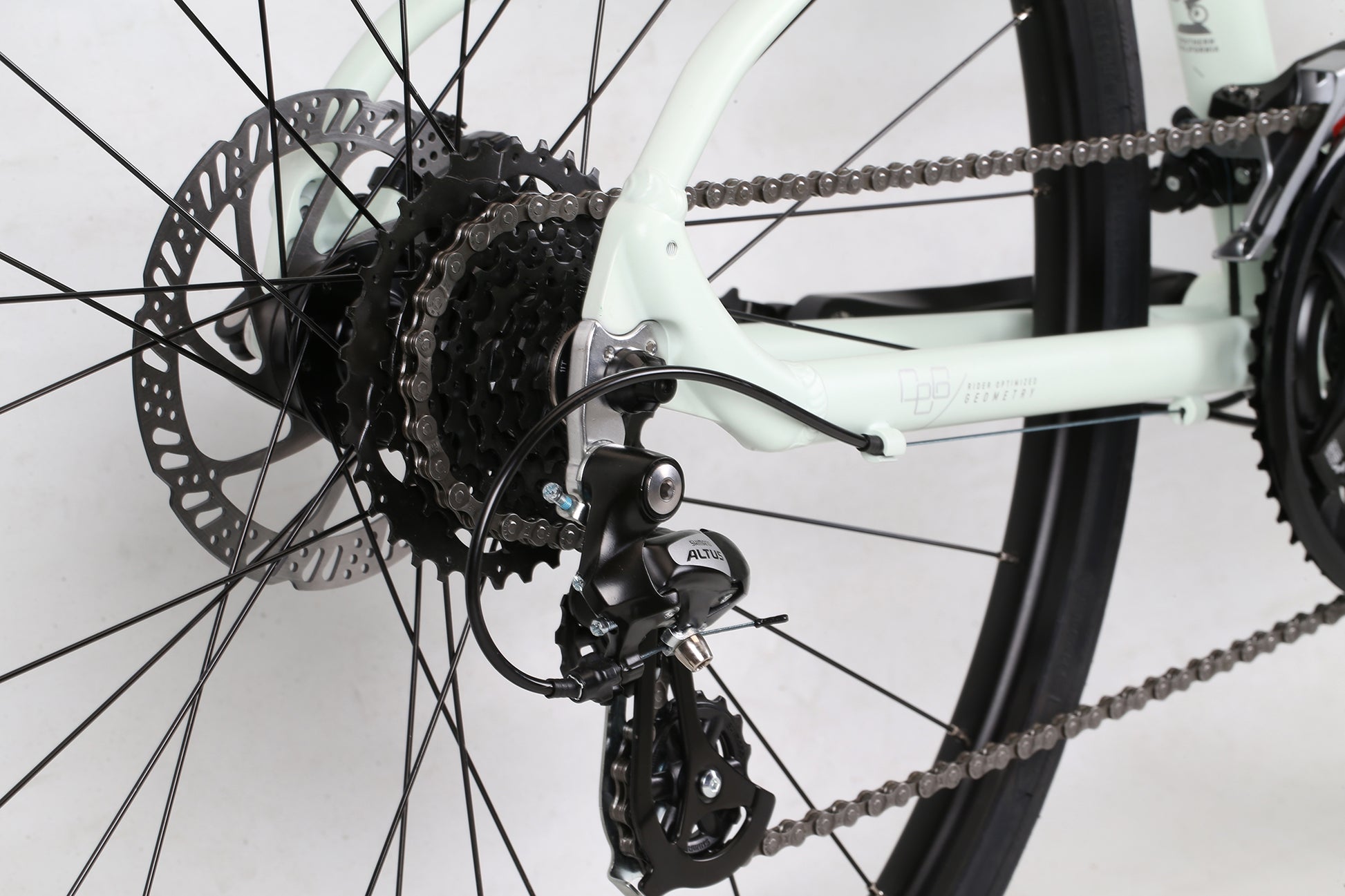

Rear Derailleur	Shimano Altus RD-M310-L \| 8-speed \| Direct attachment
Derailleur Shifter	Shimano SL-M315 \| 2 x 8-speed Rapidfire Plus \| Optical gear display
Freewheel/Cassette	Mid-range \| 8-speed \| 11-34T
WHEELS
Tires	Kestrel 700 x 32c All Weather tires
Wheels/Rims	Pivit Excelsior 700c \| Width (internal): 19mm \| 28h \| Alloy double wall \| disc-brake specifc
Front Hub	Pivit Roundabout \| Alloy shell \| 100mm quick-release \| I.S. 6-bolt disc \| 28h
Rear Hub	Pivit Roundabout \| Alloy shell \| 135mm quick-release \| I.S. 6-bolt disc \| 28h \| 8-speed
BRAKING SYSTEM
Brakes	Flat mount \| Adjustable mechanical disc \| I.S. 6-bolt rotors \| F: 180mm, R: 160mm
Brake Levers	Alloy \| 3-finger
OTHER COMPONENTS
Grips/Tape	Pivit Entonces \| Dual-density durometer \| Active tuned
Handlebar	Pivit Commander Bar \| Alloy \| 31.8mm \| 9° backsweep \| 620mm width
Stem	Pivit Maverick Stem \| Alloy \| Positive Positioning \| 7° rise \| 14": 75mm; 16": 90mm
Headset	Pivit Precision Plus \| 1-1/8" threadless \| Internal \| For 50mm OD headtube

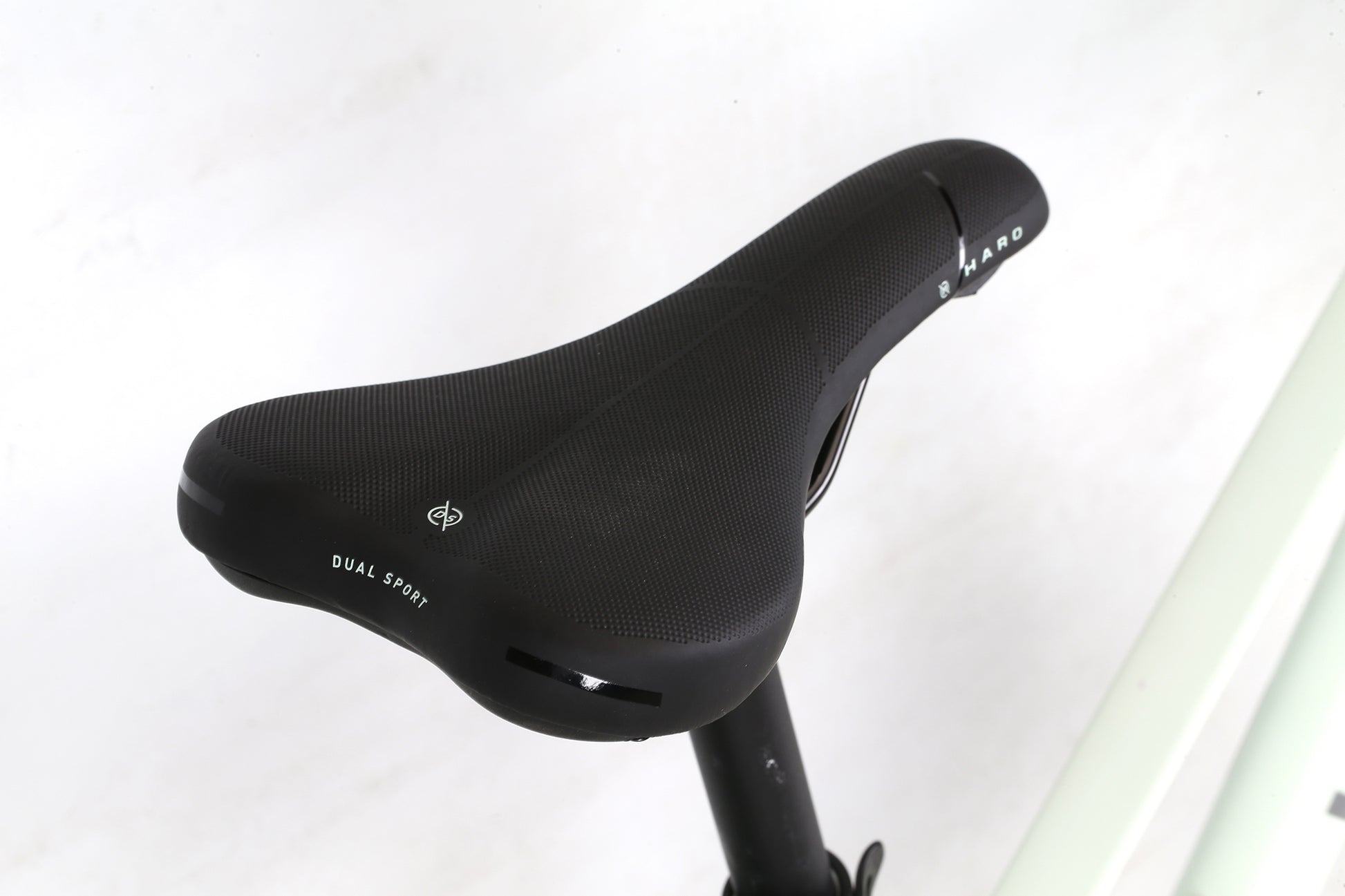

Saddle	Haro Rep Plus \| Dual-sport tuned padding \| Weather-resistant cover
Seat Post	Pivit Fixed Address \| Alloy \| Micro-adjust positioning \| 27.2mm x 350mm \| Zero-offset efficiency \| 2-bolt simplicity
Seat Clamp	Pivit Lockjaw \| Alloy \| 31.8mm \| Multi-throw design \| Quick release ease
Extras	Rack and fender mounts

GEOMETRY

Geometry & Sizing
SIZE	XS ST	S ST
A. Seat Tube (C-T)	356mm (14")	406mm (16")
B. Top Tube (Effective)	530mm (20.9")	541mm (21.3")
C. Head Tube Angle	69.5°	70°
D. Seat Tube Angle	74°	74°
E. Chainstay Length	445mm (17.5")	445mm (17.5")
F. BB Drop	60mm (2.4")	60mm (2.4")
G. Wheelbase	1043mm (41")	1050mm (41.3")
H. Head Tube Length	120mm (4.7")	140mm (5.5")
I. Standover	611mm (24")	620mm (24.4")
J. Stack Height	533mm (21")	554mm (21.8")
K. Reach	377mm (14.8")	382mm (15")
L. Fork Height	mm (")	mm (")
M. Fork Offset	45mm (1.8")	45mm (1.8")
N. Stem Length	75mm	95mm
O. Bar Width	620mm	620mm
P. Crank Length	170mm	170mm

SIZING GUIDE
Need help choosing a size? Read our guide on choosing the right size bike.
Learn More
CLICK, SHIP AND RIDE
Purchase your bike online and pickup at your nearest dealer
Learn More
PRODUCT REGISTRATION
Protect your investment by registering your bike.
Register now

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
